Description
Product Introduction & Engineering Value
When a production line suddenly loses dozens of sensor signals, the PLC processor is often blamed first. In reality, the digital input module is frequently the source of the problem. Loose terminals, damaged isolation circuits, or wiring mistakes can make an entire group of inputs appear offline.
The 1769-IQ32 provides a practical solution for machines with a large number of photoelectric sensors, proximity switches, pushbuttons, and auxiliary contacts. Its 32-point design reduces cabinet space while allowing engineers to consolidate discrete inputs into a single Compact I/O module.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Catalog Number | 1769-IQ32 |
| Product Family | 1769 Compact I/O |
| Module Type | Digital DC Input Module |
| Number of Inputs | 32 |
| Input Configuration | Sink/Source |
| Nominal Voltage | 24V DC |
| Operating Voltage | 10…30V DC (30°C), 10…26.4V DC (60°C) |
| Input Delay | 8 ms ON / 8 ms OFF |
| Isolation Voltage | 1200V AC for 1 s or 1697V DC for 1 s |
| Bus Current Draw | 170 mA @ 5V DC |
| Maximum Power Dissipation | 4.6 W |
| Wiring Groups | Four groups of 8 inputs |
| Mounting | DIN Rail or Panel |
| Approximate Dimensions | 118 × 52.5 × 87 mm |
| Approximate Weight | 440 g |
Technical specifications are based on Rockwell Automation technical documentation.
Field Application & The “Trench” Experience
During the expansion of a high-speed beverage packaging line, engineers added sixteen additional photoelectric sensors to improve carton tracking. The existing CompactLogix controller had sufficient processing capacity, but the original input module had reached its channel limit.
Rather than redesigning the control cabinet, the team installed a 1769-IQ32, redistributed the sensor wiring, and updated the I/O configuration in Studio 5000. Startup was completed during a planned maintenance window, and production resumed before the next shift.
Typical applications include:
- High-speed conveyor tracking using photoelectric sensors.
- Automated warehouse transfer systems monitoring limit switches and pallet sensors.
- Food processing packaging lines collecting digital status from safety interlocks, pushbuttons, and machine sensors.
Transparency SOP: QA & Testing
Every module undergoes documented inspection before shipment.
- ✓ Visual inspection — Verify catalog number, revision, housing condition, and connector integrity.
- ✓ Terminal verification — Inspect screw terminals and bus connector for wear or damage.
- ✓ Functional testing — Apply simulated 24V DC input signals to all 32 channels and verify status indication.
- ✓ Controller communication — Confirm recognition by a compatible CompactLogix test rack.
- ✓ Documentation — Record test results and classify the module as New Surplus or Refurbished before release.
- 1769-IQ32

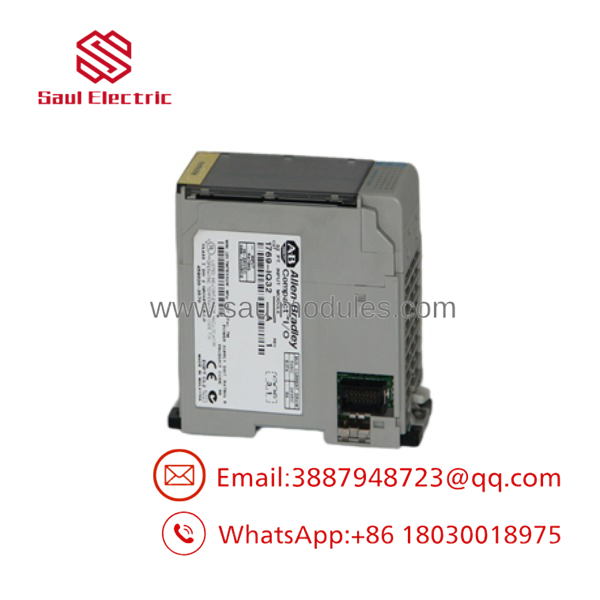

- 1769-IQ32
The Veteran’s Tech Trap Guide
⚠️ Don’t Mix Sink and Source Wiring
The 1769-IQ32 supports sink/source input wiring, but every input group must be wired correctly. Mixing wiring methods within the same group often leads to intermittent input faults.
⚠️ Watch the Power Supply Distance Rating
The module should not be installed beyond the supported distance from the Compact I/O power supply or controller. Ignoring this limitation can cause unpredictable communication issues in larger I/O assemblies.
PRO TIP: Label every eight-point input group during installation. Future maintenance becomes significantly easier when technicians can identify the correct common terminal without tracing individual wires.
Dynamic FAQ
Q1. What devices can be connected to the 1769-?
The module accepts 24V DC digital input signals from devices such as proximity sensors, photoelectric sensors, limit switches, selector switches, pushbuttons, and auxiliary relay contacts.
Q2. Is the 1769- compatible with CompactLogix controllers?
Yes. It is designed for the 1769 Compact I/O platform and is commonly used with CompactLogix controllers as well as supported MicroLogix 1500 configurations.
Q3. Does the module require configuration in Studio 5000?
Yes. The correct module profile should be added to the controller’s I/O configuration, and the slot assignment must match the physical installation.
Q4. Can the 1769- replace another 32-point input module directly?
In most applications, it can replace another 1769- if the hardware revision, wiring, and controller configuration are compatible. Always verify the terminal wiring before energizing the system.
Q5. How do you verify New Surplus authenticity?
Each unit is inspected for original manufacturer labeling, housing condition, connector integrity, successful communication with a CompactLogix controller, and correct operation of all 32 input channels before shipment.
Q6. Is the 1769- still supported?
Yes. Rockwell Automation lists the 1769- as an Active Mature product, making it suitable for maintaining existing Compact I/O installations while replacement options remain available.
