Allen-Bradley 2711-M3A18L1 PV300 Micro Monochrome HMI Terminal

Description

Product Introduction

The Allen-Bradley 2711-M3A18L1 is an ultra-compact PanelView 300 Micro operator interface engineered for space-constrained enclosures and standalone OEM equipment. Powered by an external 24V DC supply, this terminal features a 3-inch monochrome transflective LCD screen with LED backlighting, ensuring high contrast and readability under direct plant lighting. It communicates with MicroLogix, SLC 500, or CompactLogix controllers through an RS-232 point-to-point serial link using DF1 point-to-point or DH-485 protocols.

Designed for harsh industrial stations where touchscreens are impractical or easily damaged, the 2711-M3A18L1 incorporates a rugged membrane keypad. Featuring four reconfigurable function keys (F1-F4), arrow controls, and a dedicated numeric entry interface, operators can cycle through alarm conditions, input recipe setpoints, and issue manual jog commands while wearing heavy protective gloves.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A high-speed pallet wrapper drops out on a Friday evening because an operator smashed the display lens on a local 2711-M3A18L1 with a hand truck. The main MicroLogix 1200 PLC continues running, but without the local operator station, technicians cannot reset wrap tension limits or clear turntable orientation faults. Re-engineering the machine for a modern PanelView 800 would mean mounting panel cutouts, changing serial pinouts, and converting the software. Swapping in a pre-tested 2711-M3A18L1 allows the maintenance team to reconnect the 8-pin mini-DIN cable, apply 24V DC power, and restore full line operation in under 15 minutes.

• Standalone OEM Packaging – Form-Fill-Seal Equipment – Connects to MicroLogix controllers via DF1 serial to display cycle counts, heat bar temperatures, and film feed alarms.
• Chemical Dosing Skids – Metering Pump Stations – Mounts directly on small NEMA 4X pump enclosures to adjust injection rates and monitor stroke counts.
• Material Handling & Conveyors – Diverter Gate Local Control – Provides local start/stop and manual gate jog functions on distribution conveyor drops.
• Textile & Washing Systems – Commercial Laundry Skids – High-durability membrane keys withstand chemical splash, detergent residue, and gloved thumb presses.

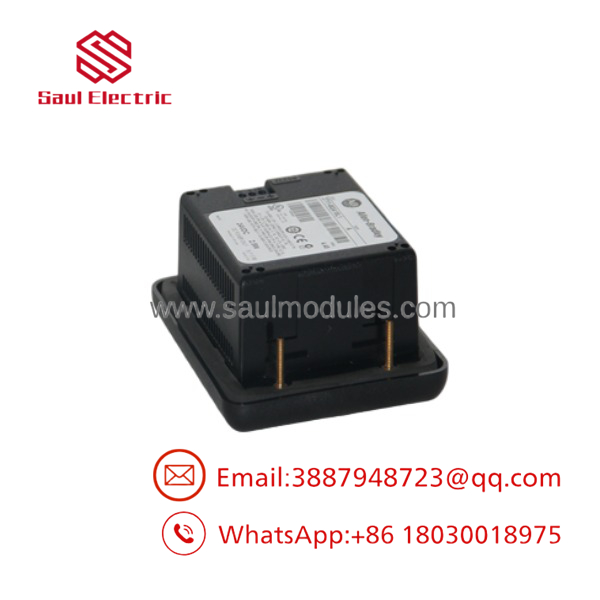

2711-M3A18L1

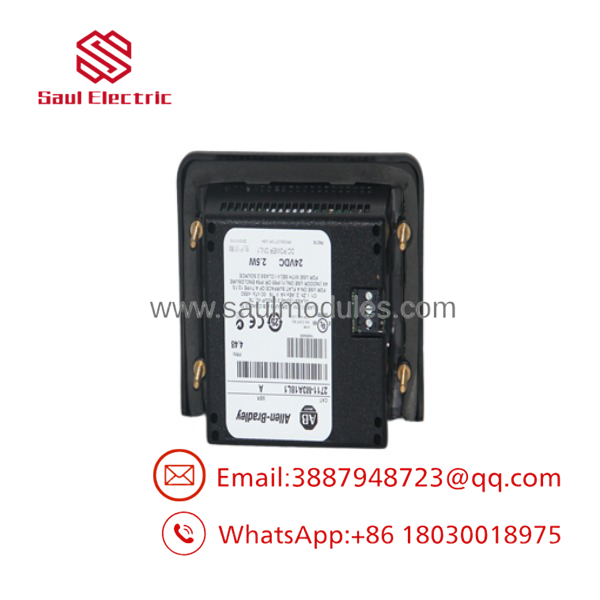

2711-M3A18L1

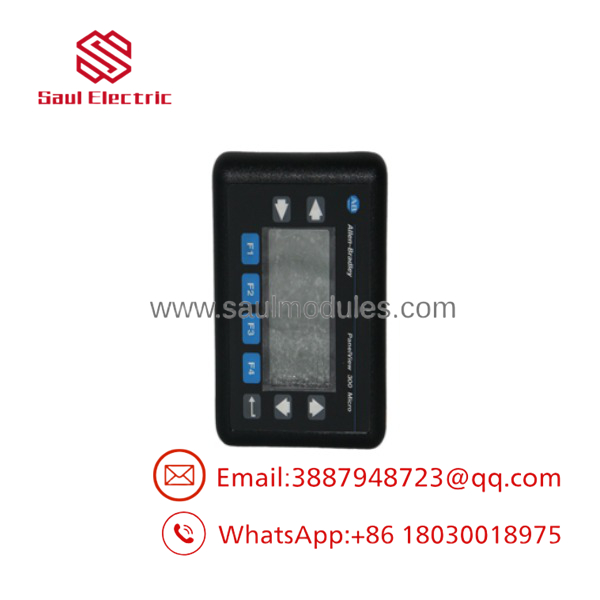

2711-M3A18L1

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Allen-Bradley racks before they leave our warehouse.

1. Inbound Inspection: Every unit undergoes a visual check for cracked screen glass, worn membrane keypads, damaged mounting latches, and pin corrosion inside the 8-pin mini-DIN port.
2. Live Rig Testing: The 2711-M3A18L1 is powered up with 24V DC and linked over an 1761-CBL-PM02 serial cable to a live MicroLogix 1100 controller running PanelBuilder32 test logic.
3. Keypad & Port Verification: We test all tactile keys (F1-F4, navigation arrows, Enter) for crisp contact closure while verifying DF1 baud rate negotiation (9600 to 19200) and handshakes.
4. Display & LED Burn-In: The unit undergoes a 4-hour burn-in test to verify backlight brightness, contrast response across temperature ranges, and display stability without pixel dead zones.
5. Final QC & Anti-static Packaging: The terminal is cleaned, wrapped in static-shielding film with front face protection, and packaged in reinforced custom foam boxes.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Serial Cable Pinout Pitfalls: The 8-pin mini-DIN port on the 2711- requires specific Allen-Bradley communication cables (e.g., 1761-CBL-PM02 for MicroLogix or 2711-NC13 for SLC/PC connections). Pinouts differ from standard commercial mini-DIN cables; using a generic cable will result in zero communication or port power short circuits.
• ❗ 24V DC Power Polarity Check: The “L1” designation indicates 24V DC operation. Applying 120V AC line power directly to the terminal block will blow the internal protective fuse and destroy the power supply circuit board instantly.
• ⚠️ DF1 Node Protocol Settings: If your PLC serial port is set for DH-485 mode instead of DF1 Full-Duplex, the terminal will fail to establish communication even if the baud rate matches. Verify communication driver parameters in RSLogix 500 / Studio 5000 before troubleshooting hardware.
• ❗ Contrast Adjustment Hotkey: If you power up a replacement unit and the screen appears completely dark or blank, do not assume it’s defective. Press the Left Arrow and Right Arrow keys simultaneously on power-up to enter the terminal setup menu and adjust the LCD contrast setting.

Frequently Asked Questions (FAQ for Conversion)

Q: What is the main difference between the 2711- and the 2711-K3A17L1?

A: Communication protocol and port type. The 2711- uses an RS-232 serial port (DF1/DH-485) via an 8-pin mini-DIN connector, whereas the 2711-K3A17L1 communicates over DeviceNet via a 5-pin terminal block.

Q: Can I program the 2711- using FactoryTalk View Studio?

A: No. Legacy PanelView 300 Micro terminals must be programmed using PanelBuilder32 software (.PVA files).

Q: Does the 2711- support touch screen input?

A: No. All PanelView 300 Micro terminals are keypad-only interfaces (4 tactile function keys + navigation controls). There are no touch-screen versions in the PanelView 300 Micro series.

Q: Is the backlight inside the 2711- field-replaceable?

A: No. The solid-state LED backlight in the 2711- is integrated into the display housing and is non-replaceable. However, its LED design yields a service life exceeding 100,000 hours.

Q: What warranty coverage do you offer on surplus legacy HMIs?

A: We back all New Surplus and reconditioned 2711- units with a full 12-month replacement warranty from the invoice date. If the unit fails under normal operating conditions within a year, we send a replacement or issue a full refund.
