Description
Product Introduction & Engineering Value
Control system failures involving the PLC processor can bring an entire production cell to a standstill. When the controller also contains integrated I/O, replacing it with the correct catalog number becomes even more important because the processor and field wiring are tied to the same hardware platform.
The 1769-L23EQBFC1B was developed for compact machine automation where panel space is limited but integrated digital and analog control is required. Its built-in I/O eliminates the need for several separate expansion modules while maintaining compatibility with the CompactLogix programming environment.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Catalog Number | 1769-L23EQBFC1B |
| Product Family | CompactLogix 1769 |
| Controller Type | Integrated Compact PLC |
| User Memory | 512 KB |
| Digital Inputs | 16 × 24V DC |
| Digital Outputs | 16 × 24V DC |
| Analog Inputs | 4 |
| Analog Outputs | 2 |
| High-Speed Counters | 4 |
| Power Supply | 24V DC |
| Programming Software | RSLogix 5000 / Studio 5000 (supported revisions) |
| Expansion I/O | Supports 1769 Compact I/O expansion modules |
| Communication | Dual serial communication ports |
| Mounting | DIN Rail or Panel |
| Product Lifecycle | Discontinued |
| Recommended Replacement | 1769-L24ER-QBFC1B |
Technical specifications are derived from Rockwell Automation documentation.
Field Application & The “Trench” Experience
An OEM conveyor integrator was called to a distribution center after an aging sorter repeatedly stopped during peak shipping hours. The original CompactLogix controller had developed intermittent hardware faults, causing several embedded outputs to drop unexpectedly.
Fortunately, the maintenance department had archived the RSLogix project. After installing a tested 1769-L23EQBFC1B, verifying the firmware revision, and restoring the application, the conveyor system resumed normal operation without rewiring the panel. Because the controller included onboard analog and digital I/O, replacing it with the identical catalog number significantly reduced commissioning time.
Typical applications include:
- Automated warehouse conveyor and sortation systems
- Packaging machinery with integrated analog process control
- Water treatment pump stations using mixed digital and analog I/O

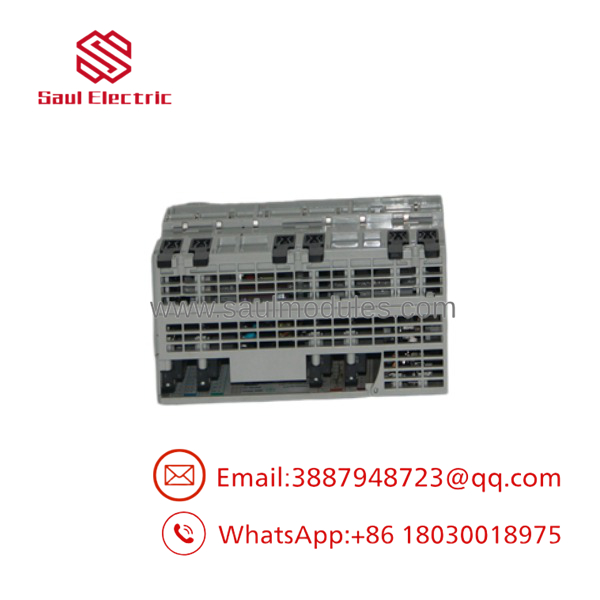

- 1769-L23EQBFC1B

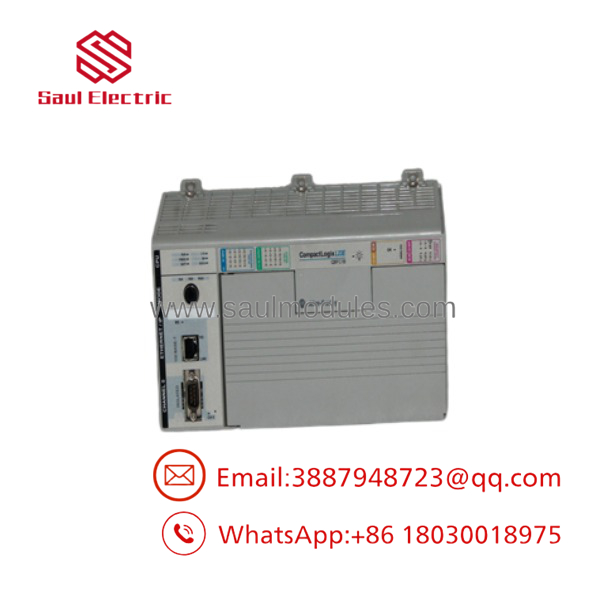

- 1769-L23EQBFC1B

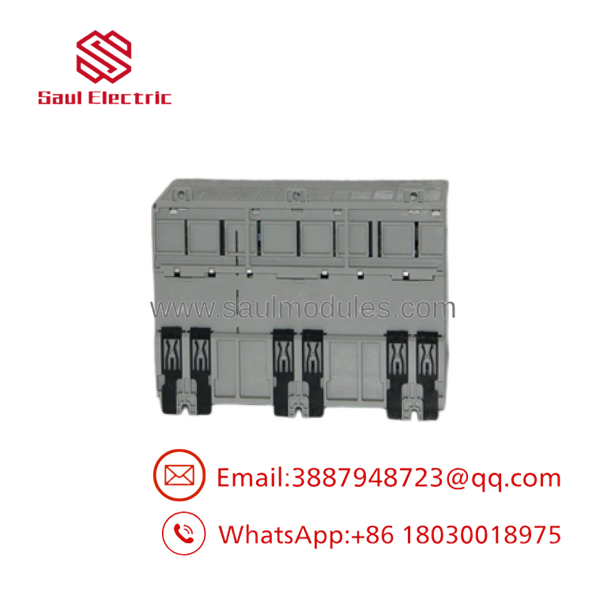

- 1769-L23EQBFC1B
Transparency SOP: QA & Testing
Every controller is subjected to a documented verification process before shipment.
- Verify the catalog number, hardware revision, and manufacturer identification.
- Inspect the enclosure, terminal blocks, communication ports, and connector interfaces.
- Install the controller on a CompactLogix test bench and confirm successful startup.
- Test embedded digital inputs, digital outputs, analog inputs, analog outputs, and high-speed counter functionality.
- Verify memory retention and controller diagnostics.
- Record all inspection and functional test results before inventory approval.
New Surplus inventory is inspected for unused physical condition, while refurbished units complete additional functional testing and extended power-on verification.
The Veteran’s Tech Trap Guide
⚠️ Firmware Revision Should Be Verified Before Downloading the Project
Different firmware revisions may require project conversion. Attempting to download an incompatible application can delay commissioning.
⚠️ Don’t Assume Embedded I/O Addressing Is Identical
If replacing the controller with a different CompactLogix model, review all embedded I/O assignments. Changes in hardware architecture can affect the application.
PRO TIP: Before removing the original controller, back up the complete project, including communication settings, analog scaling parameters, and any stored recipes. Recovering those values after a hardware failure is often more difficult than replacing the controller itself.
Dynamic FAQ
Q1. What type of controller is the 1769-?
It is a CompactLogix packaged controller with integrated digital inputs, digital outputs, analog inputs, analog outputs, and high-speed counters designed for compact machine control.
Q2. Is the 1769- still manufactured?
No. Rockwell Automation discontinued this controller on June 30, 2016. The recommended engineering replacement is the 1769-L24ER-QBFC1B.
Q3. Can I replace the controller without modifying the PLC program?
In many cases, yes, when replacing it with the same catalog number and compatible firmware revision. If migrating to a newer controller, hardware verification and project validation are recommended.
Q4. Which programming software supports this controller?
The controller is programmed using RSLogix 5000 or compatible versions of Studio 5000 Logix Designer, depending on the installed firmware revision.
Q5. How is New Surplus inventory authenticated?
Each controller is verified for catalog number, hardware revision, communication functionality, embedded I/O operation, memory retention, and successful startup before shipment.
Q6. What should be checked before installing a replacement controller?
Verify the firmware revision, backup the original project, document Ethernet or serial communication settings, confirm embedded I/O wiring, and validate the application before returning the machine to production.
