Description
Product Introduction & Engineering Value
A production line can continue running even if an analog output begins drifting, but the process quality often tells a different story. Valves fail to reach the commanded position, variable frequency drives respond inconsistently, and operators spend hours tuning loops that previously required little attention.
The 1769-OF2 is designed for applications where accurate analog control is essential. Each channel can be configured independently for voltage or current output, allowing a single module to operate multiple field devices with different signal requirements while maintaining stable output performance.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Catalog Number | 1769-OF2 |
| Product Family | 1769 Compact I/O |
| Module Type | 2-Channel Analog Output Module |
| Number of Outputs | 2 Single-Ended Outputs |
| Supported Voltage Outputs | ±10V, 0–10V, 0–5V, 1–5V DC |
| Supported Current Outputs | 0–20 mA, 4–20 mA |
| Resolution | 14-bit (Unipolar), 14-bit + Sign (Bipolar) |
| Converter Type | Sigma-Delta |
| Bus Current Draw | 120 mA @ 5V DC; 120 mA @ 24V DC |
| Isolation Voltage | 500V AC (qualification), output group to bus |
| Output Protection | Open-circuit, short-circuit, and overvoltage protection |
| Output Response Time | Approximately 2.9 ms |
| Mounting | DIN Rail or Panel |
| Approximate Dimensions | 118 × 35 × 87 mm |
| Approximate Weight | 300 g (0.65 lb) |
Technical values are based on Rockwell Automation technical data and user documentation.
Field Application & The “Trench” Experience
During the commissioning of a wastewater treatment upgrade, operators noticed that a control valve continuously oscillated despite repeated PID tuning. The actuator, positioner, and pneumatic supply all tested within specification.
The maintenance engineer eventually connected a calibrated meter directly to the PLC output and discovered that one analog channel had been damaged by an external wiring fault. After replacing the 1769-OF2 and recalibrating the loop, the valve stabilized immediately and process fluctuations disappeared.
Typical application scenarios include:
- Variable Frequency Drive (VFD) speed reference using 0–10V or 4–20 mA control signals.
- Steam pressure control valves requiring precise analog positioning.
- Chemical dosing skid flow regulation through proportional valve control.

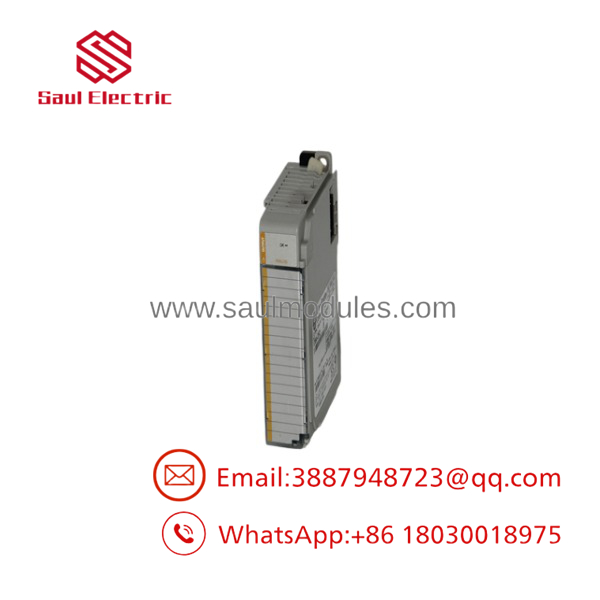

- 1769-OF2

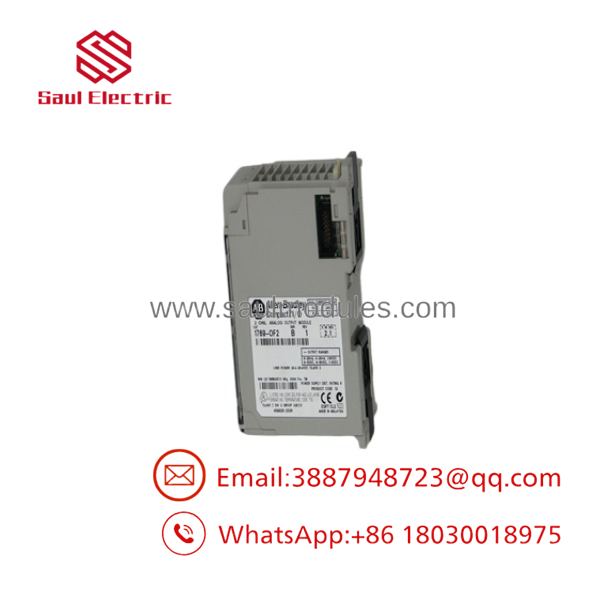

- 1769-OF2
Transparency SOP: QA & Testing
Every 1769-OF2 module completes a documented inspection before entering inventory.
- Verify the catalog number, hardware revision, and manufacturer identification.
- Inspect the enclosure, terminal block, and Compact I/O bus connector.
- Install the module in a CompactLogix test chassis.
- Measure voltage and current outputs on both channels using calibrated instrumentation.
- Verify channel configuration, communication, diagnostics, and isolation performance.
- Record all functional test results before labeling the unit as New Surplus or Refurbished.
The Veteran’s Tech Trap Guide
⚠️ Verify the Output Mode Before Connecting Field Wiring
Each channel can be configured for either voltage or current output. Connecting a 4–20 mA device to a channel configured for 0–10V can result in improper operation without indicating a module fault.
⚠️ Pay Attention to the External 24V Power Selection
Series B and later modules support an optional external Class 2 24V DC supply. Incorrectly configuring the power selection can lead to commissioning issues, especially when driving external analog loads. Community discussions frequently identify this setting as an overlooked startup detail.
PRO TIP: Before replacing an analog output module, measure the signal directly at the output terminals with the field wiring disconnected. Many apparent module failures are ultimately traced to shorted field cables, damaged actuators, or improperly wired analog inputs rather than the PLC hardware itself.
Dynamic FAQ
Q1. What analog signals does the 1769-OF2 support?
Each channel can be configured for ±10V, 0–10V, 0–5V, 1–5V, 0–20 mA, or 4–20 mA output, allowing the module to control a wide range of industrial field devices.
Q2. Can the two output channels use different signal types?
Yes. Each channel is independently configurable, so one output may operate in voltage mode while the other uses current mode.
Q3. Which controllers are compatible with the 1769-OF2?
The module is designed for the 1769 Compact I/O platform and is commonly used with CompactLogix controllers and supported MicroLogix 1500 systems equipped for 1769 expansion I/O.
Q4. Does the module include output protection?
Yes. The 1769-OF2 provides open-circuit detection, short-circuit protection, and output overvoltage protection, helping reduce the risk of damage during field wiring faults.
Q5. How is New Surplus inventory authenticated?
Every unit undergoes catalog verification, physical inspection, communication testing, and calibrated voltage/current output testing on both analog channels before shipment.
Q6. What is the most common commissioning mistake?
One of the most frequent issues is selecting the wrong output type during configuration or incorrectly wiring the optional external 24V supply. Both can produce incorrect analog signals even though the module itself is functioning normally.
