Product Introduction & Engineering Value
Electrical noise is one of the most overlooked causes of unstable analog control. When multiple variable frequency drives, servo amplifiers, or large motors share the same control cabinet, small ground potential differences can distort voltage output signals and create difficult-to-diagnose process problems.

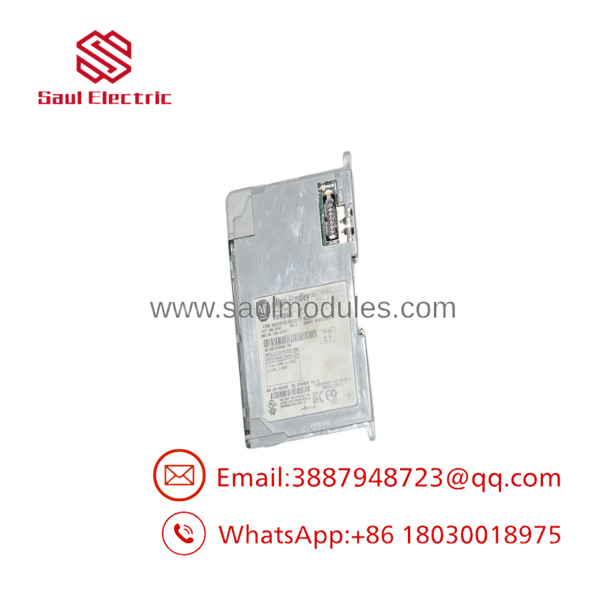

The 1769-OF4VI addresses this challenge by providing four individually isolated voltage output channels. Each channel can independently deliver precision analog voltage references to drives, valve positioners, and instrumentation without allowing one circuit to influence another, making it well suited for demanding industrial control applications.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Catalog Number | 1769-OF4VI |
| Product Family | 1769 Compact I/O |
| Module Type | Analog Voltage Output Module |
| Number of Outputs | 4 individually isolated differential outputs |
| Output Ranges | ±10V DC, 0–10V DC, 0–5V DC, 1–5V DC |
| Full-Scale Range | ±10.5V, -0.5…10.5V, -0.5…5.25V, 0.5…5.25V |
| Resolution | 15 bits plus sign (bipolar) |
| Isolation | 500V AC (710V DC qualification) between outputs and backplane |
| Bus Current Draw | 145 mA @ 5V DC, 120 mA @ 24V DC |
| Conversion Rate | 120 ms (all channels maximum) |
| Step Response | <2.9 ms to 63% |
| Maximum Output Load Current | 5 mA per channel |
| Minimum Load Resistance | ≥2 kΩ |
| Maximum Capacitive Load | 1 μF |
| Mounting | DIN Rail or Panel |
Technical specifications are based on the latest Rockwell Automation technical documentation.
Field Application & The “Trench” Experience
A chemical blending skid repeatedly produced inconsistent batches even though every PID loop appeared correctly tuned. Operators noticed that the valve positions drifted slightly whenever a nearby motor control center started several large pumps.
After several hours of troubleshooting, engineers isolated the issue to shared analog output wiring that introduced electrical noise into the control signals. Replacing the existing output hardware with a 1769-OF4VI, which provides channel-by-channel isolation, eliminated the interference. The valve positioners immediately stabilized, and the process returned to normal without modifying the PLC program.
Typical application scenarios include:
- Reactor feed valve positioning in specialty chemical production.
- Variable frequency drive speed reference for synchronized conveyor systems.
- Precision tension control on continuous web handling and coating equipment.
- 1769-OF4VI
Transparency SOP: QA & Testing
Before shipment, every module completes a documented inspection procedure.
- Verify the catalog number, hardware revision, and manufacturer markings.
- Inspect the enclosure, backplane connector, and terminal assembly for mechanical damage.
- Install the module in a CompactLogix test chassis.
- Measure each voltage output using calibrated laboratory instruments across all supported output ranges.
- Verify channel isolation, controller communication, diagnostics, and output stability.
- Record inspection results before classifying the unit as New Surplus or Refurbished.
The Veteran’s Tech Trap Guide
⚠️ Isolation Doesn’t Eliminate Poor Wiring Practices
Individual channel isolation reduces ground-loop problems, but proper cable routing and shield termination remain essential. Running analog wiring alongside motor power cables can still introduce unwanted noise.
⚠️ Verify the Configured Voltage Range
A field device expecting a 1–5V signal will not respond correctly if the channel is configured for ±10V. Always compare the PLC configuration with the instrument specifications before commissioning.
PRO TIP: Measure the analog output directly at the module terminals before replacing expensive field devices. Many “failed valve positioners” are ultimately traced to configuration errors, damaged signal wiring, or incorrect scaling rather than a defective output module. The module also does not require field calibration under normal operation, reducing maintenance requirements.
Dynamic FAQ
Q1. What signals does the 1769-OF4VI generate?
The module supports ±10V DC, 0–10V DC, 0–5V DC, and 1–5V DC analog voltage outputs. Each channel can be configured independently.
Q2. Why are individually isolated outputs important?
Individual isolation minimizes electrical interference and ground-loop effects between channels, improving signal integrity in systems with multiple analog devices or high electrical noise.
Q3. Is the 1769-OF4VI compatible with CompactLogix controllers?
Yes. It is designed for the 1769 Compact I/O platform and is fully compatible with supported CompactLogix and Compact GuardLogix systems.
Q4. Does the module require periodic calibration?
No. Rockwell Automation specifies that field calibration is not required for normal operation.
Q5. How is New Surplus inventory authenticated?
Each module is inspected for original manufacturer identification, physical condition, communication performance, output accuracy, and isolation functionality before shipment.
Q6. What is the most common commissioning mistake?
The most common issue is incorrect channel configuration or improper grounding of analog circuits. Engineers should verify the selected voltage range, wiring polarity, shield termination, and load impedance before concluding that the module has failed.
