Allen-Bradley 1769-OF8C High-Density 8 Channel Analog Current Module

Description

Product Introduction

The Allen-Bradley 1769-OF8C is an 8-channel high-density analog current output expansion module designed for CompactLogix control systems and MicroLogix 1500 processors. By doubling the output channel density of the standard 4-channel 1769-OF4 module while maintaining a single-slot footprint, it delivers an ideal solution for process automation applications requiring extensive current loop signaling.

Engineered specifically for current loop applications, the 1769-OF8C supports both 0 to 20mA and 4 to 20mA output ranges across 8 individually configurable channels. With high 16-bit D/A conversion accuracy, onboard open-wire loop detection, and wire-saving density, it serves as an efficient analog control hub for field instrumentation arrays.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

The Trench Story

It is 10:30 PM on a water treatment plant chemical dosing upgrade. Panel space is severely limited, and you need to control 8 separate peristaltic pump speed commands via 4 to 20mA current loops. Using two standard 4-channel 1769-OF4 cards would exceed the local expansion bank footprint and push your power supply past its 5-slot distance limit. Dropping in a single high-density 1769-OF8C gives you all 8 current outputs in a single slot. Its onboard open-circuit detection immediately alerts the SCADA system if a field wire breaks during commissioning, letting you land all 8 dosing channels cleanly in half the panel width.

Specific Applications

• Multi-Pump Chemical Dosing: Delivers independent 4 to 20mA speed commands to chemical feed pumps in water and wastewater treatment facilities.
• VFD Speed Command Banks: Controls speed references across banks of variable frequency drives on continuous process conveyor systems.
• Proportional Flow Control Valving: Drives multiple modulating control valve positioners across steam and liquid manifold skids.
• Multi-Zone Burner Management: Coordinates fuel and air damper actuators on multi-burner industrial furnaces.

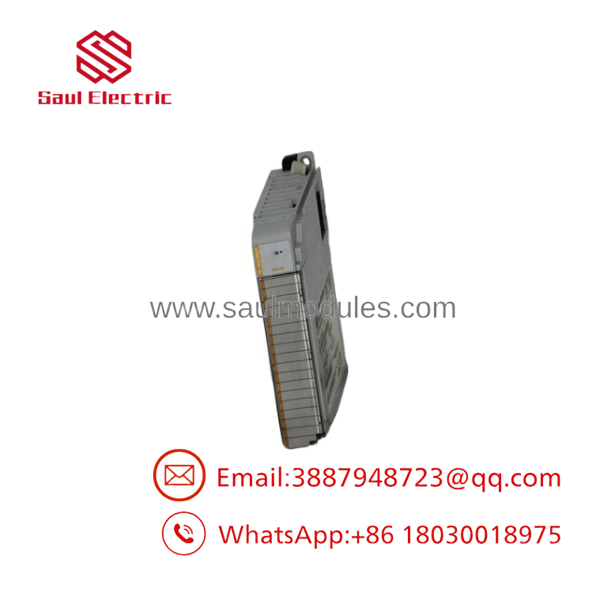

1769-OF8C

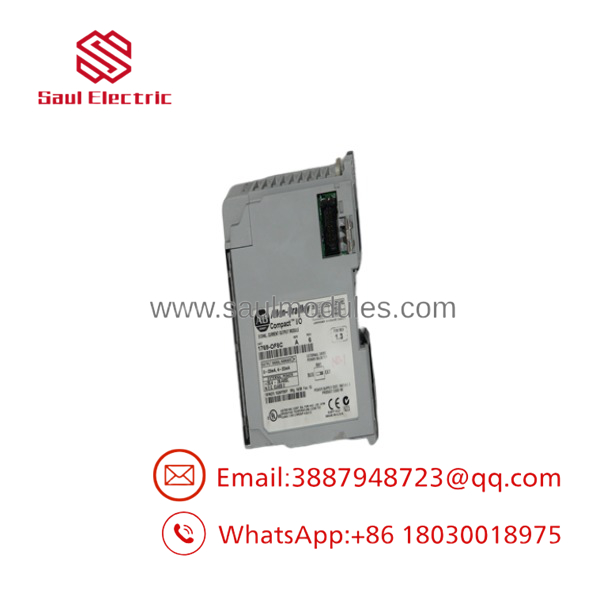

1769-OF8C

Transparency SOP: Quality Assurance & Testing

Every 1769-OF8C module undergoes a thorough quality audit and precision loop test prior to shipment:

1. Physical & Terminal Block Inspection: We inspect side backplane locking latches, check bus connector pins, and verify the removable 18-pin terminal block (1769-RTBN18) for secure wiring contact clips.
2. Backplane & Power Up Verification: The module is installed in a CompactLogix test rack with external 24VDC auxiliary power connected to confirm DC-DC converter stability and module recognition in Studio 5000.
3. 8-Channel Calibrated Signal Sweep: Using a Fluke process calibrator, each of the 8 channels is driven to 0mA, 4mA, 12mA, and 20mA steps in Studio 5000 to verify register accuracy within \pm 0.1\%.
4. Load Impedance Stress Test: We test channels under max rated loop resistance (500\,\Omega) to verify current output drivers maintain regulation without thermal throttling.
5. Open-Wire Fault Diagnostics Test: We simulate open-loop conditions on each channel to verify that the module properly sets its open-wire diagnostic flags in the controller data table.

The Veteran’s Tech Trap Guide

• ⚠️ Current Only — No Voltage Signal Support: Unlike the universal 1769-OF4 (which supports both voltage and current), the 1769- is a current-only module. It CANNOT generate 0 to 10V or \pm 10V signals. If your field devices require voltage control, you must use the 1769-OF8V (voltage-only) or 1769-OF4 module instead.
• ❗ External 24VDC Power Supply Required: The 1769- requires external 24VDC connected to its terminal block to power the loop drivers. If you forget to connect 24V auxiliary power, all 8 channels will output 0mA regardless of software settings.
• ⚠️ Mind the 500 \Omega Maximum Load Limit: Each current output channel can drive up to a maximum load impedance of 500\,\Omega. Exceeding 500\,\Omega on a loop (due to excessively long wire runs or high-resistance devices) will cause the output current to fall short of its commanded value.
• ❗ Mind the 5-Slot Power Distance Rule: The 1769- has a power distance rating of 5. It must be installed within 5 slots of a 1769 system power supply (such as the 1769-PA4 or 1769-PB4) to prevent backplane 5VDC voltage drops.

Frequently Asked Questions

Q: What is the primary difference between the 1769-OF4 and the 1769-?

The 1769- provides 8 current-only channels (0 to 20mA or 4 to 20mA) in a single slot. The 1769-OF4 provides 4 universal channels that can be configured individually for either voltage or current signals.

Q: What terminal block does the 1769- use?

The 1769- uses the standard 1769-RTBN18 18-pin removable screw-terminal block (or 1769-RTB18 spring-clamp terminal block).

Q: Does the 1769- detect open-wire faults in field wiring?

Yes. When configured for 4 to 20mA operation, the module automatically monitors loop continuity and sets diagnostic fault flags in Studio 5000 if an open-wire condition occurs.

Q: Can I use the 1769- with MicroLogix 1500 controllers?

Yes. The 1769- is fully compatible with both MicroLogix 1500 systems and CompactLogix 1769 expansion banks.

Q: Can I drive 0–10V VFD inputs using the 1769-?

Not directly. The 1769- outputs current signals (0 to 20mA / 4 to 20mA). If your VFD only accepts 0 to 10V, you should use the 1769-OF8V (8-channel voltage module) or install a 500\,\Omega precision resistor across the drive inputs (4 to 20mA \times 500\,\Omega = 2 to 10V).

Q: What warranty comes with your surplus and refurbished 1769- units?

Every 1769- module we ship includes our full 12-month replacement warranty. If a hardware defect or channel output failure occurs under normal operating conditions within 365 days of purchase, we replace the unit immediately from stock or issue a full refund.
