Description
Product Introduction
The Allen-Bradley 1771-P7 is a high-capacity AC chassis power supply engineered for the 1771 Universal I/O platform. Mounting directly to the left side of 1771 I/O chassis (such as 1771-A1B, 1771-A2B, 1771-A3B, and 1771-A4B), it provides stable 5VDC power directly across the backplane bus to drive PLC-5 controllers, remote I/O adapters, and high-density discrete or analog I/O modules.
With a maximum backplane output current of 16 Amperes at 5VDC, the 1771-P7 delivers twice the power capacity of smaller supplies like the 1771-P4S. It features dual AC voltage range compatibility (selectable between 120VAC and 220/240VAC), a front-panel diagnostic LED, and built-in overvoltage and overcurrent protection circuits to safeguard sensitive control hardware.
Key Technical Specifications
| Parameter | Value |
| Input Voltage Range | 98 to 132 VAC (120VAC Nominal) | 196 to 264 VAC (220/240VAC Nominal) |
| Input Frequency | 47 to 63 Hz |
| Output Power | 16.0 A @ 5.0 VDC (80 W Continuous Backplane Output) |
| Inrush Current | 30 A Max @ 120VAC | 60 A Max @ 240VAC for 10 ms |
| Power Consumption | 130 W Nominal |
| Fuse Rating | 3.0 A, 250V Slow-Blow (120VAC) | 1.5 A, 250V Slow-Blow (240VAC) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Mounting | Left side-mount directly onto 1771 Universal I/O chassis |
| Paralleling Support | Supports parallel power supply configurations (using 1771-P7 or 1771-PS7) for redundant or expanded power |
Application Scenarios & The “Trench” Experience
The Trench Story
During a midnight shift on a heavy forging line, an 8-slot 1771-A2B chassis populated with a PLC-5/40, two 1771-IFE analog input cards, and four high-density 32-point output modules suddenly loses all backplane logic power. The processor LEDs turn completely OFF, halting the entire hydraulics system. Checking input terminals shows 120VAC present at the power supply terminal, but the 5VDC logic bus drops to zero due to a failed internal switching transformer in an aging 1771-P7 power supply. Unbolting the failed 1771-P7 from the side of the 1771 rack, verifying voltage jumper configuration on the replacement unit, and plugging in the chassis power cable restores system logic and clears all processor fault flags in under 20 minutes.
Specific Applications
- Full-Rack PLC-5 Controllers: Supplies primary logic power to 12-slot and 16-slot 1771 I/O chassis running heavy digital and analog card configurations.
- Redundant Power Configurations: Configured alongside a second 1771-P7 or 1771-PS7 module using a power paralleling cable for high-availability process systems.
- Remote I/O (RIO) Drop Racks: Powers remote 1771-ASB chassis drops located in harsh field control panels across water treatment and oil refining facilities.

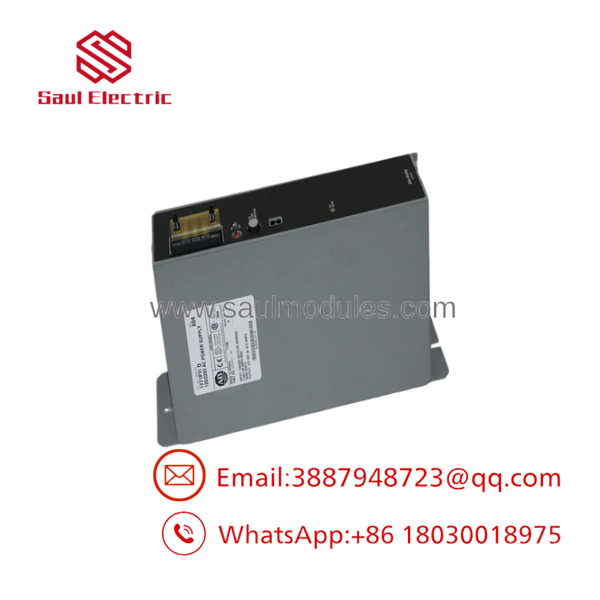

- 1771-P7

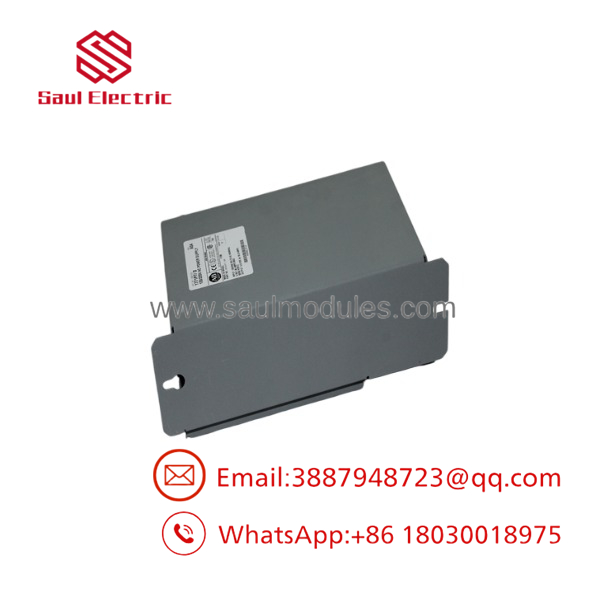

- 1771-P7

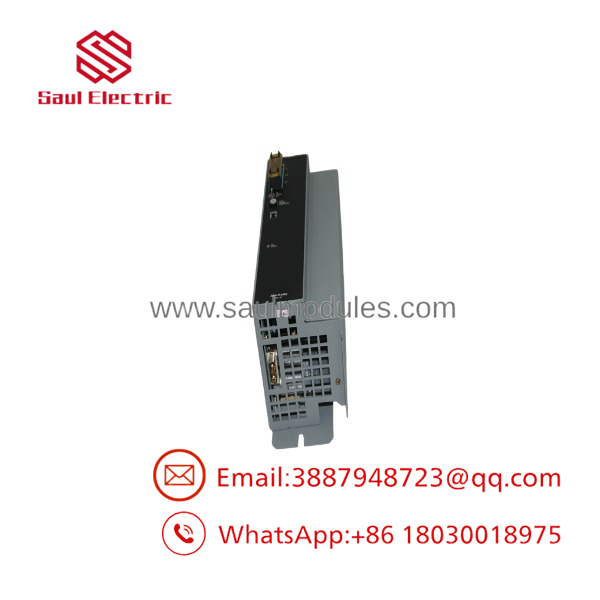

- 1771-P7
Transparency SOP: Quality Assurance & Testing
Every 1771-P7 power supply module undergoes full load testing and thermal burn-in before joining active inventory:
- Mechanical & Harness Inspection: We check side mounting hooks, clean connector pins, inspect internal capacitors for bulging, and test front-panel fuse holder threads.
- AC Line Regulation Test: The supply is powered across full AC voltage swings (98VAC up to 132VAC, and 196VAC up to 264VAC) to confirm primary rectifier and transformer switching stability.
- 16A Continuous Full-Load Burn-In: Connected to a programmable DC electronic load bank, the 1771-P7 is pulled at its maximum 16.0 A @ 5.0 VDC output rating for two hours to monitor thermal heat dissipation.
- Ripple & Voltage Regulation Measurement: Output voltage ripple is monitored on an oscilloscope under load to confirm ripple noise remains well under 50 mV peak-to-peak.
- Overvoltage & Short-Circuit Shutdown Test: We simulate short-circuit conditions on the 5V output rail to verify instant power supply shutdown and successful auto-recovery upon fault removal.
The Veteran’s Tech Trap Guide
- ⚠️ Verify the 120V / 240V Input Jumper Before Applying Power: The 1771-P7 features an internal input voltage selection jumper (or switch depending on Series). Applying 240VAC power while the unit is set for 120VAC input will instantly blow the internal fuse and varistors.
- ❗ Never Hot-Plug the Power Supply Harness: Always disconnect 120/240VAC input mains before connecting or disconnecting the power supply harness to the 1771 chassis backplane connector. Pluggable arcing can damage backplane copper trace contacts.
- ⚠️ Calculate Your Rack Current Load: While 16 A @ 5VDC is substantial, large 16-slot chassis packed with older 1771-IFE, 1771-OFE, or high-density discrete modules can exceed 16 A. Sum the 5V backplane current draw of every card in the rack; if total draw exceeds 16 A, you must split the rack or add a parallel 1771-P7 supply.
- ❗ Check the Front Panel Fuse First: If the green power LED is OFF, remove the front-panel fuse cap and check the 3 A slow-blow fuse (5\times20 mm or 3AG depending on series) with an ohmmeter before replacing the entire power supply.
Frequently Asked Questions
Q: What is the output current capacity of the 1771-P7?
The 1771-P7 provides 16.0 Amperes at 5.0 VDC directly to the 1771 chassis backplane.
Q: Can I parallel two 1771-P7 power supplies on the same chassis?
Yes. You can connect two 1771-P7 (or 1771-PS7) supplies using a 1771-P7 Series B power paralleling cable to increase output current capacity up to 32 A or to provide power supply redundancy.
Q: How does the 1771-P7 mount to the 1771 chassis?
It mounts directly to the left side panel of standard 1771 Universal I/O chassis (1771-A1B, A2B, A3B, A4B) using built-in mounting slots, connecting to the rack backplane via a heavy-duty wiring harness.
Q: What replacement fuse size is used in the 1771-P7?
For 120VAC operation, use a 3 A, 250V slow-blow fuse. For 240VAC operation, use a 1.5 A, 250V slow-blow fuse.
Q: What is the main difference between the 1771-P7 and the 1771-P4S?
The 1771-P7 provides 16.0 A @ 5VDC for high-density or large racks, whereas the smaller 1771-P4S provides only 8.0 A @ 5VDC for smaller 4-slot or 8-slot chassis drops.
Q: What warranty covers your surplus and refurbished 1771-P7 modules?
Every 1771-P7 power supply module we ship includes our full 12-month replacement warranty. If a power delivery fault or component failure occurs under normal operating conditions within 365 days of purchase, we replace the unit immediately from stock or issue a full refund.
