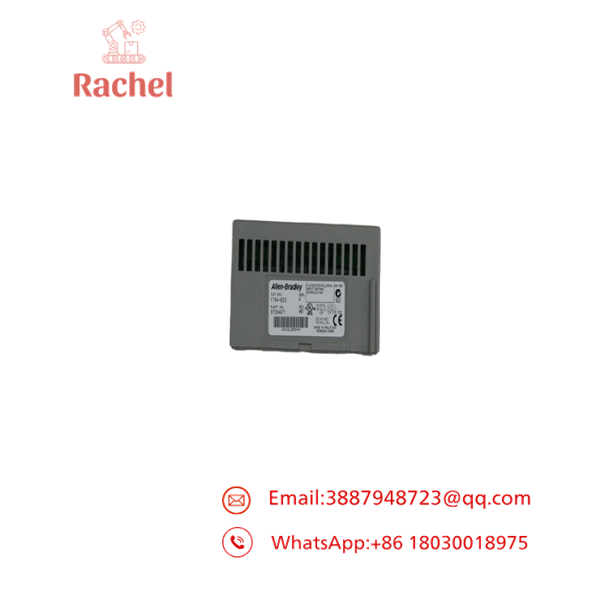

Allen-Bradley 1794-IB32 FLEX I/O Digital Input Module

Description

Product Introduction & Engineering Value

The Allen-Bradley 1794-IB32 is a 32-point digital input module for the FLEX I/O platform. It is designed for applications where a relatively high number of discrete field signals must be collected in a distributed I/O architecture without dedicating a large amount of panel space to conventional point-by-point wiring.

The important procurement details are straightforward: 32 inputs, 24 V DC field signals, FLEX I/O compatibility, and the correct terminal base. The module itself is only part of the FLEX I/O assembly, so the existing adapter and terminal-base arrangement should be checked before replacement.

Technical Specifications

Engineering note

The 1794-IB32 is not a standalone PLC I/O assembly. FLEX I/O modules plug into terminal bases, and the complete installation also requires an appropriate FLEX I/O adapter/network interface.

That distinction matters when replacing hardware from a running system. A replacement module with no compatible terminal base or with an incompatible existing network adapter will not restore the installation by itself.

Field Application & the “Trench” Experience

A packaging line has dozens of proximity switches, photoeyes, guard switches, and machine-position signals distributed across the equipment. The existing FLEX I/O station has been running for years, and one input module begins producing intermittent false states.

The maintenance team swaps the module. The fault disappears.

But the replacement process only works cleanly because the technician first documented which field devices were connected to each input point. With 32 discrete channels, losing track of point assignments can create a second problem immediately after the hardware fault is repaired.

Specific application scenarios

1. Packaging-machine sensor collection — Monitoring photoeyes, prox switches, limit switches, and machine-position feedback.
2. Conveyor transfer systems — Collecting distributed motor permissives, position sensors, and equipment interlocks.
3. Machine guarding and sequencing — Monitoring discrete safety-related status signals where the actual safety function is implemented through the appropriate safety-rated system.
4. Distributed process skids — Gathering valve-position switches, pump status contacts, and equipment permissives.

1794-IB32

1794-IB32

Transparency SOP: QA & Testing

For new-surplus or refurbished 1794-IB32 inventory, a useful test should exercise the individual input channels.

1. Part-number verification — Confirm the physical module is marked 1794-IB32.
2. Visual inspection — Check the housing, terminal-base interface, connectors, and status indicators.
3. Terminal-base inspection — Confirm the module mates correctly with a compatible FLEX I/O terminal base.
4. Power-up test — Install the module in a suitable FLEX I/O test system.
5. Channel test — Apply appropriate 24 V DC input signals to the channels.
6. PLC verification — Confirm that each input is correctly detected by the controller.
7. LED verification — Check individual channel status indication.
8. Repeatability test — Cycle inputs repeatedly to identify intermittent channels.
9. Final inspection — Record tested channels, hardware revision, and overall condition.

For a refurbished module, ask specifically whether all 32 channels were tested. Testing only a few inputs does not establish complete channel functionality.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Forgetting the terminal base.

The FLEX I/O module and terminal base are separate components. Before ordering, verify the existing terminal base and its compatibility with the replacement module.

PRO TIP: Photograph the complete FLEX I/O station—not just the failed module—before removing anything.

⚠️ Trap #2 — Treating all 24 V inputs as interchangeable.

Check the input wiring arrangement and signal characteristics. A sensor circuit designed for a particular sinking/sourcing configuration may not behave correctly if wired incorrectly.

⚠️ Trap #3 — Mixing up point addresses during replacement.

Thirty-two channels provide plenty of opportunity for a one-wire-off mistake. Label every conductor and record the channel mapping before removing the original module.

⚠️ Trap #4 — Using the module for a safety function it was not designed to perform.

The 1794-IB32 is a standard digital input module. Do not treat ordinary input status as a safety-rated input circuit unless the complete safety architecture and hardware are specifically designed and certified for that purpose.

Dynamic FAQ

What is Allen-Bradley 1794-IB32?

The 1794-IB32 is a 32-point 24 V DC digital input module in the Allen-Bradley FLEX I/O family.

How many inputs does the 1794-IB32 have?

It provides 32 discrete DC input points, making it suitable for installations with many distributed field sensors and status signals.

What voltage does the 1794-IB32 use?

The module is designed for 24 V DC discrete input signals. The actual field wiring should be checked against the applicable Allen-Bradley documentation and system design before energization.

Does 1794-IB32 need a terminal base?

Yes. FLEX I/O modules are installed with compatible terminal bases. The exact terminal-base part number should be verified against the existing installation.

Can I replace a 1794-IB32 with another FLEX I/O input module?

Not automatically. Confirm point count, input voltage, wiring configuration, terminal-base compatibility, controller configuration, and application requirements before substitution.

How should refurbished 1794-IB32 stock be tested?

Ideally, install it in a working FLEX I/O test station and exercise all 32 input channels using appropriate 24 V DC signals. Verify both controller recognition and channel-status indication.

Is new-surplus 1794-IB32 suitable as a critical spare?

Yes, provided the unit is genuinely unused, correctly identified, properly stored, and supported by a meaningful warranty. For refurbished stock, request documented channel-level testing.

What warranty should I expect?

Warranty terms depend on the supplier. Obtain the coverage period and return conditions in writing, particularly for refurbished FLEX I/O modules.
