Description
Product Introduction
The Allen-Bradley 1794-IT8 is a 8-channel thermocouple input module for the Flex I/O platform. It translates low-voltage millivolt signals directly from thermocouple sensor leads into 16-bit digital temperature values for processing across ControlNet, DeviceNet, or EtherNet/IP networks via a host adapter (such as a 1794-AENT or 1794-ACNR15).
By handling cold-junction compensation (CJC) onboard, the 1794-IT8 eliminates the need for external signal conditioners or interposing transmitters. It accepts ten different thermocouple sensor calibrations as well as raw millivolt ranges (\pm76.5 mV), providing high-density, noise-filtered thermal monitoring directly on local DIN rails.
Key Technical Specifications
| Parameter | Value / Technical Specification |
| Catalog Number | 1794-IT8 |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Number of Inputs | 8 Differential Channels (Non-Isolated between channels) |
| Supported Thermocouples | Types B, C, E, J, K, N, R, S, T |
| Millivolt Input Range | \pm76.5 mV |
| Resolution | 16-Bit (approx. 2.3\ \muV/bit or 0.1^\circC/bit) |
| FlexBus Current Load | 20 mA @ 5V DC |
| External Power Voltage | 24V DC Nominal (10.5 to 31.2V DC range) |
| External Power Current | 150 mA @ 24V DC |
| Data Format | ^\circC, ^\circF, ^\circK, Millivolts, or 2’s Complement |
| Cold Junction Compensation | Requires 1794-CJC2 sensors on terminal base |
| Required Terminal Base | 1794-TB3T or 1794-TB3TS (Thermostatic Base) |
Application Scenarios & The “Trench” Experience
An old heat-treat furnace trips an over-temperature alarm during a midnight production run. The operator notices Channel 4 on the PLC display reading 1,372^\circC on an ambient zone. Investigation reveals a shorted thermocouple card that saturated the analog input bus and threw adjacent channel readings off by hundreds of degrees. Swapping out a dead analog card on a live skid requires a drop-in 1794-IT8 that handles onboard filtering without forcing an entire rack re-configuration.
Field Applications
- Industrial Heat Treating & Kilns: High-density zone temperature monitoring using Type K or Type S thermocouples.
- Plastics Injection Molding: Precise barrel temperature sensing where low millivolt signal stability directly impacts melt quality.
- Petrochemical Flare Stacks: Remote monitoring of high-temperature flare tips using Type B or Type R elements across long wire runs.
Transparency SOP: Quality Assurance & Testing
We subject every 1794-IT8 module to rigorous bench calibration before adding it to inventory:
- Terminal Pin & Edge Check: Visual inspection for bent backplane pins, housing clips, and corrosion on gold-plated connectors.
- Cold-Junction Calibration Test: The card is installed on a 1794-TB3T base equipped with genuine 1794-CJC2 thermistors.
- Precision mV Injection: Using a Fluke 754 calibrator, we inject microvolt-level signals representing Types J, K, and T thermocouples across all 8 channels simultaneously.
- Noise & Open-Circuit Test: Channels are tested for open-burner detection response (upscale/downscale fault reporting in RSLogix 5000).
- ESD-Safe Packaging: Cleaned, documented for firmware revision, and sealed in static-shielding bags with custom impact foam.

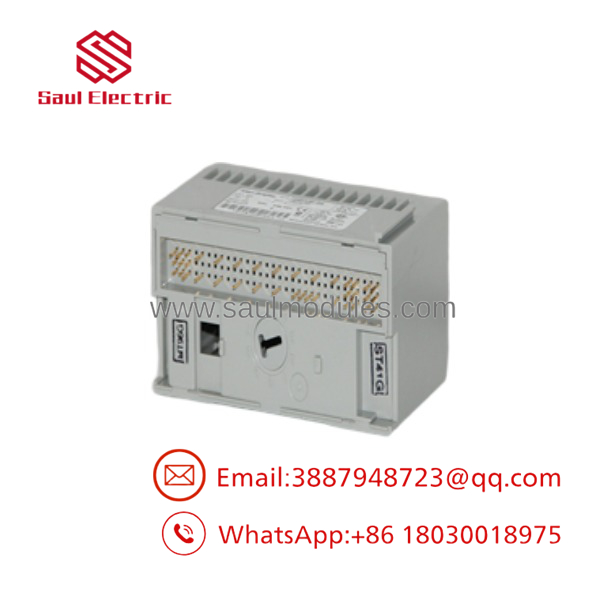

1794-IT8

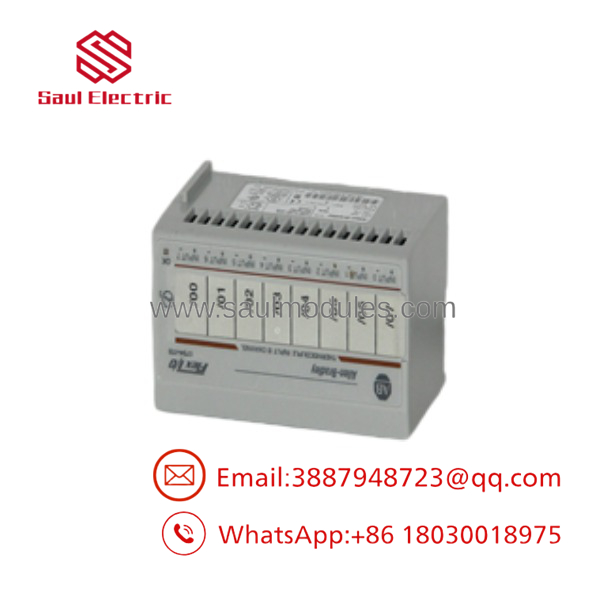

1794-IT8

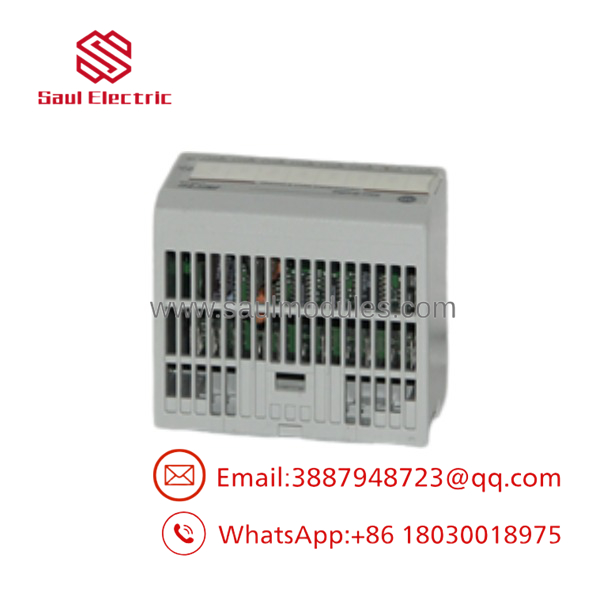

1794-IT8
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ 1. The Missing CJC Kit Trap
Do NOT mount a 1794-IT8 on a standard 1794-TB3 base plate and expect accurate temperature readings. You MUST use a 1794-TB3T or 1794-TB3TS terminal base and install the 1794-CJC2 Cold Junction Compensation sensors on terminals 39 and 40. Without CJC sensors, your temperature readings will drift wildly as ambient panel temperatures change.
❗ 2. Channel Isolation Limitations
The channels on the 1794-IT8 are differential, but they are not channel-to-channel isolated. If an ungrounded thermocouple touches a live 120V AC heater element in the field, it will burn out the input multiplexer for the entire block. If you have ungrounded junction risks, use grounded thermocouple sheaths or isolated transmitters.
⚠️ 3. Unused Channel Floating Faults
Unused input channels on the 1794-IT8 will float and trigger open-thermocouple alarm bits in your PLC program. Always jumper unused + and – terminals together or disable open-wire detection for those specific channels in module properties within Studio 5000 / RSLogix.
❗ 4. Shield Grounding Best Practices
Thermocouple wire acts like an antenna for high-frequency noise from VFD motor leads. Always ground the drain wire at the 1794-TB3T shield terminals only. Never ground the shield at both ends; ground loops will introduce offset errors into your 16-bit analog readings.
Frequently Asked Questions (FAQ for Conversion)
Q: Can I mix different thermocouple types (e.g., Type K on Ch 0 and Type J on Ch 1) on the same module?
A: Yes. Every channel on the 1794-IT8 is individually configurable via software for thermocouple type, data format, and filter frequency.
Q: What is the difference between the 1794-IT8 and the 1794-IRT8?
A: The 1794-IT8 supports thermocouples (mV signals), whereas the 1794-IRT8 is a combination module that supports both RTDs (resistance-based) and thermocouples on the same card.
Q: Does this module supply power to field transmitters?
A: No. Thermocouples generate their own millivolt potential via the Seebeck effect. The module measures this passive microvolt signal directly.
Q: Are the 1794-CJC2 sensors included with the 1794-IT8 module?
A: No. The CJC thermistors are packaged with the 1794-TB3T terminal base, not the 1794-IT8 module itself. If buying a replacement module alone, reuse your existing CJC sensors from the base.
Q: How do you handle warranty claims if a surplus card fails on startup?
A: We stand behind all our New Surplus and Refurbished 1794-IT8 units with a 12-month full replacement warranty. If a module fails during setup, contact us for an immediate advance replacement.
