Description
Product Introduction & Engineering Value
The 1794-OB32P is intended for dense discrete-output applications where a FLEX I/O station needs to drive a large number of 24 VDC field devices. Its 32 outputs are divided into two 16-point groups, with each group having its own power connection. Rockwell’s documentation identifies the module as a protected sourcing-output device.
The distinction between source, sink, and protected output types matters during replacement. The OB32P is a sourcing module; it should not be substituted with a sinking output module merely because the point count appears similar. The module also requires the appropriate 1794-TB32 or 1794-TB32S terminal base.
Technical Specifications
| Specification | 1794-OB32P |
|---|---|
| Module type | FLEX I/O digital DC output |
| Outputs | 32 |
| Output type | Sourcing |
| Output groups | 2 × 16 points |
| Nominal field supply | 24 VDC |
| External DC supply range | 10–31.2 VDC |
| Maximum output current | 500 mA per channel |
| Maximum module current | 14 A |
| Maximum output surge | 2 A for 50 ms, repeatable every 2 s |
| OFF-to-ON delay | 0.5 ms maximum |
| ON-to-OFF delay | 1.0 ms maximum |
| Maximum output voltage drop | 0.5 V |
| Maximum power dissipation | 5.3 W |
| Operating temperature | 0–55 °C (32–131 °F) |
| Terminal bases | 1794-TB32, 1794-TB32S |
| Indicators | 32 yellow output-status indicators |
Rockwell’s installation documentation specifies the 24 VDC nominal supply, 19.2–31.2 VDC operating range for the applicable protected-output family, and the 1794-OB32P’s 32-point configuration. The selection guide specifies up to 500 mA per channel and 14 A per module.
Output Architecture
The 32 outputs are arranged as two independent groups of 16. This is an important wiring consideration because each group has its own common/power arrangement. Rockwell’s schematic shows the two groups as separate output sections, with current limiting and thermal protection incorporated into the output circuitry.
The module is designed around protected sourcing outputs. In practical terms, that makes it suitable for driving loads such as:
- Solenoid valves
- Interposing relays
- Contactor coils
- Pilot lights
- Small DC actuators
- Other 24 VDC discrete loads within the specified current limits

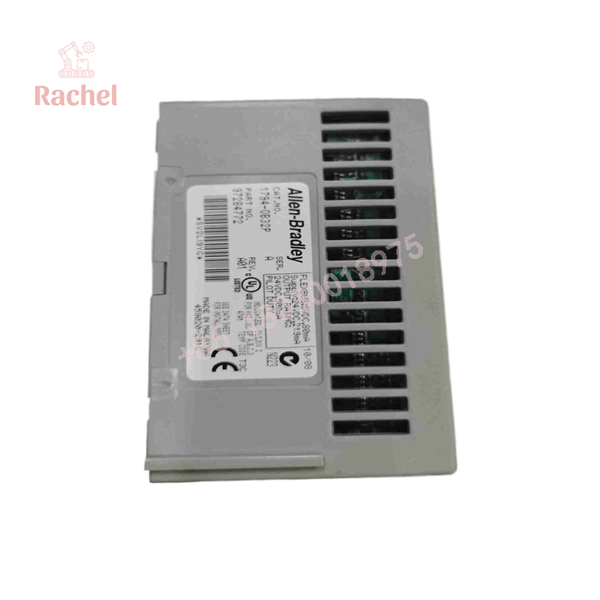

1794-OB32P
Field Application & The “Trench” Experience
A production machine has a FLEX I/O station controlling dozens of pneumatic valves and status devices. One output channel stops switching, and the maintenance team initially suspects the field solenoid.
The technician moves the diagnostic process upstream: first checking the 24 VDC supply, then the terminal-base wiring, then the individual output point. The failed point is on a 1794-OB32P, while the other outputs in the same 16-point group remain operational. A replacement module is installed using the existing TB32 terminal base, and each output is tested against a known load before the machine is returned to automatic operation.
The useful feature here is density. Thirty-two protected outputs in one FLEX I/O module can significantly reduce the number of discrete modules required in a distributed I/O panel.
Specific application scenarios
- Pneumatic valve manifolds requiring many 24 VDC solenoid outputs.
- Conveyor diverter control with numerous motor starters, relays, and indicator circuits.
- Packaging-machine actuator banks where dozens of discrete outputs are concentrated in one FLEX I/O station.
- Material-handling equipment using distributed FLEX I/O to control brake solenoids, contactors, and signaling devices.
Transparency SOP: QA & Testing
For New Surplus or Refurbished 1794-OB32P inventory, the QA procedure should concentrate on both output switching and protection behavior.
1. Identity check
Confirm the exact 1794-OB32P catalog number, Series, and label information.
2. Mechanical inspection
Check the module housing, terminal-base interface, mounting mechanism, connector surfaces, and status indicators.
3. Power-up test
Install the module on a compatible FLEX I/O terminal base and apply the specified field power.
4. Point-by-point output test
Command representative output points and verify that the corresponding status indicators and physical outputs respond correctly.
5. Load test
Use controlled 24 VDC test loads to verify output operation without exposing the module to an uncontrolled production load.
6. Protection verification
Where appropriate test equipment is available, verify the module’s protected-output behavior under controlled fault conditions.
7. Final inspection
Record catalog number, Series, test status, physical condition, and warranty terms.
Rockwell currently lists a one-year standard warranty for the 1794-OB32P.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Confusing sourcing and sinking outputs.
The 1794-OB32P is a sourcing output module. Rockwell’s FLEX I/O selection documentation distinguishes it from sinking modules such as the 1794-OV16P. Check the field-device wiring before substitution.
⚠️ Trap #2 — Forgetting the two-group architecture.
The 32 outputs are divided into two groups of 16. The power/common arrangement must be wired correctly for both groups. A single field-power problem can therefore affect a group of outputs rather than the entire module.
⚠️ Trap #3 — Treating 500 mA as an unlimited load rating.
The specified maximum is 500 mA per output, with a 14 A maximum for the module. Motor loads, solenoids, and contactor coils can have transient characteristics that need to be considered separately.
PRO TIP: When troubleshooting a dead output, measure voltage at the terminal base and at the load. A healthy output module cannot compensate for a missing field supply, open common, loose terminal, or broken field conductor.
Dynamic FAQ
What is the Allen-Bradley 1794-OB32P?
The 1794-OB32P is a 32-point FLEX I/O 24 VDC protected sourcing digital output module. Rockwell lists it under the Bulletin 1794 FLEX I/O family.
How many outputs does the 1794-OB32P have?
It provides 32 digital outputs, arranged as two groups of 16.
What is the maximum output current?
The specified maximum is 500 mA per channel, with a 14 A maximum module current.
Which terminal base is required?
Rockwell’s FLEX I/O selection guide identifies the 1794-TB32 and 1794-TB32S terminal bases for the 1794-OB32P.
Is the 1794-OB32P a protected output module?
Yes. It is specifically described as a protected 24 VDC sourcing output module. Rockwell’s documentation shows current-limit and thermal-protection circuitry in the output architecture.
Is the 1794-OB32P still available?
Rockwell currently lists its lifecycle status as Active Mature and indicates that a replacement is available.
How do I verify New Surplus authenticity?
Check the physical 1794-OB32P catalog number, Series marking, manufacturer label, and condition. For higher-confidence verification, install the module on a compatible FLEX I/O test assembly and confirm that representative output channels switch correctly.
What warranty applies?
Rockwell currently lists a one-year standard warranty. For New Surplus or Refurbished units purchased through an independent supplier, confirm that supplier’s separate warranty terms before ordering.
