Allen-Bradley 2094-AC05-MP5-S Kinetix 6000 IAM 3kW 5A Inverter

Description

Product Introduction

The Allen-Bradley 2094-AC05-MP5-S is an Integrated Axis Module (IAM) engineered specifically for the Kinetix 6000 multi-axis servo system. Combining a 3 kW AC-to-DC bus power converter and a 5A internal servo inverter into a single power rail slot, it serves as the foundational anchor module on the 2094 power rail. It handles utility power rectification while simultaneously driving a local servo axis via the SERCOS optical network interface.

Unlike standalone axis modules, the 2094-AC05-MP5-S eliminates the need for a separate power supply module, saving valuable panel footprint on small to mid-sized machine builds. The “-S” designation indicates hardware-integrated Safe Torque Off (STO) functionality, meeting ISO 13849-1 Performance Level d / SIL2 safety requirements out of the box without requiring external main line contactors to drop drive power.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It’s 2 AM on a Tuesday, and a high-speed case packer drops off line with a E55 SERCOS ring fault and an immediate DC bus overvoltage trip on Axis 1. The line is losing $8,000 an hour in unfulfilled orders. You open the enclosure to find the 2094-AC05-MP5-S baked hot, smelling of burnt dielectric, and refusing to pre-charge the DC bus. Because Rockwell discontinued the Kinetix 6000 series at the end of 2023, the distributor tells you there’s a 26-week lead time for a migration path to Kinetix 5700. Having a verified, pre-tested direct drop-in module on your shelf turns a catastrophic multi-day retrofit project into a 20-minute swap.

• High-Speed Packaging Machinery: Used as the master power/drive module driving carton feeds or indexers while sharing the 325V DC bus across auxiliary 2094-AMP5 follower axes.
• Automated Material Handling & Sorting: Drives primary conveyor belt positioning systems utilizing high-resolution optical feedback over SERCOS fiber rings.
• Pharmaceutical Labeling Lines: Demands exact torque control and tight STO safety interlocks to instantly dump motor torque without resetting controller states.
• CNC & Custom Multi-Axis Motion Tables: Converts incoming 230V 3-phase mains to power a 3 kW common bus array while managing precision X-axis or spindle control.

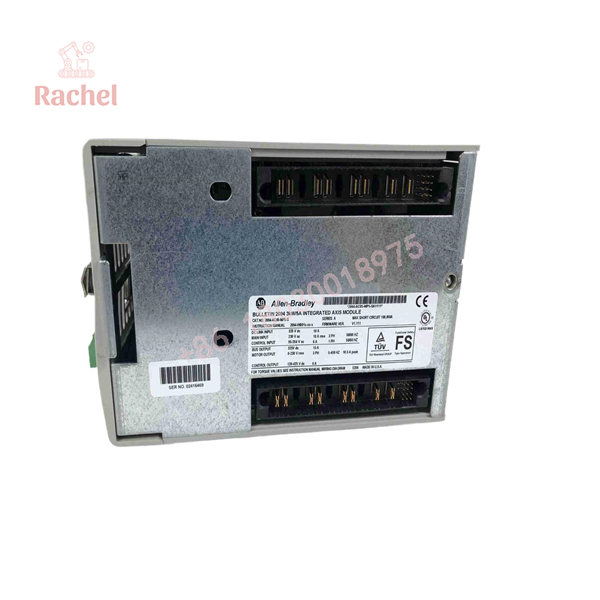

2094-AC05-MP5-S

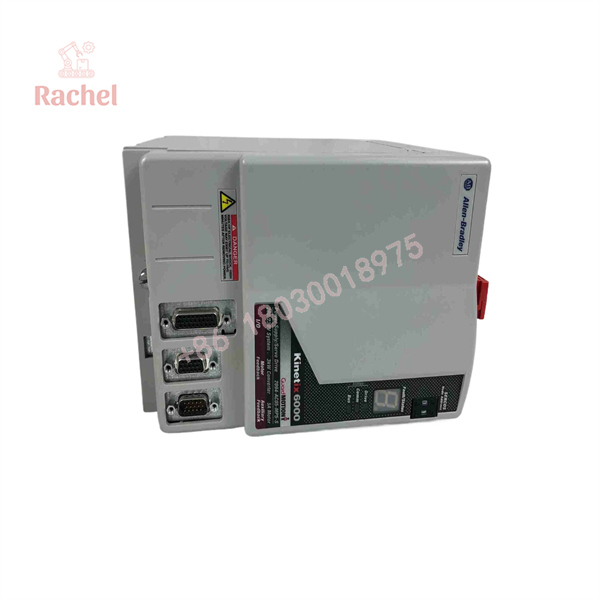

2094-AC05-MP5-S

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Allen-Bradley 2094 power rails. Here is how every 2094-AC05-MP5-S unit is validated before it leaves our shop:

1. Inbound Inspection: Physical teardown to inspect internal capacitors for bulging, check power PCB traces, verify OEM labels, and ensure the backplane connector pins are unbent.
2. Bench Megger Testing: High-voltage insulation testing on power stage components (L1, L2, L3 input to ground, and U, V, W motor output terminals to frame) to catch dielectric degradation early.
3. Power Rail Mount & Pre-Charge Test: Module is mounted on a 2094-PRSx rail under 230V AC input. We verify smooth pre-charge sequence execution and monitor nominal DC bus voltage (325V DC) stability.
4. Live SERCOS Loop & Motion Handshake: Connected to a ControlLogix 1756-M16SE SERCOS interface card over fiber optics. We execute full speed/torque profiles under real load using an MP-Series servo motor.
5. STO Safety Circuit Verification: Hardware STO pins are cycled under load to confirm immediate pulse width modulation (PWM) disable while maintaining active bus logic.
6. Anti-Static Packaging: Unit is discharged, cleaned, and wrapped in ESD shielding bubble wrap before placement in heavy-duty shipping containers.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

To be honest, the Kinetix 6000 is a workhorse, but swapping these modules has sent many engineers down a troubleshooting rabbit hole. Watch out for these traps:

• ⚠️ DIP Switch & Node Address Setup: Take a photo of the two rotary switches (SERCOS Node Address) on top of the old IAM before pulling it. If you install the new card with default settings (000), the ControlLogix motion group won’t recognize the axis on the fiber ring.
• ❗ Baud Rate & Optical Power Mismatch: Check the small slide switch for SERCOS baud rate (4 Mbps vs. 8 Mbps) and optical power strength. Setting the optical power switch incorrectly for long fiber runs will result in intermittent E54 or E55 ring loss errors.
• ⚠️ Safe Torque Off (STO) Jumper Plug: If your system doesn’t use safety wiring directly into the STO header (CED/STO connector), you must install the factory STO jumper plug. If left open, the module will sit in a permanent “Safety Open” state and refuse to enable the power stage.
• ❗ Shared Bus Capacitor Stress: Never pull an IAM off the power rail immediately after removing AC mains. Wait at least 5 minutes and physically measure the DC bus test points with a DMM to confirm voltage has dropped below 50V DC. You can blow out the backplane contacts if you yank it while charged!

Frequently Asked Questions (FAQ)

Q: Can I hot-swap the 2094-AC05-MP5-S while the 2094 power rail is energized?

A: No. Pulling or inserting an Integrated Axis Module with power applied to the backplane will arc the power rail connectors and permanently damage the IAM control board. Always isolate incoming 230V AC mains and control power before rack removal.

Q: Will the 2094-AC05-MP5-S drop right into a system running a non-S model (2094-AC05-MP5)?

A: Mechanically and electrically, yes. However, the “-S” unit features hardware Safe Torque Off connections. If replacing a non-S model, you must either wire the STO inputs to your safety relay or insert the STO bypass header, otherwise the drive won’t enable.

Q: Do I need to re-flash firmware when I replace this drive?

A: Firmware on SERCOS-based Kinetix 6000 drives is managed directly by RSLogix 5000 / Studio 5000 via the 1756-MxxSE module. If the replacement IAM’s firmware doesn’t match the motion group’s target revision, Logix will flash or prompt you to match revisions automatically upon power-up.

Q: What is the official replacement since Rockwell discontinued this part in 2023?

A: Rockwell’s official engineering migration path is the Kinetix 5700 platform (typically using 2198-D012-ERS3). However, migrating requires redesigning panel layouts, replacing the SERCOS interface with EtherNet/IP cards, and rewriting motion logic. Using a replacement 2094-AC05-MP5-S avoids thousands of dollars in engineering redesign.

Q: What warranty coverage comes with this module?

A: We cover this unit with a full 12-month operational warranty. If it faults or fails under normal operating conditions within one year of purchase, we replace or repair it immediately.
