Allen-Bradley 2711C-T10C PanelView Component C1000 HMI

Description

Product Introduction

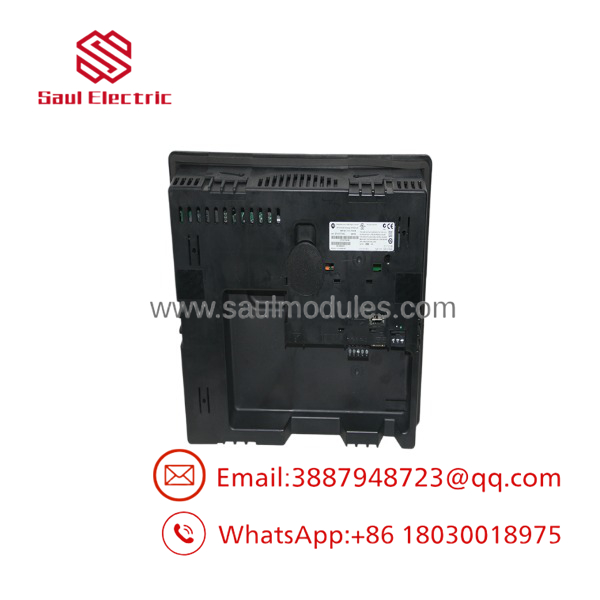

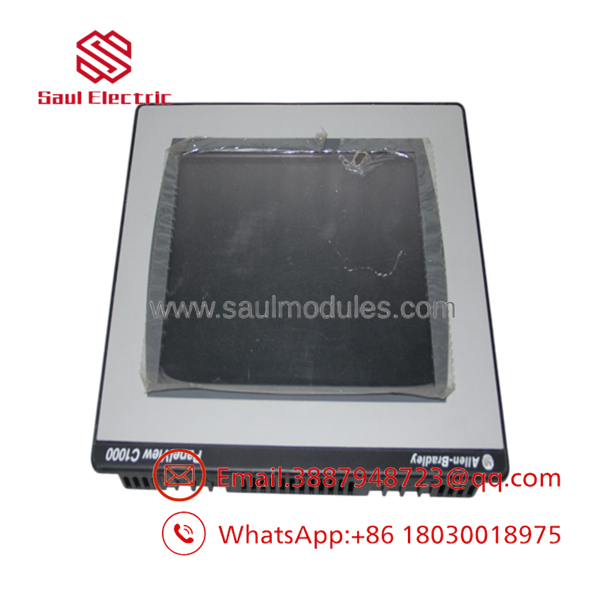

The Allen-Bradley 2711C-T10C is a 10.4-inch PanelView Component C1000 graphic terminal designed for standalone machine-level operator control. Powered by a 24V DC supply, this terminal features a 640×480 VGA color display with an analog resistive touch screen. It interfaces directly with MicroLogix, Micro800, and CompactLogix controllers over EtherNet/IP or serial protocols (RS-232 and RS-485).

Unlike standard PanelView units requiring dedicated PC software installations, the 2711C-T10C features an embedded web server design. To create or modify screens, you simply connect an Ethernet cable to a PC and launch a web browser. This setup eliminates software licensing costs and makes it an ideal choice for OEM skids, packaging machinery, and cost-sensitive automation panels.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A custom OEM packaging machine in a beverage facility stops cycling because the HMI panel stops responding to touch commands. Water ingress around the aging front bezel shorted out the digitizer, leaving operators unable to adjust line speeds or clear jam faults. Because the original machine builder went out of business years ago, downloading a project onto a modern terminal would mean rebuilding all graphic screens from scratch. Swapping in a direct-replacement 2711C-T10C allows maintenance technicians to upload the backup application file via a USB stick and restore production in under 30 minutes.

• OEM Packaging Machinery – Conveyor & Bagging Control – Links via EtherNet/IP to MicroLogix 1400 PLCs for real-time speed monitoring and batch counting.
• Pumping & Filtration Skids – Local Skid Operator Station – Uses RS-485 Modbus RTU communications to display pressure levels and VFD operating frequencies.
• Commercial HVAC Units – Chiller & Air Handler Interface – Connects to Micro850 controllers to manage temperature setpoints, valve states, and system scheduling.
• Material Handling Systems – Sorting & Palletizing Controls – Provides large 10.4-inch touch targets for operators adjusting diverter timing in industrial environments.

2711C-T10C

2711C-T10C

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Allen-Bradley racks before they leave our warehouse.

1. Inbound Inspection: Every terminal undergoes a physical check for screen scratches, cracked front bezels, worn rear sealing gaskets, and terminal block stress.
2. Live Rig Testing: The 2711C-T10C is powered with 24V DC and connected via Ethernet to a live MicroLogix controller to verify communication handshakes.
3. Touch Grid & Port Calibration: We test the entire touch surface for dead zones, verify USB drive file reads, and validate serial data transfer across both RS-232 and RS-485 ports.
4. Display & Web Server Burn-In: The unit is left powered on to test display color stability and confirm the embedded DesignStation web server loads cleanly without browser timeout errors.
5. Final QC & Packaging: The HMI is cleaned, wrapped in ESD protective static-shielding film with face protection, and packed in reinforced custom foam boxes.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Strict 24V DC Power Requirements: This unit requires an external 18-30V DC power supply. Connecting 120V AC line power to the 3-pin power terminal block on the rear will destroy the internal power supply board immediately.
• ❗ Web Browser Compatibility Issues: The embedded DesignStation software built into the 2711C-T10C relies on legacy browser features (like older Internet Explorer or Firefox versions with specific Java/Internet settings). If your modern browser refuses to load the configuration page, use Connected Components Workbench (CCW) on your PC instead.
• ⚠️ Touch Screen Pressure Sensitivity: The analog resistive screen is calibrated for single-finger or stylus touch. Avoid using sharp tools, screwdrivers, or harsh industrial solvents on the display face; doing so can puncture the outer membrane and disable the touch matrix permanently.
• ❗ USB Flash Drive File Systems: If you are importing or exporting application files (.CHA extension) using a USB drive, format the drive to FAT32 and keep its capacity under 32 GB. The terminal will fail to mount high-capacity NTFS or exFAT formatted drives.

Frequently Asked Questions (FAQ for Conversion)

Q: Can I program the 2711C- using Connected Components Workbench (CCW)?

A: Yes. While the terminal includes an embedded web server, you can also build, edit, and download .CHA application files directly using Rockwell Automation’s Connected Components Workbench (CCW) software over Ethernet or USB.

Q: What is the main difference between the PanelView Component series and PanelView Plus?

A: PanelView Component terminals (like the 2711C-) are designed for standalone, low-cost applications using controllers like MicroLogix and Micro800. PanelView Plus terminals offer higher processing speeds, advanced alarming, complex trends, and integration into large-scale ControlLogix / FactoryTalk View ME architectures.

Q: Is the display backlight inside the 2711C- field-replaceable?

A: No. The solid-state LED backlight in the 2711C- is integrated into the display assembly and is non-replaceable.

Q: Can I reuse the mounting panel cutout from an older PanelView 1000?

A: No. The physical dimensions and cutout size of the 2711C- differ from legacy PanelView 1000 or PanelView Plus 1000 terminals. You will need an adapter plate if you are mounting this unit in a larger existing cutout.

Q: How do you verify the quality of surplus legacy 2711C- HMIs?

A: Every surplus unit is inspected, bench-tested under live 24V DC power with active controller communications, tested for full touch grid responsiveness, and backed by our 12-month replacement warranty from the invoice date.
