Product Introduction & Engineering Value
The Allen-Bradley 354792-A01 is an encoder interface board used with the PowerFlex 700 drive platform. Its job is straightforward but critical: bring incremental encoder feedback into the drive so the control system can monitor motor position and speed during closed-loop operation.
The associated interface supports 5 V or 12 V encoder operation and accepts A/B signals plus the Z marker channel. For a replacement, matching the board identification is only the first step; encoder voltage, signal format, wiring, and drive configuration also need to match the existing installation.
Technical Specifications
- Manufacturer: Allen-Bradley / Rockwell Automation
- Part Number: 354792-A01
- Product Family: PowerFlex 700
- Associated Catalog Number: 20B-ENC-1
- Associated Assembly Number: 319284-A01
- Board Type: Encoder interface / feedback PCB
- Encoder Type: Incremental, dual-channel
- Encoder Supply: 5 V or 12 V, selectable through the associated interface configuration
- Available Encoder Supply Current: Up to 250 mA from the documented interface
- Maximum Input Frequency: 250 kHz
- Encoder Inputs: A, A/, B, B/, Z, Z/
- Output Type Supported: Line-driver encoder signals, including single-ended or differential arrangements where compatible with the drive interface
- Primary Application: PowerFlex 700 closed-loop vector-control applications
The 250 kHz input limit and 5 V/12 V encoder capability are particularly important when checking compatibility with an existing feedback device.

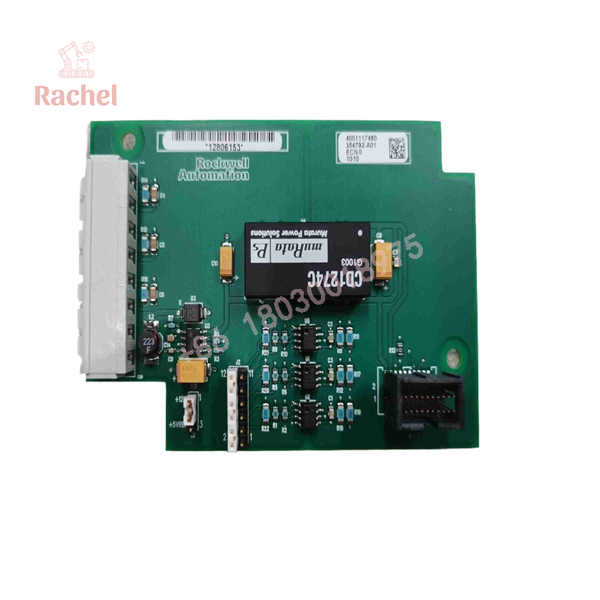

354792-A01

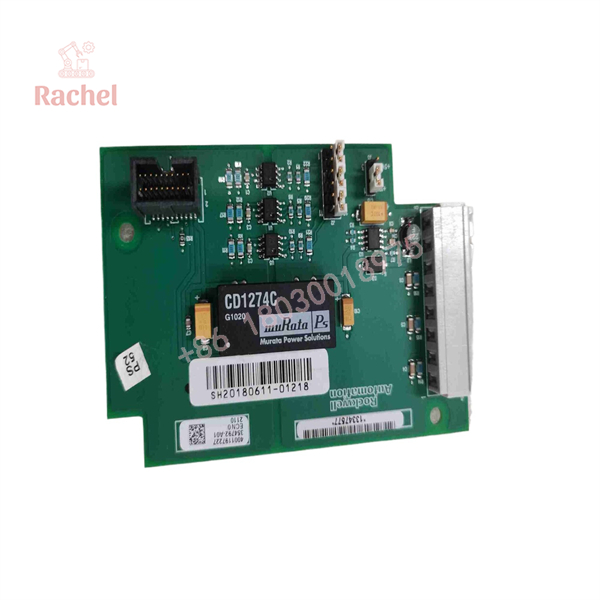

354792-A01
Field Application & the “Trench” Experience
A typical replacement scenario is not a clean laboratory swap.
Consider a production line using a PowerFlex 700 on a speed-critical conveyor section. The drive begins reporting inconsistent feedback, while the motor itself checks out electrically. Maintenance traces the problem to the encoder interface board. The replacement arrives, but the technician discovers that the original installation uses a specific encoder voltage configuration and differential A/B wiring. Installing the board without recording those details first can turn a straightforward component replacement into another troubleshooting cycle.
Where this board fits in practice:
- Closed-loop conveyor speed control — encoder feedback maintains controlled motor speed when mechanical load changes.
- Web handling and winding equipment — feedback is used where motor speed tracking is important to material movement.
- Position-sensitive material handling — the encoder interface provides the feedback path required by PowerFlex 700 closed-loop control.
These are application examples based on the board’s documented encoder-feedback function, not claims that every 354792-A01 installation uses the same machine architecture.
QA & Testing SOP
For New Surplus or refurbished inventory, the part condition should be established separately from the electrical identification.
Recommended receiving and QA sequence:
- Part-number inspection — verify
354792-A01, board markings, revision information, and associated assembly references. - Physical inspection — examine connectors, PCB surfaces, terminals, components, mounting points, and signs of corrosion or mechanical damage.
- Configuration verification — compare the encoder voltage and interface configuration against the customer’s existing installation.
- Functional testing — where appropriate, test the interface in a compatible PowerFlex 700 test environment rather than relying solely on visual inspection.
- Documentation — record the tested condition, serial/date-code information when available, and warranty coverage supplied with the specific item.
Do not treat the words “new surplus” as equivalent to “factory warranty.” Surplus inventory can be unused while carrying an older date code or lacking the original manufacturer’s warranty.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Ordering by description alone
“PowerFlex 700 encoder board” is not enough identification. Several related numbers can appear in the supply chain. Current listings associate 354792-A01 with 20B-ENC-1 and 319284-A01, so compare the physical board marking and existing assembly before ordering.
⚠️ Trap #2 — Forgetting encoder voltage
The associated interface supports 5 V and 12 V encoder operation. Do not assume the voltage setting from the drive model alone. Verify the encoder manufacturer’s electrical requirements and the existing board configuration first.
PRO TIP: Photograph the old board, connector wiring, jumpers, and terminal labels before removing it. That five-minute record can save considerably more time during commissioning.
⚠️ Trap #3 — Treating a feedback fault as purely a PCB fault
A failed or intermittent encoder, damaged cable, incorrect A/B polarity, poor shielding, or incompatible signal format can produce symptoms that look like an encoder-interface problem. Check the complete feedback path before condemning the board.
Dynamic FAQ
What is Allen-Bradley 354792-A01?
354792-A01 is an encoder interface PCB associated with the Allen-Bradley PowerFlex 700 drive family. Current supplier cross-references identify it with the 20B-ENC-1 encoder interface and 319284-A01 assembly.
Is 354792-A01 the same as 20B-ENC-1?
They are currently cross-referenced in supplier and surplus-parts databases, with 354792-A01 listed as an alternate part number for 20B-ENC-1. Because assembly and board numbers can differ, verify the physical identification against the existing hardware before treating the numbers as interchangeable.
What encoder voltage does the interface support?
The associated PowerFlex 700 encoder interface supports 5 V or 12 V encoder operation. The correct configuration depends on the encoder and installed system.
What is the maximum encoder input frequency?
The documented maximum input frequency for the associated interface is 250 kHz. The encoder and feedback wiring must also satisfy the applicable electrical requirements.
Is 354792-A01 still available?
It appears in current surplus and industrial MRO listings, although availability varies by supplier. One current listing identifies 354792-A01 as an encoder board and another identifies it as an alternate part number for 20B-ENC-1. Stock status should therefore be confirmed at the time of purchase.
Does “New Surplus” mean factory-new with the original warranty?
Not necessarily. Surplus terminology can describe unused inventory that may have older date codes, non-original packaging, or no applicable OEM warranty. Confirm the seller’s exact condition definition and warranty terms before purchasing.
