Allen-Bradley 6186M-15PT 15 Inch Industrial Monitor

Description

Product Introduction

The 6186M-15PT is a 15-inch industrial-grade panel-mount monitor from Allen-Bradley’s VersaView 1500M series. Engineered specifically for harsh plant-floor environments, this display converts video signals from industrial PCs, Rockwell ControlLogix platforms, or remote thin clients into sharp visual process graphics, giving operators direct touchscreen control over automated production lines.

Unlike commercial-grade desktop monitors that fail quickly under shop-floor stress, the 6186M-15PT features an IP66/NEMA 4X aluminum front bezel that resists washdown sprays, oil mist, and dust infiltration. Its analog resistive touchscreen accepts inputs from bare fingers, gloved hands, or styluses, making it a dependable hardware interface for food and beverage, automotive assembly, and chemical processing facilities.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It’s 11:30 PM on a Friday night in a high-speed bottling plant. A fork truck bumping an HMI enclosure or years of caustic washdown chemical exposure finally cracks the front touchscreen matrix on the primary filler line monitor. The display flickers, loses touch calibration, and freezes operator inputs mid-batch. Production stops cold. You need a drop-in panel replacement with identical bezel cutouts so the night shift maintenance crew can swap the display and restore HMI control immediately.

• Food & Beverage Processing – Packaging Line HMI – High-grade front seal withstands daily high-pressure washdown protocols without moisture ingress.
• Automotive Stamping & Assembly – Robotic Cell Control – Heavy-duty aluminum bezel handles continuous ambient shock and vibration near high-tonnage presses.
• Chemical Batching Plants – Operator Interface Stations – Resistive touch surface allows seamless operator interaction even while wearing heavy butyl safety gloves.

During a recent emergency at a pharmaceutical packaging line, a failed backlight inverter on an older 6186M display blinded the primary batching interface. Because the enclosure cutout was pre-machined to exact 6186M dimensions, dropping in a verified replacement 6186M-15PT restored full touch operation and video feed within 30 minutes, preventing an entire batch dump.

Transparency SOP: Quality Assurance & Testing

We test every 6186M-15PT industrial monitor on actual test benches before it leaves our facility. Here is our direct testing process:

1. Physical & Gasket Inspection: We examine the glass face for scratches, check for seal degradation, verify the aluminum bezel finish, and inspect rear connector pins.
2. Power-On & Backlight Stress Test: The monitor is powered up for an extended burn-in period to verify backlight uniformity, inverter stability, and thermal dissipation.
3. Video Interface Verification: We run test patterns through both VGA and DVI ports to verify pixel integrity, color balance, and refresh sync without flickering.
4. Touchscreen Grid Calibration: Using both USB and RS232 serial touch controllers, we test a multi-point screen calibration matrix to ensure zero dead spots or touch drift across all four corners.
5. Anti-Static & Protective Packaging: The front glass face is covered with protective film, wrapped in static-shielding material, and encased in high-density foam shipping boxes.

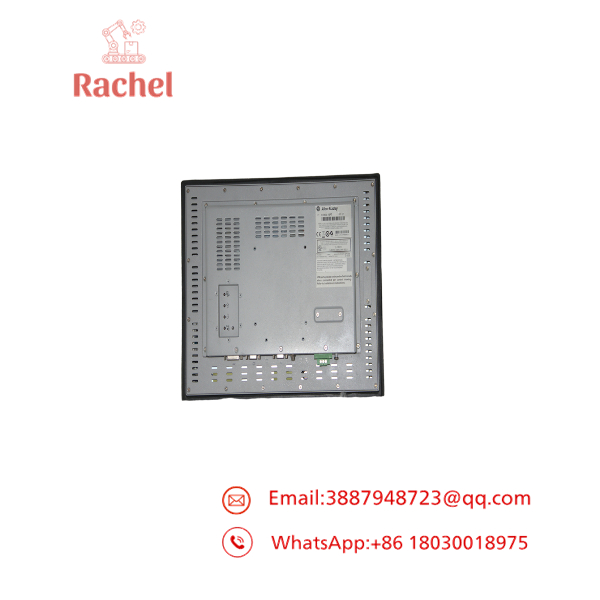

6186M-15PT

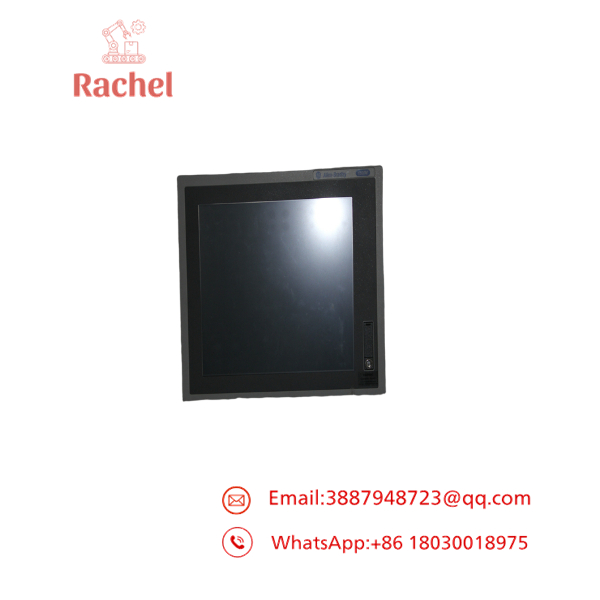

6186M-15PT

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Do not over-tighten the panel mounting clips! When installing the monitor into the cabinet cutout, torque the rear mounting clamps evenly in a cross pattern. Over-tightening can warp the aluminum bezel, distorting the front gasket seal and causing touch matrix false-clicks or glass pinching.
• ❗ Check your touch communication cable interface. The 6186M-15PT supports touch communication via serial (RS232) or USB. Make sure you connect the correct cable type to your industrial PC and install the matching Rockwell touch driver software (such as Elo Touch or Allen-Bradley Touch drivers) in Windows.
• ⚠️ Verify power supply voltage rating. Ensure you confirm whether your specific sub-revision requires 24 VDC or 100-240 VAC power input before flipping the breaker. Hooking 120 VAC up to a 24 VDC terminal block will instantly destroy the internal power supply board.
• ❗ Keep solvents away from the touchscreen. While the bezel is IP66 rated, harsh solvents like acetone or strong paint thinners can degrade the top protective film of the resistive touchscreen matrix over time. Use isopropyl alcohol or mild detergent for screen cleaning.

Frequently Asked Questions (FAQ for Conversion)

Q: Can operators use the 6186M-15PT touchscreen while wearing thick work gloves?

A: Yes. Because the 6186M-15PT uses analog resistive touchscreen technology (which relies on physical pressure rather than capacitive electrical skin contact), it responds reliably to gloved hands, styluses, and bare fingers.

Q: What is the difference between the 6186M-15PT and the 6186M-15PN?

A: The “PT” suffix designates a model equipped with an integrated resistive Touchscreen, whereas the “PN” suffix indicates a standard non-touch display screen that requires an external mouse or keyboard for navigation.

Q: Is this monitor a direct replacement for older 6180M or 1500M series displays?

A: In most cases, yes. The 6186M-15PT maintains standard panel cutout dimensions, VGA/DVI video inputs, and mounting hole patterns compatible with legacy Rockwell VersaView 1500M panel-mount enclosures.

Q: Since Rockwell has discontinued this series, are these units original or refurbished?

A: We stock both New Surplus (unused in original factory packaging) and Certified Refurbished units. Every monitor, regardless of stock designation, undergoes our complete video pattern, backlight burn-in, and touch-grid calibration testing prior to shipment.

Q: What warranty comes with this display?

A: We back all our Allen-Bradley 6186M-15PT industrial monitors with a full 12-month operational warranty covering backlight, power board, and touchscreen functionality under standard operating conditions.
