AMAT 0040-96157 300mm Slit Valve Door Assembly

Description

Product Introduction

The Applied Materials 0040-96157 is a 300mm slit valve door used in semiconductor wafer-processing equipment. Available industrial and marketplace records consistently identify the part as a slit valve door, with listings describing it as an ACP SST Viton assembly.

Its job is mechanical, but the tolerance requirements are not forgiving. The door must properly close and seal the wafer-transfer opening between vacuum modules. Surface condition, seal condition, mechanical alignment, and the exact revision can directly affect vacuum integrity and wafer-transfer reliability.

Key Technical Specifications

The SST/Viton identification and 10653300-0224 cross-reference appear in marketplace records, while a historical listing identifies a Rev. 002 version. Do not assume every 0040-96157 is mechanically interchangeable across revisions without checking the actual assembly.

One important correction to watch for: some reseller pages incorrectly describe 0040-96157 as a control module or gas-delivery component. Multiple independent records identify the specific part as a 300mm slit valve door. The physical part and AMAT documentation should take precedence over generic reseller descriptions.

Application Scenarios & The “Trench” Experience

The failure is usually discovered during a PM cycle rather than while somebody is casually looking at the spare-parts cabinet. The slit valve closes, but the chamber will not hold vacuum. The technician replaces the seal. Still leaking. Then the door surface and alignment become suspects.

That is the trap. A slit valve door is part of the vacuum boundary. Mechanical condition matters as much as the nominal part number.

• Semiconductor Fabrication — 300mm Wafer Transfer — Provides the physical door used to isolate wafer-transfer openings between vacuum-processing modules.
• CVD / Etch Equipment — Vacuum Module Isolation — Maintains separation between adjacent process environments during wafer handling.
• Wafer Handling — Load/Transfer Operations — Opens and closes the transfer aperture while maintaining the required chamber isolation when closed.
• Preventive Maintenance — Slit Valve Replacement — Used when door surfaces, seals, or mechanical components have reached an unacceptable condition.
• Legacy AMAT Equipment — Spare Parts Management — Useful as a controlled replacement spare when the installed tool depends on the original AMAT assembly.

Field case — plausible replacement scenario:
A 300mm process tool begins showing intermittent vacuum recovery problems. Pumps check out. The leak detector eventually points toward the transfer-valve area. During inspection, the slit-valve door shows wear around the sealing surface.

The maintenance team has a spare 0040-96157 on site. Instead of attempting an improvised machining repair during production downtime, they compare the replacement’s part marking, revision, dimensions, seal configuration, and mechanical interfaces against the installed assembly.

The replacement is installed according to the tool-specific maintenance procedure, followed by leak testing and valve-position verification.

The machine returns to production.

The important point is not that the part is difficult to install. It is that a few thousandths of an inch of mechanical error in a vacuum assembly can matter more than the nameplate suggests.

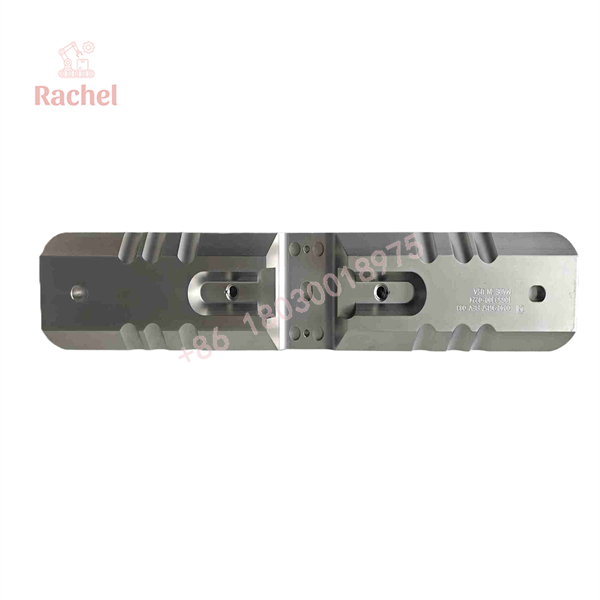

0040-96157

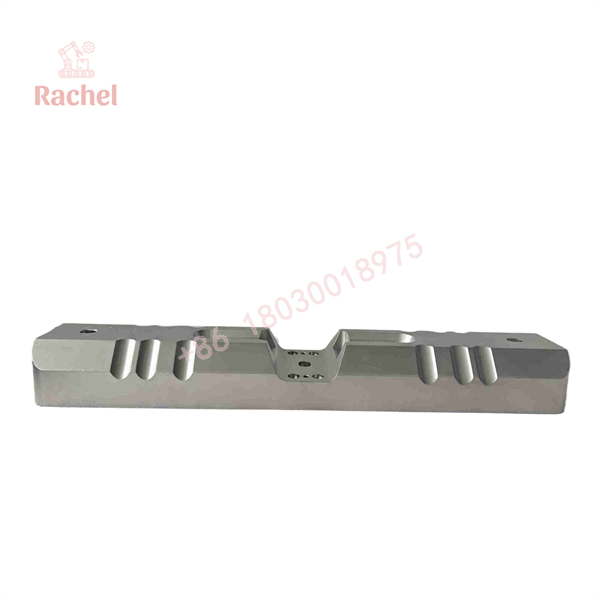

0040-96157

Transparency SOP: Quality Assurance & Testing

A slit valve door cannot be tested like a PLC card. Mechanical inspection and vacuum verification are the useful tests.

1. Inbound Inspection
   • Verify AMAT 0040-96157 markings and available revision information.
   • Inspect the stainless-steel door surface for scratches, dents, corrosion, contamination, or deformation.
   • Check seal-contact areas carefully.
   • Inspect mounting holes, actuator interfaces, and mechanical hardware.
2. Mechanical / Functional Testing
   • Verify free mechanical movement without binding.
   • Check door alignment and travel using the appropriate AMAT equipment or fixture.
   • Confirm actuator engagement and full-open/full-closed positions where applicable.
   • Do not force a door that does not align correctly.
3. Seal & Vacuum Checks
   • Inspect the Viton sealing components for cuts, compression damage, contamination, or aging.
   • Perform leak testing using the tool’s approved vacuum procedure.
   • Where required, perform helium leak testing after installation.
   • Confirm vacuum recovery time against the equipment’s established baseline.
4. Revision Verification
   • Record the door revision and any secondary part number.
   • Compare mechanical dimensions and interfaces with the removed assembly.
   • Do not assume that an older and newer revision are interchangeable simply because both carry 0040-96157.
5. Final QC & Clean Packaging
   • Clean and package the assembly using semiconductor-equipment-appropriate handling procedures.
   • Protect the sealing surface from scratches and contamination.
   • Use appropriate cleanroom/ESD controls as required by the receiving facility.
   • Record photographs and inspection results before shipment.

We don’t just ship boxes. For a vacuum component, the real acceptance test is whether the installed assembly holds the required vacuum and moves correctly through its complete mechanical travel.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Do not judge the door by appearance alone. A slit valve can look perfectly clean and still have a damaged sealing surface or incorrect alignment. Leak-test it after installation.
• ❗ Check the revision. Historical marketplace records specifically show a Rev. 002 version. Photograph the revision marking on the existing door before ordering a replacement.
• ⚠️ Verify the seal material. Current marketplace records associate 0040-96157 with Viton, but do not assume the seal configuration is identical across every revision or tool configuration.
• ❗ Do not mix up 0040-96157 with generic “slit valve” assemblies. The mechanical envelope, actuator interface, sealing geometry, and wafer-transfer opening all have to match. Verify the exact tool/chamber compatibility before installation.

Frequently Asked Questions (FAQ for Conversion)

Q1. What is AMAT 0040-96157?
It is a 300mm slit valve door for Applied Materials semiconductor-processing equipment. Independent industrial listings identify the part specifically as a 300mm slit valve door.

Q2. Is 0040-96157 a control module or electronic component?
No. The strongest part-specific evidence identifies it as a mechanical vacuum/slit-valve door assembly. Some reseller pages incorrectly categorize it as an industrial control module or gas-panel component, so procurement teams should verify the physical assembly rather than relying on category labels.

Q3. Is 10653300-0224 an equivalent part number?
Marketplace records associate 10653300-0224 with 0040-96157, including a listing explicitly describing the assembly as an Applied Materials 300mm slit valve door. Treat this as a cross-reference rather than an automatic interchangeability guarantee. Verify the revision and mechanical configuration.

Q4. What does “ACP SST Viton” mean in listings for this part?
Current and historical marketplace records describe 0040-96157 as DOOR ACP SST VITON. SST refers to stainless steel, while Viton is a fluoroelastomer seal material. The exact material specification should still be confirmed against the tool documentation for the installed assembly.

Q5. Is 0040-96157 hot-swappable?
No. This is a mechanical vacuum component, not an electronic plug-in module. Replacement requires the applicable AMAT tool to be placed in the correct maintenance condition, with vacuum, wafer handling, actuator, and process-gas safety procedures followed.

Q6. Why can a surplus 0040-96157 cost less than an OEM-channel replacement?
Because the secondary market contains parts from surplus inventories, decommissioned semiconductor equipment, maintenance stock, and equipment removals. Current market records show substantial price variation; historical transactions range from relatively low surplus prices to substantially higher OEM-equivalent listings.

Q7. Is a surplus 0040-96157 fake or refurbished?
Not automatically. Current listings include OEM new inventory as well as used OEM parts. One current listing identifies a used unit as OEM, while another supplier lists the part as OEM new.
