Description
Product Introduction
The Applied Materials 0100-71267 is an 8-channel PCI Mezzanine Card (PMC) circuit board designed for AMAT and AKT semiconductor and flat-panel display processing equipment. Mounted directly onto a host VME or SBC carrier card inside the main tool rack, this module expands the system’s real-time I/O capacity by processing high-speed digital and analog signals across multiple dedicated channels.
Featuring onboard logic controllers and high-density mezzanine connectors, the 0100-71267 provides low-latency data throughput required for precise chamber monitoring and motion control. Replacing a degraded or fault-prone PMC mezzanine card clears unhandled PCI bus errors, channel signal dropouts, and host controller communication timeouts during automated tool runs.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Applied Materials (AMAT / AKT) |
| Assembly Part Number | 0100-71267 |
| Board Category | 8-Channel PMC (PCI Mezzanine Card) |
| Tool Compatibility | AMAT Centura, Endura, Precision, and AKT Display Systems |
| Form Factor | IEEE 1386.1 PMC Mezzanine Card |
| Interface Channels | 8 Independent Signal Input/Output Channels |
| Host Connector | High-Density PMC Standoff Bus Connectors |
| Mounting | Carrier Board Standoff Mounting (Internal Sub-Rack) |
| Operating Temp | 10°C to 50°C (50°F to 122°F) |
Application Scenarios & The “Trench” Experience
When a mezzanine PMC card experiences signal drift or channel communication failures, the host VME or Single Board Computer (SBC) cannot complete its real-time polling loops, leading to immediate tool sequence Aborts. In fab environments, long-term exposure to ambient rack heat can degrade surface-mount ICs and cause microscopic solder fracturing under high-density PMC connectors.
- Main Rack I/O Expansion – AMAT & AKT Tool Controllers – Expands host carrier processing capabilities to handle multi-channel sensor and actuator arrays.
- Chamber Motion & Process Polling – Real-Time Data Collection – Delivers low-latency signal routing for high-speed chamber positioning and interlock monitoring.
- Legacy System Life Extension – 200mm / 300mm Production Lines – Direct drop-in replacement that restores full channel count without requiring expensive carrier card or system software upgrades.

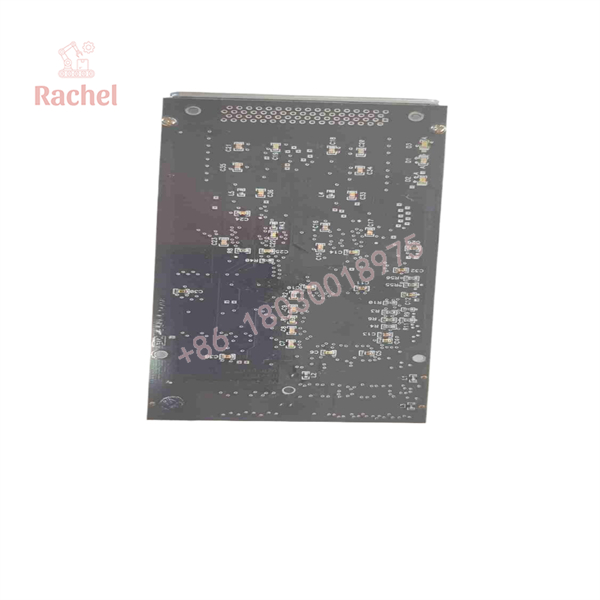

0100-71267

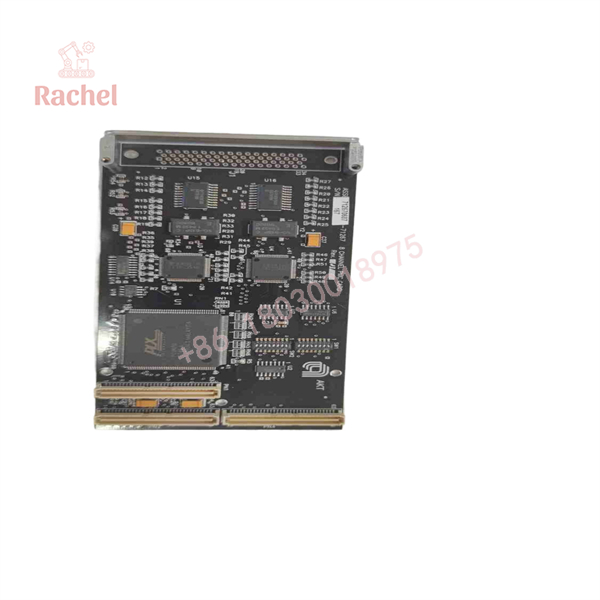

0100-71267
Field Case Study
A semiconductor fab experienced intermittent “PMC Bus Communication Timeout” alarms on a primary tool controller, causing random mid-recipe halts. Diagnostics traced the fault to a degraded signal transceiver channel on the 0100-71267 mezzanine card. Technicians unseated the faulty unit from its host carrier board and installed a pre-tested 0100-71267 PMC replacement. The host controller initialized all 8 channels cleanly, passed system diagnostics, and returned the tool to production within one hour.
Transparency SOP: Quality Assurance & Testing
Every AMAT 0100-71267 board undergoes a strict multi-step bench validation process before inventory entry:
- Inbound Visual Inspection: Microscopic audit checking for trace cracks, burnt ICs, solder joint fatigue, and damaged PMC connector pins.
- Power Rail Integrity Check: Testing impedance across local power distribution networks to ensure no short circuits exist across logic arrays.
- PMC Bus & Channel Simulation: Mounting the board to a carrier test rig to verify active PMC bus handshakes and 8-channel signal switching.
- Thermal Stability Audit: Operating the board under nominal temperature ranges to verify zero signal drift or intermittent opens.
- Anti-Static Protective Packaging: Vacuum-sealed in ESD shielding bags with desiccant and packed in protective foam-lined cartons.
The Veteran’s Tech Trap Guide
- ⚠️ Verify Host Carrier Compatibility: Ensure the host carrier card’s bus voltage (3.3V or 5V I/O signaling) matches the jumper settings or keying on the 0100-71267 before mounting.
- ❗ Never Hot-Swap Mezzanine Cards: Always power down the entire VME/SBC chassis before installing or removing the PMC card. Hot-plugging a mezzanine card will permanently ruin PCI bus transceivers on both the PMC board and the host carrier card.
- ⚠️ Use Correct Standoff Hardware: Ensure all mechanical standoffs and mounting screws are securely fastened. A loose PMC card can cause intermittent pin contact or physical shorts against the carrier board during tool vibration.
- ❗ Enforce Strict ESD Safeguards: Wear a grounded wrist strap when handling raw PCB assemblies to prevent static discharge from damaging delicate surface-mount CMOS logic.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the AMAT 0100-71267 board hot-swappable?
A: No. System power to the host carrier card cage must be shut off prior to installing or removing the board to prevent electrical transients.
Q: Does replacing the 0100-71267 card require software re-flashing?
A: Typically, no. The 0100-71267 acts as a hardware mezzanine interface. As long as DIP switch or jumper configurations match your original unit, the host system software will recognize it automatically upon boot.
Q: Why choose pre-tested surplus AMAT PMC stock over OEM lead times?
A: Many legacy AMAT/AKT PMC cards face long factory lead times or obsolescence. Pre-tested surplus units ship immediately to resolve critical tool downtime.
Q: How do you confirm all 8 channels on the card are functional?
A: Each 0100-71267 board undergoes multi-channel signal simulation and dynamic PMC bus handshake tests on dedicated test rigs prior to listing.
Q: What warranty coverage comes with this replacement module?
A: All reconditioned and surplus Applied Materials circuit boards are backed by a full 12-month replacement warranty.
