Product Introduction & Engineering Value
Temperature feedback is one of the first things I would verify when troubleshooting a legacy AMAT process tool. A bad thermocouple-input assembly can make a healthy heater, sensor, or chamber look defective because the control system is acting on incorrect temperature information. 0100-71141 is identified in current secondary-market records as a TC-input assembly for AMAT/AKT equipment.
There is conflicting reseller information around this part number. Some listings call it a generic control PCB or even a vacuum valve, while the more specific equipment listings identify it as a TC Input Assembly. For procurement, the physical board label and host-tool documentation should take precedence over generic catalog descriptions.
Technical Specifications
| Specification | 0100-71141 |
|---|---|
| Manufacturer | Applied Materials (AMAT) |
| Assembly Description | PCA TC Input |
| Part Number | 0100-71141 |
| Input Type | K-type thermocouple, according to specific inventory descriptions |
| Primary Function | Temperature-sensor input |
| Application | Semiconductor manufacturing equipment |
| Associated Equipment | AMAT / AKT equipment |
| Known Revision | Revision 1 |
| Reported Communication | VMEbus / RS232 on one secondary listing* |
| Reported Supply | 24 VDC on one secondary listing* |
| Reported Dimensions | 234 × 77 × 18 mm for a Rev. 1 used assembly |
| Reported Condition | Used, tested / New / Used |
| Exact Channel Count | Not reliably established from public documentation |
| Exact Accuracy | Not reliably established |
| Exact Input Range | Not reliably established |
*These electrical/interface figures appear in secondary-market descriptions and should not be treated as verified OEM specifications without the applicable AMAT/AKT documentation. The most reliable public evidence establishes the assembly as a TC Input board, rather than providing a complete electrical datasheet.
What is actually well supported?
The following identification has the strongest evidence:

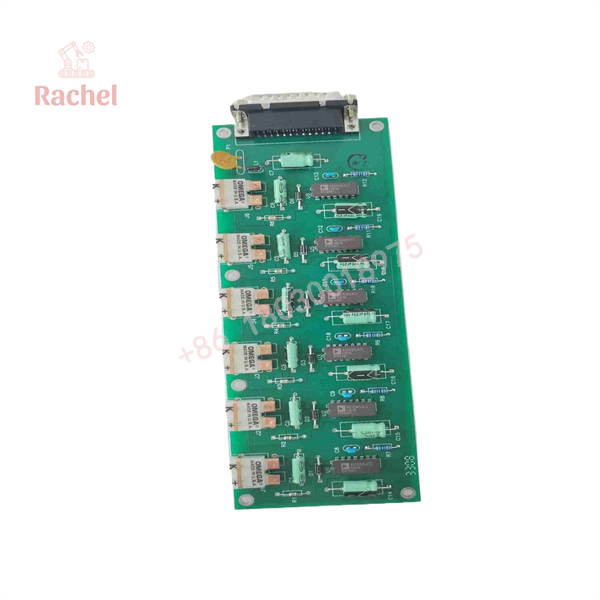

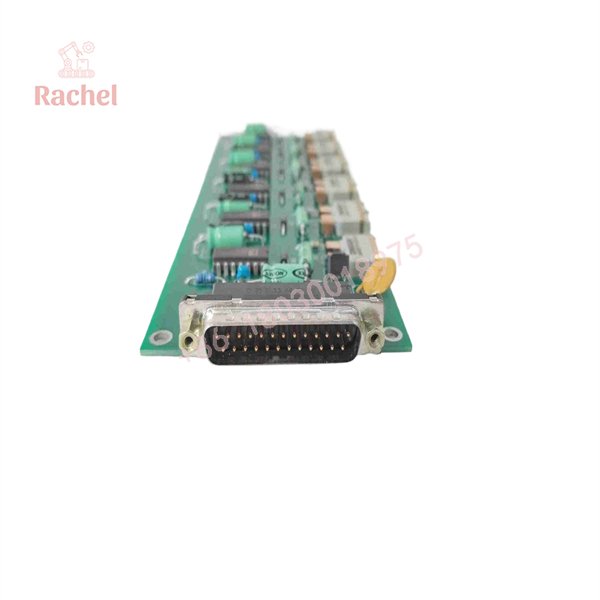

AMAT/AKT 0100-71141 → PCA TC Input Assembly → thermocouple temperature-input function.
One inventory source specifically calls it a K-type thermocouple board, while another describes it as a high-precision thermocouple board.
I would not publish unverified claims such as exact channel count, temperature accuracy, ADC resolution, or measurement range on an engineering procurement page.
0100-71141
0100-71141
Field Application & the “Trench” Experience
A legacy AMAT process module begins reporting temperature instability. The chamber temperature appears to oscillate several degrees even though the heater output is relatively steady.
The first suspect is the heater.
The technician replaces it. The problem remains.
Next, the thermocouple itself is checked and found to be within expected resistance limits. That shifts attention to the temperature-input electronics. The maintenance record identifies the installed board as 0100-71141, and the replacement candidate is marked Revision 1.
After the board is replaced and the temperature channels are checked against a calibrated reference, the apparent temperature oscillation disappears.
This is a common controls lesson: a temperature-control fault is not necessarily a heater fault. The sensor, wiring, cold-junction/reference circuitry, input electronics, and software scaling all sit in the measurement chain.
Specific Application Scenarios
- AMAT/AKT process temperature monitoring where thermocouple signals are acquired by the equipment controller.
- Chamber heater control feedback where inaccurate temperature feedback can cause unnecessary heater replacement.
- Legacy semiconductor equipment maintenance where an obsolete TC-input PCB is more practical to replace than redesign.
- Spare-parts inventory for AMAT/AKT platforms where loss of temperature feedback can prevent process qualification or production operation.
Transparency SOP: QA & Testing
For 0100-71141, testing should concentrate on the complete temperature measurement chain.
1. Identification
Verify:
0100-71141- AMAT/AKT marking
- Revision
- Serial/barcode information
- Connector arrangement
A current European listing specifically records Revision 1 and describes the unit as used and tested.
2. Physical inspection
Inspect the PCB for:
- Connector damage
- Corrosion
- Contamination
- Damaged terminal blocks
- Burned components
- Cracked solder joints
- Evidence of previous rework
3. Input-channel verification
Use calibrated thermocouple simulation equipment rather than simply shorting the inputs. Verify that representative K-type signals produce appropriate temperature readings.
4. Channel linearity
Where the appropriate test fixture is available, test multiple points across the expected operating range.
5. Noise and stability
Monitor the displayed/converted temperature with a stable simulated input. Intermittent noise is especially important because it can cause heater-control cycling without generating an obvious hard fault.
6. Tool-level test
Install on the compatible AMAT/AKT equipment and compare readings against a known-good reference thermometer or calibrated simulator.
A board that passes continuity checks is not necessarily a good thermocouple-input board.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Buying the wrong board because the description says “AMAT PCB”
That is nowhere near enough identification.
The most useful description is PCA TC Input Assembly.
PRO TIP: Put the functional description and complete part number on the RFQ:
AMAT/AKT 0100-71141 — PCA TC Input Assembly
⚠️ Trap #2 — Trusting every published specification
One supplier describes the part as a thermocouple board, another as a generic control PCB, and another as a UHV valve.
Those descriptions cannot all describe the same physical function.
For technical documentation, prioritize the PCA TC Input identification supported by the equipment-parts records.
⚠️ Trap #3 — Replacing the thermocouple before checking the input electronics
If several temperature channels exhibit abnormal behavior simultaneously, replacing individual thermocouples may waste time. Check the common input assembly and signal-reference circuitry.
⚠️ Trap #4 — Testing with a real thermocouple only
A real thermocouple introduces environmental variables, wiring resistance, grounding effects, and temperature gradients.
PRO TIP: Use a calibrated thermocouple simulator during board acceptance testing.
Dynamic FAQ
What is AMAT 0100-71141?
It is an Applied Materials/AKT PCA TC Input Assembly, used for thermocouple temperature acquisition in semiconductor manufacturing equipment.
Is 0100-71141 a thermocouple board?
Yes. Multiple secondary-market records specifically identify it as a TC Input or K-type thermocouple board.
What type of thermocouple does it use?
K-type thermocouple is specifically stated by one part-number inventory source. However, the exact supported input configuration should be confirmed against the target AMAT/AKT tool documentation before installation.
What revision is available?
At least one current used/tested listing identifies Revision 1 for 0100-71141. When replacing an installed board, compare the revision and connector configuration rather than purchasing solely by base part number.
Is New Surplus 0100-71141 available?
Secondary-market listings currently show both new and used examples. One supplier states “New/Used,” while another lists a used, tested Revision 1 assembly. Actual New Surplus status should therefore be verified from the physical unit and packaging.
How do I verify New Surplus authenticity?
Request photographs of the actual 0100-71141 board, including the AMAT/AKT label, revision, serial/barcode information, connectors, PCB markings, and original packaging. The supplier should state whether the unit is New OEM, New Surplus/NOS, Refurbished, or Used-Tested.
What warranty should I request?
For a used or refurbished TC-input board, require the warranty to cover actual functional operation rather than visual condition. One current supplier advertises a 365-day warranty, but that is seller-backed coverage and should not be represented as an Applied Materials manufacturer warranty.
