Description
Product Introduction & Engineering Value
The 0100-09145 is a legacy Applied Materials interface board rather than a general-purpose RS232 converter. Its documented role is to provide the RS232/video interconnection used by compatible AMAT equipment, and multiple semiconductor-equipment inventories specifically associate the part with the P5000 platform.
That distinction matters during replacement. A generic serial interface may reproduce the electrical RS232 signaling and still fail to reproduce the board-level video routing, connector pinout, isolation, or equipment-specific interface expected by the AMAT control architecture. The safest replacement is the exact AMAT assembly or a documented equivalent.
Technical Specifications
| Specification | 0100-09145 |
|---|---|
| Manufacturer | Applied Materials |
| Part Number | 0100-09145 |
| Board Description | PCBA RS232 Video Interconnect |
| Alternative Description | RS232 Video Interconnect Board Assembly |
| Primary Interface | RS232 |
| Video Function | Video interconnection |
| Board Type | Interface PCB assembly |
| Associated Equipment | AMAT P5000 |
| Equipment Class | Semiconductor manufacturing equipment |
| Reported Dimensions | 14.7 × 5.15 × 11.4 cm* |
| Reported Weight | Approximately 0.6 kg* |
| Reported Operating Temperature | 0°C to +60°C* |
| Reported Humidity | 5–95% RH, non-condensing* |
*These dimensional/environmental figures come from a secondary-market listing and should be treated as vendor-reported, not as verified Applied Materials OEM specifications.
AMAT spare-parts catalogs maintained by equipment suppliers consistently describe 0100-09145 as “PCBA RS232VIDEO INTERC”, while SemiStar identifies it as an PCB and lists multiple units, including unopened OEM-box inventory.
Important Identification Note
There are conflicting descriptions online. One seller incorrectly describes the part as a high-precision DC power module, while the more consistent part-number records identify it as an RS232/video interconnect board.
For engineering and procurement purposes, the RS232/video interconnect identification is considerably better supported.

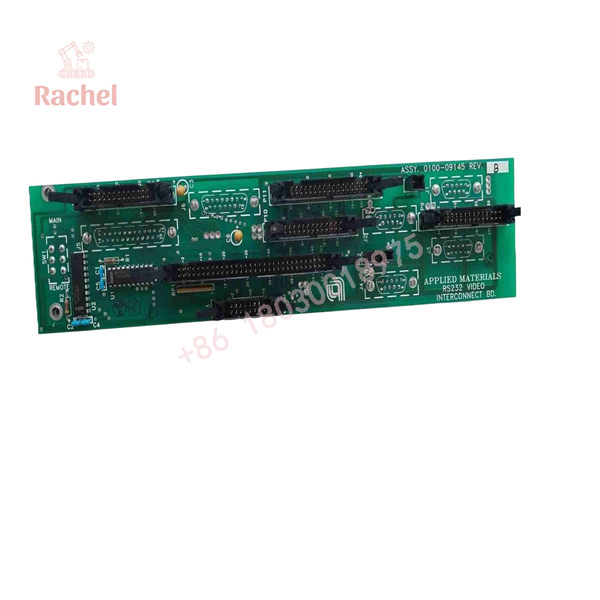

0100-09145

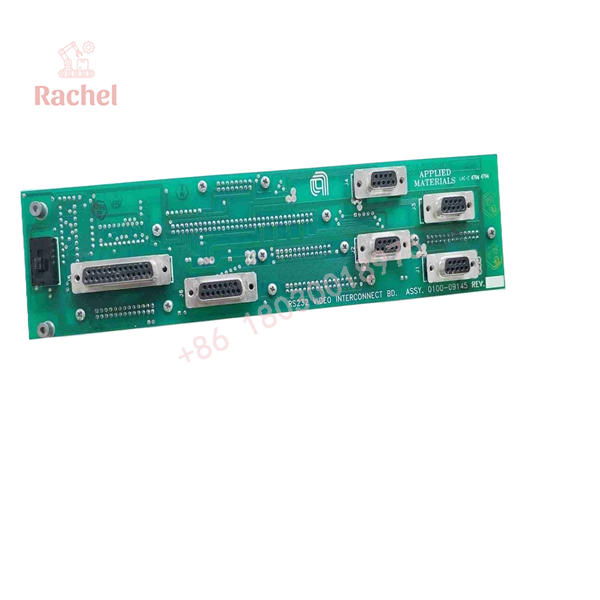

0100-09145
Field Application & the “Trench” Experience
A legacy P5000 tool begins losing its operator video intermittently. The display returns after a reboot, but the problem becomes more frequent. At the same time, certain serially controlled functions stop responding.
The maintenance team initially replaces the external serial cable.
No improvement.
The technician then traces the signal path and finds that the 0100-09145 RS232/video interconnect assembly sits between the equipment electronics and the affected interface. The board is removed and inspected. One connector has visible oxidation, and the board has evidence of repeated thermal cycling.
The replacement board restores both the serial communication path and video interface.
The lesson is straightforward: do not troubleshoot an AMAT interface board as though it were a generic RS232 adapter. The board’s function is defined by the equipment architecture around it.
Specific Application Scenarios
- P5000 equipment video interface — interconnection between AMAT electronics and machine video hardware.
- RS232 equipment-control communications — serial communication paths used by legacy AMAT subsystems.
- Operator monitoring systems — video and serial interface functions within older semiconductor-processing equipment.
- Legacy P5000 recovery projects — replacement of failed interface PCBs without redesigning the machine’s electronics architecture.
Transparency SOP: QA & Testing
For a New Surplus or refurbished 0100-09145, the acceptance procedure should be:
1. Verify the identity
Confirm:
0100-09145- AMAT label
- Board revision, if present
- Serial/barcode information
- Connector configuration
2. Inspect the PCB
Check the board for:
- Connector damage
- Corrosion
- Bent pins
- Cracked solder joints
- Heat damage
- Previous repair work
- Contamination
3. Check RS232 paths
Where appropriate test equipment is available, verify continuity and serial communication across the relevant interface paths.
4. Check video paths
Use a compatible test setup to confirm the video interconnect function. A successful RS232 test alone is not sufficient.
5. Inspect isolation and grounding
Verify shield and ground continuity according to the applicable AMAT system wiring documentation.
6. Tool-level verification
The preferred acceptance test is installation in a compatible P5000 system or approved test fixture, followed by verification of serial communication and video operation.
One secondary-market supplier currently lists the part as in stock, while SemiStar’s inventory contains examples described as new and even unopened OEM-box units.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Buying a generic RS232 adapter
This board is more than an RS232 connector.
Its documented designation is RS232 Video Interconnect, meaning the video path is part of the board’s intended function.
PRO TIP: Match the complete AMAT assembly and connector arrangement instead of substituting a generic serial converter.
⚠️ Trap #2 — Trusting an incorrect online description
At least one current website describes 0100-09145 as a DC power module. That conflicts directly with multiple independent AMAT spare-part inventories identifying it as an RS232/video board.
When descriptions conflict, the physical board label and original AMAT parts documentation win.
⚠️ Trap #3 — Forgetting the P5000 configuration
The part is repeatedly associated with equipment.
Before ordering, provide the seller with the exact machine model and, preferably, a photograph of the installed board.
⚠️ Trap #4 — Calling “tested” a complete functional test
A board can pass an ohmmeter continuity check and still have a failed video circuit or intermittent RS232 channel.
For a production-critical spare, ask whether the supplier tested both serial and video functions.
Dynamic FAQ
What is AMAT 0100-09145?
It is an Applied Materials RS232 video interconnect PCB assembly, used in legacy semiconductor-processing equipment. Multiple parts databases specifically identify it as an RS232/video board.
What equipment uses 0100-09145?
The strongest available inventory evidence associates it with the Applied Materials P5000 platform.
Is 0100-09145 an RS232 board?
Yes. AMAT parts inventories describe it as PCBA RS232VIDEO INTERC, while another inventory identifies it as an PCB.
Does it also handle video?
Yes. The part is consistently described as an RS232 Video Interconnect assembly, so video interconnection is part of its documented function.
Is 0100-09145 still available?
Secondary-market inventory exists. SemiStar currently lists multiple examples, including units described as new and unopened OEM-box stock, while another supplier lists the part as in stock.
How do I verify New Surplus authenticity?
Request photographs of the actual board, AMAT label, complete 0100-09145 part number, revision, serial/barcode label, connectors, and original packaging. The quotation should explicitly identify the condition as New OEM, New Surplus/NOS, Refurbished, or Used-Tested.
What warranty should I request?
For a critical P5000 spare, require the warranty and test scope in writing. One current secondary-market listing advertises a 3-month warranty and states that both used and new units are available. A New Surplus quotation should separately state whether the warranty is seller-backed or manufacturer-backed.
