Product Introduction & Engineering Value
When several discrete machine signals fail together, the problem is often not the field devices. A common digital I/O assembly can sit between the controller and numerous valves, switches, interlocks, and actuator circuits. 0100-76124 fills that role in compatible AMAT equipment and is specifically listed for the Centura Mainframe.
The board is also described by secondary suppliers as a Digital I/O VME PCB Card. That makes backplane compatibility and the exact installed revision important. Public sources do not provide a sufficiently reliable OEM pinout or channel-by-channel electrical specification, so those values should be verified against the target tool rather than copied from reseller catalogs.
Technical Specifications
| Specification | 0100-76124 |
|---|---|
| Manufacturer | Applied Materials (AMAT) |
| Part Number | 0100-76124 |
| Board Description | Digital Input/Output PCB |
| Assembly Description | Digital I/O Board Assembly |
| Primary Platform | Centura Mainframe |
| Board Type | Digital I/O interface |
| Bus / Mounting | VME/backplane reported by secondary sources |
| Documented Revision | Rev. 001 |
| Digital Function | Discrete input/output |
| Typical System Role | Controller-to-field-device interface |
| Reported Weight | 0.35 kg in one used-unit listing |
| Reported Dimensions | 25 × 15 × 3 cm in one supplier listing |
| Exact Channel Count | Not reliably established |
| Input Voltage | Not reliably established from OEM documentation |
| Output Rating | Not reliably established |
| Connector Pinout | Must be verified by tool/revision |
The 0.35 kg figure comes from a used-unit marketplace listing, while another supplier reports 25 × 15 × 3 cm. These are seller measurements, not confirmed OEM mechanical specifications.
Important specification warning
One reseller page publishes a large set of electrical and communications specifications, including 24 VDC, Ethernet, RS-485, analog ±10 V inputs, RFID functionality, and other features. Those claims are inconsistent with the stronger part-specific identification of 0100-76124 as an AMAT Digital I/O PCB and should not be treated as verified specifications.
For engineering documentation, the defensible identification is:
AMAT 0100-76124 → Digital I/O Board / Digital Input Output PCB → Centura Mainframe.

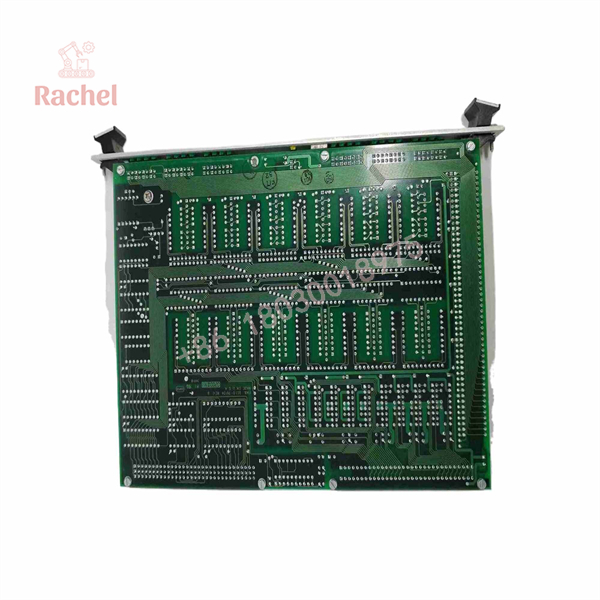

0100-76124

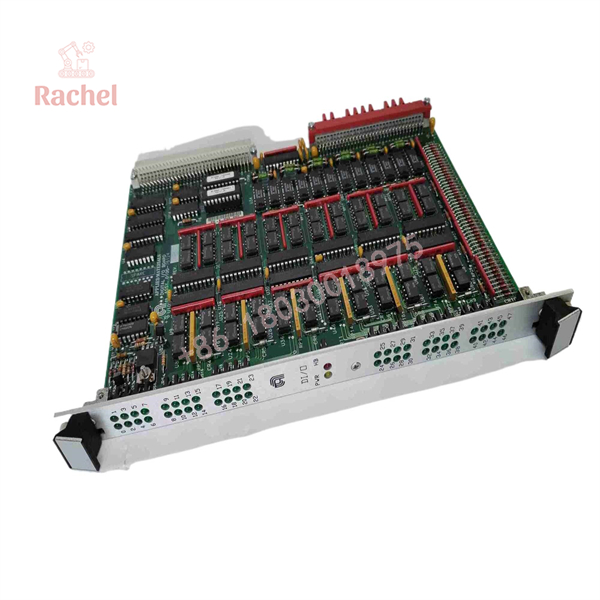

0100-76124
Field Application & the “Trench” Experience
A Centura mainframe begins reporting unrelated equipment faults during an otherwise normal production sequence. A pneumatic valve does not respond correctly. An interlock occasionally drops. A position-confirmation signal becomes unstable.
The technician checks the individual field devices.
The valve works. The switch works. The wiring checks out.
Then the common interface becomes the suspect.
The installed assembly is marked 0100-76124 Rev.001. The replacement is checked against the same part number and revision before installation. After replacement, the technician does not stop at “board recognized.” Every affected discrete signal is exercised through the machine sequence.
That distinction matters. A digital I/O board can initialize correctly while one input or output channel is still defective.
Specific Application Scenarios
- Centura Mainframe discrete control — acquisition of equipment status signals and control of discrete field devices.
- Pneumatic valve command/status circuits — checking the digital signal path between the equipment controller and valve-control hardware.
- Safety and process interlocks — monitoring discrete permissives, door/position switches, and equipment status signals.
- Legacy AMAT tool recovery — replacing a failed digital I/O assembly without redesigning the existing control architecture.
Transparency SOP: QA & Testing
For 0100-76124, a serious acceptance test should be based on individual digital channels, not simply board power-up.
1. Part verification
Confirm:
0100-76124- AMAT / Applied Materials marking
- Revision
- Serial/barcode label
- Connector arrangement
- PCB markings
2. Physical inspection
Check the board for corrosion, contamination, damaged connectors, cracked solder joints, burned components, and evidence of previous repair.
3. Controlled power test
Install the board in an approved test chassis or compatible Centura equipment and verify normal power-up behavior.
4. I/O simulation
Use an appropriate digital I/O test fixture to simulate representative ON/OFF states. Do not rely solely on the equipment software display.
5. Input verification
Confirm that externally generated digital states are correctly detected by the controller.
6. Output verification
Command representative outputs and verify the actual electrical response at the interface.
7. Extended cycling
Repeatedly cycle the I/O points and monitor for intermittent behavior. This is particularly important for used or refurbished stock.
A repair supplier currently documents Rev.001 and offers a 12-month whole-unit warranty on its repair service.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Buying by “Digital I/O Board” alone
There are plenty of AMAT digital I/O assemblies.
The complete part number is what matters:
0100-76124
PRO TIP: Put the part number + revision + target equipment on the purchase order.
⚠️ Trap #2 — Ignoring Rev.001
A repair provider specifically documents 0100-76124 Rev.001.
If the installed board carries a revision marking, photograph it before removing the failed assembly.
Do not assume every revision is interchangeable.
⚠️ Trap #3 — Accepting a power-up test as proof of functionality
This is the classic I/O-board mistake.
The board can power up and communicate with the controller while a single output driver or input channel is defective.
PRO TIP: Require an actual channel-level functional test.
⚠️ Trap #4 — Trusting inflated reseller specifications
One online listing attributes RFID, Ethernet, RS-485, analog input, and automotive-production functions to this AMAT part. Those claims do not fit the stronger Centura Digital I/O identification.
Treat such specifications as unverified unless they can be tied to AMAT documentation.
Dynamic FAQ
What is AMAT 0100-76124?
0100-76124 is an Applied Materials Digital I/O Board / Digital Input Output PCB, associated with the Centura Mainframe.
What does the board do?
It provides the digital interface between the equipment control architecture and discrete field signals. In practical terms, that can include machine status, interlocks, valve commands, switches, and actuator-related signals.
Is 0100-76124 a VME board?
Secondary suppliers describe it as a Digital I/O VME PCB Card or VME/backplane-mounted digital I/O board. The exact backplane configuration should still be verified against the target Centura system.
What revision is documented?
Rev.001 is specifically documented by a repair supplier. If your installed board has a different revision, verify interchangeability before ordering.
Is New Surplus 0100-76124 available?
Yes. Current listings show new, new second-source, used, and refurbished availability. Pancore lists new second-source stock, while another supplier lists a new unit.
Note that New Second Source is not the same thing as New OEM.
How do I verify New Surplus authenticity?
Request photographs of the actual board showing the 0100-76124 label, revision, serial/barcode, PCB markings, connectors, and packaging. Have the seller explicitly classify the unit as New OEM, New Surplus/NOS, New Second Source, Refurbished, or Used-Tested.
What warranty should I request?
Warranty terms vary substantially by supplier. One repair provider advertises a 12-month whole-unit warranty, while another new/second-source listing specifies only 30 days.
For production-critical procurement, specify that warranty coverage applies to functional operation after installation, not merely arrival condition.
