Description
Product Introduction
The Applied Materials 0100-71224 is a safety interlock control circuit board designed for AMAT semiconductor manufacturing platforms, including Centura, Endura, and Precision 5000 tools. Installed within the tool’s primary control bay, this board acts as a hardware safety guard, processing continuous signals from chamber vacuum switches, access panel interlocks, emergency off (EMO) lines, and gas box monitoring loops.
Featuring opto-isolated inputs and onboard relay logic, the 0100-71224 executes instant, hardware-level shutdowns if a safety boundary is breached, bypassing software delays to protect personnel and tool hardware. Replacing a degraded or fault-prone interlock card clears phantom “Interlock Open” alarms, unexpected tool drops, and chamber initialization lockouts during automated production cycles.
Key Technical Specifications
| Parameter | Value |
| Manufacturer | Applied Materials (AMAT) |
| Assembly Part Number | 0100-71224 |
| Board Category | Safety Interlock / Discrete I/O Control PCB |
| Tool Compatibility | AMAT Centura, Endura, Precision 5000 Series |
| Signal Inputs | Opto-Isolated Discrete Safety Channels |
| Output Interlocks | Electromechanical Relays / Hardware Trip Lines |
| Diagnostic Features | Onboard LED Channel Status Indicators |
| Mounting | Internal Sub-Chassis Standoff Mount |
| Operating Temp | 10°C to 50°C (50°F to 122°F) |
Application Scenarios & The “Trench” Experience
When an interlock board loses signal on an optical isolator channel, the tool’s safety circuit trips instantaneously, dropping RF power, closing gas isolation valves, and locking down chamber transfers. In fab maintenance environments, age-related relay contact oxidation or thermal stress on opto-couplers are the primary causes behind unexplainable “Interlock Failure” alarms that prevent chamber pumps down or process starts.
- Process Chamber Protection – Vacuum & Pressure Interlocks – Verifies safe operating pressure thresholds prior to opening slit valves or firing RF plasma.
- Gas Box & Exhaust Safety – Toxic Gas Monitoring Interlocks – Integrates hardware shutoff lines directly into gas distribution manifolds.
- Maintenance Safety Hardware – Panel & Enclosure Interlocks – Ensures high-voltage RF generators and robotics freeze instantly when service access doors open.
Field Case Study
An etch chamber on a 200mm Centura platform experienced intermittent, unrecoverable “Hardware Interlock Open” faults during chamber pump-down, preventing recipe starts. Field engineers verified that all door switches and vacuum gauges were functioning properly, narrowing the fault to a failing signal channel on the internal 0100-71224 board. Swapping in a pre-tested 0100-71224 replacement unit restored immediate signal continuity across the safety loop, allowing the tool to pass all safety self-tests and return to full 24/7 production within 40 minutes.
Transparency SOP: Quality Assurance & Testing
Every AMAT 0100-71224 board passes through a rigorous bench test protocol prior to shipment:
- Inbound Visual Inspection: Microscopic audit checking for trace cracks, burnt components, contact pitting on relays, and terminal header wear.
- Static Power & Impedance Check: Verifying internal power rail integrity to ensure no short circuits exist across logic comparators.
- Interlock Loop Simulation: Injecting discrete input signals across every channel to verify clean opto-coupler triggering and immediate relay contact closure.
- Thermal Stability Audit: Testing board response across operational temperature ranges to eliminate intermittent thermal opens.
- Anti-Static Protective Packaging: Vacuum-sealed in ESD shielding bags with desiccant and packed in protective foam-lined cartons.

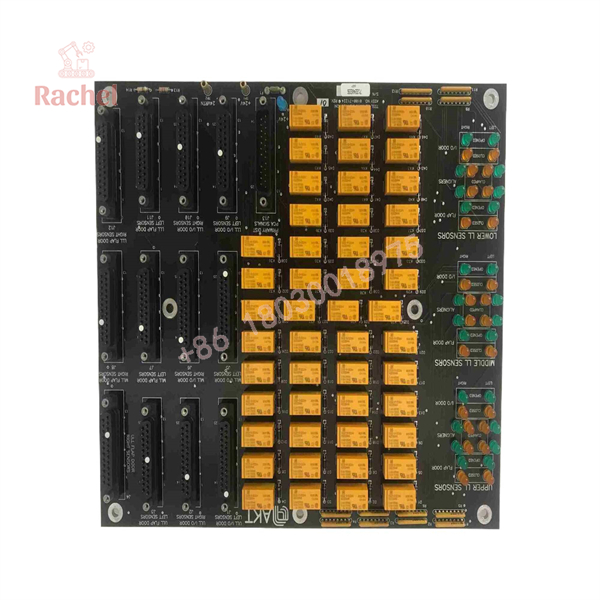

0100-71224

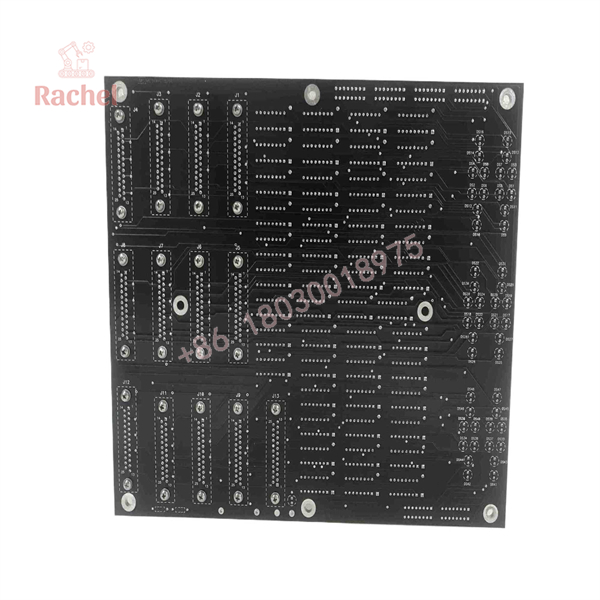

0100-71224
The Veteran’s Tech Trap Guide
- ⚠️ Verify Jumper Blocks & DIP Switches: AMAT interlock cards often feature physical DIP switches or jumpers to enable/disable specific safety channels based on tool chamber configuration. Match your original card’s settings exactly before installation.
- ❗ Isolate Power Before Servicing: Always power down the local 24V DC control bus and rack supply before pulling or inserting the 0100-71224 card to prevent inductive voltage spikes from damaging sensitive opto-couplers.
- ⚠️ Inspect Cable Harness Headers: Check mating harness connectors for loose pins or wire strain. Corroded female socket pins in the tool harness can easily mimic an internal board failure.
- ❗ Enforce Strict ESD Controls: Wear a grounded wrist strap when handling raw PCB assemblies to prevent electrostatic discharge from damaging onboard logic chips.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the AMAT 0100-71224 board hot-swappable?
A: No. System power to the interlock sub-chassis must be turned off prior to replacing the card to avoid arcing and board logic damage.
Q: What do the onboard LEDs indicate on this board?
A: Onboard LEDs provide immediate visual diagnostic feedback for individual safety channel states (such as active closed loop vs. open fault state), speeding up field troubleshooting.
Q: Why choose pre-tested surplus AMAT stock over OEM lead times?
A: Legacy 0100-series AMAT components often face long factory lead times or formal obsolescence. Pre-tested surplus inventory ships immediately to eliminate costly fab tool downtime.
Q: How do you confirm the board’s safety relay logic is reliable?
A: Each 0100-71224 board undergoes physical audits, static power checks, and active multi-channel signal simulation tests on dedicated test rigs prior to listing.
Q: What warranty coverage comes with this replacement module?
A: All reconditioned and surplus Applied Materials circuit boards are backed by a full 12-month replacement warranty.
