AMAT 0090-07135 Semiconductor Equipment Assembly

Product Introduction & Engineering Value

The AMAT 0090-07135 is an Applied Materials proprietary spare part used in semiconductor-processing equipment. Unlike a conventional PLC module, its suitability depends heavily on the exact AMAT platform, subsystem, hardware revision, and equipment configuration. Current industrial inventory sources confirm the part number as an AMAT component, including a listing specifically marked 0090-07135 REV 01.

This is a case where aggressive catalog assumptions are a procurement risk. Some reseller descriptions assign completely different functions to the same part number. Until the actual assembly label, PCB markings, and target tool configuration are checked, the safest engineering description is AMAT equipment-specific control/accessory assembly rather than a generic RF matcher or vacuum controller.

Technical Specifications

Why the Specification Table Is Intentionally Conservative

One secondary-market source describes 0090-07135 as a vacuum-control PCB assembly, claiming analog pressure feedback and throttle-valve control.

Another describes the same number as an RF matching network/plasma-source component, with claimed 13.56 MHz operation and 5 kW power capability.

Yet another source calls it a semiconductor electronic grouping card and assigns DSP/FPGA and RF-control characteristics.

Those descriptions cannot all be correct for the same physical assembly. Consequently, values such as 13.56 MHz, 5 kW, 3 kW continuous power, 10–2000 Ω impedance range, ±10 V analog input, or ±15 VDC supply should not be copied into an engineering specification without confirming the actual AMAT documentation for the target tool.

That distinction is important for procurement.

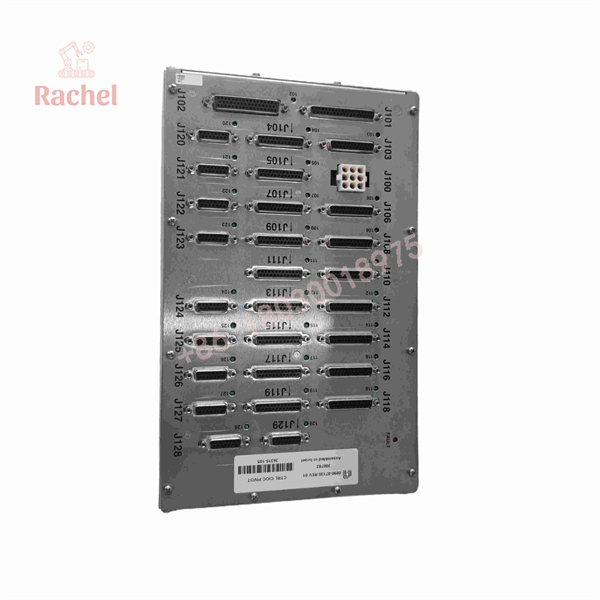

0090-07135

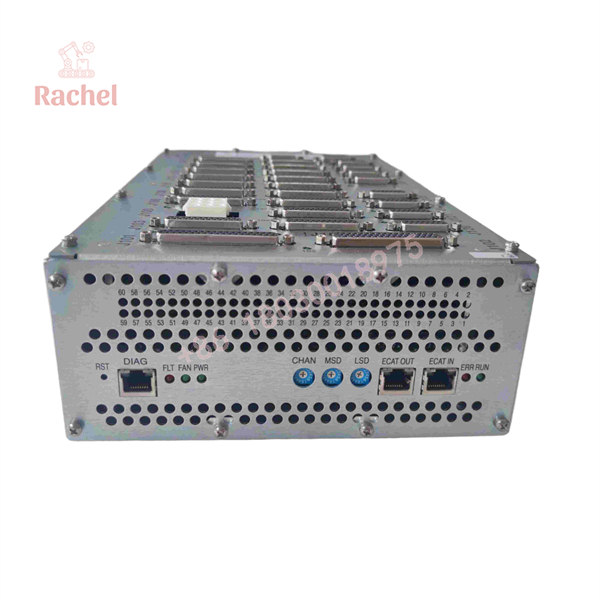

0090-07135

Field Application & the “Trench” Experience

A fab maintenance engineer receives a failure report on an older Applied Materials tool. The technician has identified the failed assembly as 0090-07135, but the purchasing department finds several online descriptions for the same number.

One vendor calls it an RF matching component.

Another calls it a vacuum-control PCB.

A third simply lists it as an AMAT semiconductor accessory.

The experienced engineer does not choose based on the most detailed description. He photographs the failed assembly, records the AMAT part number, revision, serial/barcode information, PCB markings, connectors, and host-tool configuration, then compares those details with the replacement unit.

That approach avoids one of the most expensive mistakes in semiconductor-equipment maintenance: installing a physically similar AMAT spare that belongs to a different subsystem or tool configuration.

Specific Application Scenarios

1. Legacy Applied Materials tool maintenance where an OEM-specific assembly must be sourced against an existing machine configuration.
2. Fab critical-spares inventory where 0090-07135 is held as a contingency part for an installed AMAT platform.
3. Equipment recovery after PCB failure where exact board revision and connector configuration must be matched before installation.
4. Obsolescence management for older AMAT platforms where secondary-market inventory is being evaluated as a maintenance source.

A current industrial inventory database lists AMAT 0090-07135 among semiconductor-equipment spare parts, while another listing specifically identifies a 0090-07135 REV 01 assembly.

Transparency SOP: QA & Testing

For this part, testing should start with identity, not power.

1. Nameplate verification

Confirm:

• 0090-07135
• Complete revision marking
• Serial/barcode information
• Any secondary AMAT assembly number
• Connector and terminal configuration

2. Physical comparison

Compare the replacement directly against the failed assembly:

• PCB dimensions
• Connector locations
• Mounting holes
• Component population
• Daughterboards
• Jumpers
• Labels
• Revision markings

3. Condition assessment

For New Surplus stock, inspect for:

• Original packaging
• ESD packaging
• Manufacturing labels
• Storage damage
• Corrosion
• Connector damage
• Previous rework

4. Electrical inspection

Do not energize the assembly until its intended supply and host chassis are established from the applicable AMAT documentation.

5. Functional testing

The correct test depends entirely on the actual subsystem. If the assembly belongs to a pressure-control circuit, test pressure feedback and valve-control behavior. If it belongs to an RF subsystem, test it using the appropriate RF equipment. Do not substitute a generic bench test for the OEM functional test.

6. Tool-level verification

After installation, verify alarms, interlocks, communications, calibration values, and process behavior against the equipment’s established baseline.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Believing the first Google specification

This part number currently produces contradictory technical descriptions. One supplier calls it a vacuum-control PCB; another calls it an RF matching component.

PRO TIP: For AMAT parts, the actual board label and tool configuration are stronger evidence than a reseller’s SEO description.

⚠️ Trap #2 — Ignoring the revision

At least one current inventory source explicitly lists 0090-07135 REV 01.

If the installed board is marked Rev. 01, record that revision in the purchase specification. Do not assume every 0090-07135 assembly is electrically or functionally identical.

⚠️ Trap #3 — Treating AMAT part numbers like generic industrial components

An AMAT spare can be mechanically compatible while still being wrong for the installed tool configuration. Software revision, chamber configuration, firmware, calibration data, and subsystem architecture may all matter.

⚠️ Trap #4 — Overlooking ESD controls

A semiconductor-equipment control PCB should be handled using appropriate ESD procedures. A board that arrives electrically functional but suffers latent ESD damage during installation is not a successful replacement.

Dynamic FAQ

What is AMAT 0090-07135?

It is an Applied Materials proprietary semiconductor-equipment spare part. Public secondary-market sources disagree on its exact subsystem function, so the precise application should be confirmed against the target AMAT tool and the physical assembly.

Is 0090-07135 an RF matching network?

One secondary-market listing describes it that way, but another identifies the same number as a vacuum-control PCB. The conflicting descriptions mean that RF matching-network specifications should not be treated as verified for this part number without OEM-level documentation.

Is 0090-07135 a vacuum-control PCB?

One supplier explicitly describes it as a vacuum-control PCB assembly associated with AMAT PVD/CVD platforms. However, that identification is not independently confirmed by an accessible Applied Materials datasheet.

What should I provide when ordering a replacement?

Provide the complete 0090-07135 number, revision, serial/barcode information, photographs of the original assembly, and the exact AMAT tool/chamber configuration. This is substantially safer than ordering from the base part number alone.

Is New Surplus 0090-07135 available?

Secondary-market inventory sources currently list the part, including a listing for 0090-07135 REV 01. Availability and condition vary by supplier.

How do I verify New Surplus authenticity?

Request photographs of the actual unit and original packaging, including the AMAT label, part number, revision, barcode/serial information, and ESD packaging. A seller’s statement that the part is “new” is not enough to establish unused OEM surplus status.

What warranty should I request?

Warranty is supplier-specific. One current secondary-market listing advertises a 12-month warranty, but that is a seller warranty rather than evidence of an Applied Materials manufacturer warranty. For a critical fab spare, require the quotation to specify New OEM, New Surplus/NOS, or Refurbished, along with the exact warranty and return terms.
