AMAT 0100-71229 Auxiliary CPU Board AKT CVD

Product Introduction & Engineering Value

The 0100-71229 is a legacy AMAT control assembly where part-number matching matters more than generic CPU specifications. Current equipment records identify it as an Auxiliary CPU Board, while other inventory records associate the same number with a multi-vacuum-gauge control assembly.

That difference is important during procurement. Public sources do not provide a reliable OEM datasheet establishing processor type, memory capacity, operating system, or exact I/O architecture. The safest approach is to match the physical board, revision, host-tool configuration, and installed connectors before approving a replacement.

Technical Specifications

The 305 × 137 × 24 mm dimensions and Revision 1 identification come from an equipment-machinery listing for a used, tested AMAT CPU board.

One seller additionally describes the part as an AKT 40KA CVD AC power-box CPU board assembly, but that description conflicts with other records and should be treated as equipment-specific rather than a universal specification for every 0100-71229.

Specification caution

There is unusually poor consistency among online descriptions of this part.

Some sources call it:

• Auxiliary CPU Board
• CPU Board
• Industrial Control Board
• Multi Vacuum Gauge Control Board
• 40KA CVD AC Power Box CPU Assembly

The auxiliary-CPU/CPU-board identification is supported by multiple independent records, including a dedicated AMAT parts catalog and a used equipment listing.

For an engineering product page, I would not invent processor speed, RAM, bus architecture, voltage, or communication-protocol specifications without documentation for the exact revision.

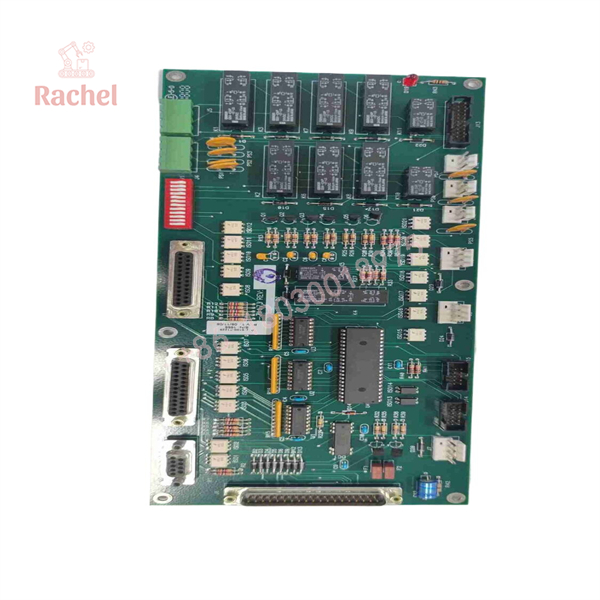

0100-71229

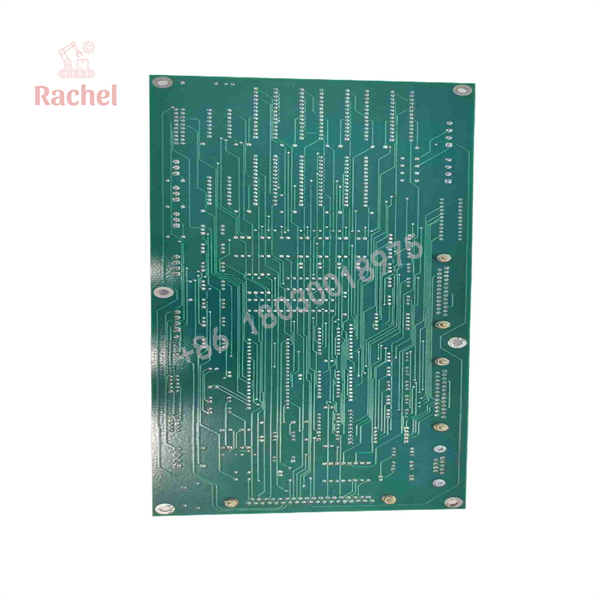

0100-71229

Field Application & the “Trench” Experience

A legacy AMAT tool starts throwing intermittent controller faults during startup. The vacuum hardware checks out. The gauge signals are present. The problem disappears after a cold restart, then returns several hours later.

The maintenance team initially suspects the vacuum instrumentation.

The more experienced technician looks at the common electronics path instead.

The installed board is marked 0100-71229, Revision 1. Because this board has been identified in parts inventories as an auxiliary CPU/control assembly—and in another inventory as a multi-vacuum-gauge control board—the replacement decision is based on the exact machine configuration rather than simply buying a board with similar dimensions.

After replacement, the technician verifies controller initialization, gauge communication, alarm status, and several complete equipment start/stop cycles.

The key lesson: intermittent controller faults on legacy semiconductor tools often originate in the common control electronics, not in the sensor that happens to generate the first visible alarm.

Specific Application Scenarios

1. AMAT/AKT CVD equipment control where the board performs auxiliary processing within the equipment control architecture.
2. Vacuum-gauge control and monitoring where the 0100-71229 assembly is configured as part of a multi-gauge control subsystem.
3. Legacy semiconductor equipment recovery where the original CPU architecture must remain in service.
4. Critical spare inventory for older AMAT/AKT platforms where an unavailable CPU board can stop an otherwise serviceable production tool.

Transparency SOP: QA & Testing

For this particular board, the acceptance test should be structured around controller initialization and host-equipment compatibility, not merely a power-on check.

1. Identity verification

Confirm:

• 0100-71229
• AMAT / Applied Materials marking
• AKT marking where applicable
• Revision number
• Serial number
• Barcode
• Connector configuration

2. Physical inspection

Inspect the PCB for connector wear, corrosion, contamination, cracked solder joints, damaged components, and evidence of previous repair.

3. Board-level power test

Apply the appropriate supply through a controlled test fixture or compatible chassis. Verify current draw and startup behavior against a known-good reference.

4. Processor initialization

Confirm that the board completes its expected initialization sequence and that diagnostic indicators behave normally.

5. Host communication

Install the board in a compatible VME/backplane or equipment electronics assembly, as applicable, and verify that the host system recognizes the board.

6. Functional verification

For equipment configured around vacuum-gauge control, verify representative gauge acquisition and alarm behavior rather than merely checking that the CPU boots.

7. Extended run

An intermittent CPU/control-board fault may only appear after thermal cycling. A meaningful acceptance test should therefore include extended operation before the part is classified as production-ready.

A current supplier lists the 0100-71229 as in stock, while another equipment supplier identifies a Revision 1 unit as used and tested.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Treating “Auxiliary CPU” as enough identification

It isn’t.

The same part number appears in inventories with different functional descriptions, including multi-vacuum-gauge control board and CVD CPU assembly.

PRO TIP: Give the supplier the machine model, board photograph, revision, and complete 0100-71229 number.

⚠️ Trap #2 — Assuming Revision 1 is universally interchangeable

A Revision 1 board is documented, but public sources do not establish a complete revision-interchangeability matrix.

Do not assume that another revision or modified assembly is equivalent simply because the base number matches.

⚠️ Trap #3 — Buying on processor specifications

For a legacy AMAT CPU board, “same CPU speed” is not an adequate equivalency test.

The firmware, memory configuration, I/O resources, backplane behavior, and host software are equally important.

⚠️ Trap #4 — Accepting a generic “tested” claim

A seller may test the board only for power-up.

That does not prove correct operation in an AMAT tool.

PRO TIP: Ask exactly what was tested: POST/initialization, host recognition, communication, gauge acquisition, alarm handling, and extended operation.

Dynamic FAQ

What is AMAT 0100-71229?

It is an Applied Materials / AKT electronic control board, commonly identified as an auxiliary CPU or CPU board for legacy semiconductor equipment.

What equipment is associated with 0100-71229?

Public inventory records associate it with AMAT/AKT equipment, including equipment described as CVD-related. A separate parts inventory identifies it as a multi-vacuum-gauge control board.

What revision is documented?

Revision 1 is explicitly documented in a current used-equipment listing, with dimensions of 305 × 137 × 24 mm.

Is 0100-71229 a CPU board or a vacuum-gauge board?

Both descriptions appear in secondary-market records. The strongest part-specific sources call it an auxiliary CPU/CPU board, while another AMAT parts inventory describes the assembly as a multi-vacuum-gauge control board.

This likely reflects equipment-specific function or assembly designation. Verify against the target tool before substitution.

Is New Surplus 0100-71229 available?

Secondary-market listings currently show new and used inventory, including a supplier that states original/new and used availability. Another listing identifies a used, tested Revision 1 unit.

“New” should not automatically be interpreted as New Surplus/NOS. Request photographs and packaging evidence.

How do I verify New Surplus authenticity?

Request photographs showing the actual 0100-71229 label, revision, serial/barcode, PCB markings, connectors, and packaging. The supplier should explicitly classify the condition as New OEM, New Surplus/NOS, Refurbished, or Used-Tested.

What warranty should I request?

For this type of legacy CPU/control board, specify a written warranty covering functional operation. One supplier currently advertises 365-day warranty coverage, while other sellers offer different terms.
