AMPCONTROL 101656 Mining Protection Relay Module

Description

Product Introduction

The Ampcontrol 101656 is a ruggedized industrial electronic protection module engineered specifically for harsh mining, tunneling, and heavy industrial power distribution environments. Designed to operate within main distribution switchboards and underground substations, this module monitors critical electrical parameters to prevent hazardous ground faults and equipment insulation breakdowns.

Unlike standard commercial protection relays, the 101656 is built with heavy-duty noise immunity filtering and vibration-resistant internals to survive extreme environmental stress. It interfaces directly with breaker trip circuits and control interlocks, delivering microsecond fault detection that safeguards both operating personnel and high-voltage motor assets.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It is 3:15 AM in an underground mining operation or heavy quarry site. A continuous miner or main dewatering pump trips out on an unresolvable earth fault fault alarm. The shift manager is watching production halt while water levels rise in the lower sump, risking millions of dollars in equipment damage. The field cabling tests clean, but the legacy protection relay inside the explosion-proof enclosure refuses to reset due to internal drift. You don’t have weeks to re-engineer the starter panel—you need an exact, drop-in Ampcontrol 101656 replacement unit to restore safety interlocks and start pumping immediately.

• Underground Mining & Tunneling – Distribution breaker protection – Monitors earth leakage and continuity loops across trailing cables.
• Heavy Quarry & Aggregate Plants – Crusher motor protection – Prevents thermal and ground insulation damage under continuous high-load operations.
• Industrial Substation Enclosures – Feeder protection – Delivers fail-safe trip signals to main circuit breakers during asymmetrical phase or insulation faults.

Field Case Study: An aggregate processing facility experienced recurring false trips on a primary conveyor drive during high-humidity shifts. The maintenance tech isolated the root cause to thermal component degradation on the original relay logic card. Swapping in a pre-tested 101656 replacement during a 30-minute planned stoppage cleared the false trip conditions and allowed the plant to maintain full throughput without changing panel wiring.

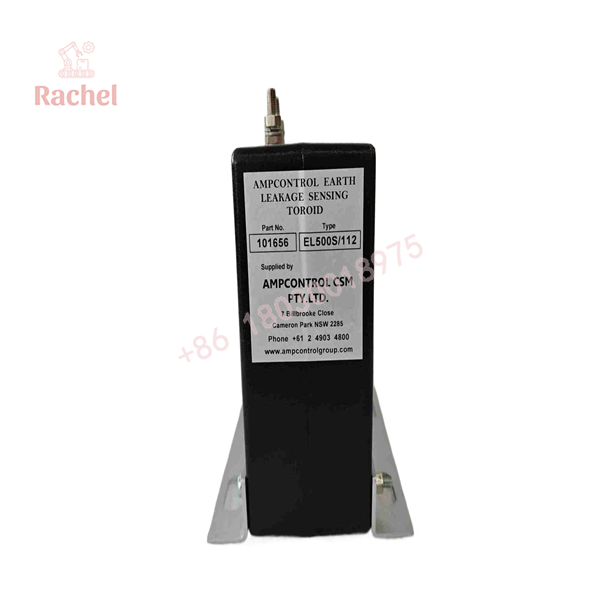

101656

101656

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual industrial test rigs. Every Ampcontrol 101656 module passes through our strict five-step quality verification process:

1. Inbound Visual & Mechanical Inspection: Microscopic check for housing cracks, terminal strip corrosion, internal component discoloration, and anti-counterfeit markings.
2. Power Rail & Insulation Resistance Test: High-potential dielectric checks across isolated terminal blocks and internal power supply rails.
3. Live Signal Injection & Trip Testing: Injecting precise test signals to verify trip threshold accuracy, LED fault status indication, and relay contact response times.
4. Thermal Stability Soak: Running the module under continuous control voltage in an elevated thermal chamber to ensure zero component drift under heat.
5. ESD Cleaning & Protective Packaging: Fully cleaned with industrial solvent, tagged with serial numbers, and vacuum-sealed in static-shielding ESD bags.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ Double-Check Control Voltage Ratings! Ampcontrol protection modules are manufactured in various voltage configurations. Always verify that the supply voltage terminals on your replacement 101656 match your control transformer output before powering up, or you risk burning out the internal power supply board.

❗ Set DIP Switches and Potentiometers Before Installation. Take a high-resolution photo of the trip delay and sensitivity potentiometers or DIP switches on your old relay before taking it out of service. Matching these settings on the replacement unit prevents unexpected nuisance trips upon startup.

⚠️ Check Terminal Screw Torque. In high-vibration mining environments, loose screw terminals create high-resistance contacts that mimic ground faults. Use a calibrated torque screwdriver when securing wiring connections into the terminal blocks.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the Ampcontrol 101656 hot-swappable?

A: No. Attempting to pull or install this protection relay while the control circuit is live can arc the trip contacts and trip upstream safety breakers. Always isolate power to the control panel before swapping modules.

Q: Does replacing this module require recalibrating field sensors?

A: Generally, no. The 101656 operates based on fixed or potentiometer-adjusted thresholds for standard current transformers or zero-sequence sensors. As long as your terminal connections and onboard setting dials match the original hardware profile, it is a direct drop-in replacement.

Q: Why buy surplus or refurbished Ampcontrol modules instead of buying new?

A: Legacy Ampcontrol mining modules often carry long factory lead times or have been phased out by newer digital ranges. Sourcing tested surplus or refurbished stock gets your heavy machinery running immediately without costly panel re-engineering.

Q: What warranty comes with this component?

A: Every new surplus and fully bench-tested refurbished Ampcontrol 101656 module includes a full 12-month operational replacement warranty.
