ASM 4552200 PCB Board

Description

Product Introduction & Engineering Value

The ASM 4552200 is identified in current spare-parts listings as a Fico/ASMFICO PCB board for the AMS-36-M platform. This is a much more defensible identification than assigning it a generic sensor, servo, or motion-control function without manufacturer documentation.

For maintenance teams supporting legacy equipment, the important matching criteria are the complete board number, revision marking, connector arrangement, and host-machine configuration. Related listings group 4552200, 4552202A, 4552164, and 4552183 under AMS-36-M PCB hardware, but that does not establish that these part numbers are electrically interchangeable.

Technical Specifications

Specification caution: Publicly indexed sources establish the AMS-36-M PCB-board association, but I did not find a manufacturer datasheet that reliably specifies the 4552200’s voltage rails, I/O count, communication protocol, environmental ratings, or exact circuit function. Those values should not be fabricated for procurement documentation.

Field Application & The “Trench” Experience

A typical maintenance situation is an older AMS-36-M machine experiencing an intermittent electronic-board fault. The machine may still power up, making the problem easy to misdiagnose as a sensor, wiring, or software issue. Once the maintenance engineer isolates the fault to the PCB assembly, the practical objective becomes finding an exact board-level replacement rather than replacing an entire machine-control assembly.

Before installing an ASM 4552200, the technician records the original board number and revision, photographs all connectors and configuration components, and verifies the board against the machine documentation. After replacement, the affected machine functions should be tested in a controlled sequence before production resumes.

Specific Application Scenarios

• AMS-36-M equipment repair where a failed PCB must be replaced without replacing the complete control system.
• Legacy Fico equipment maintenance requiring stocked electronic spares for extended machine service life.
• Planned maintenance inventory where an identified 4552200 spare is held against a known machine configuration.

4552200

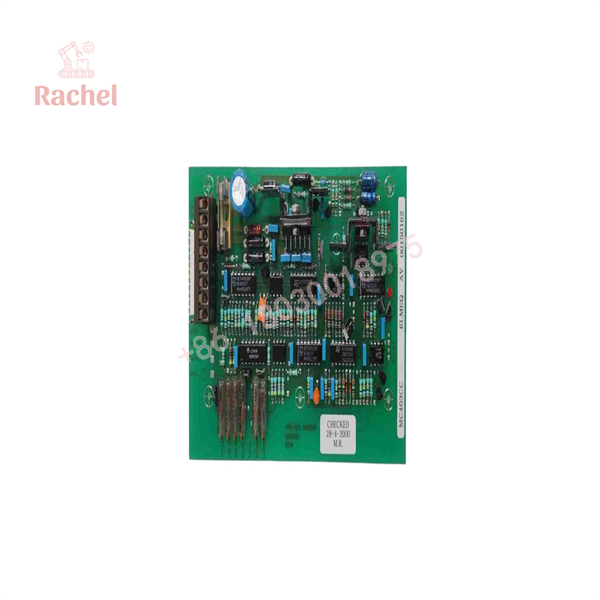

4552200

Transparency SOP: QA & Testing

For a new-surplus or refurbished ASM 4552200, a credible inspection process should include:

1. Identity verification
Confirm the 4552200 marking, manufacturer identification, PCB revision, serial label, and any secondary board numbers.

2. Physical inspection
Inspect connectors, solder joints, PCB traces, components, mounting points, and labels for corrosion, mechanical damage, contamination, or previous repair.

3. Configuration comparison
Compare jumpers, switches, daughterboards, connector positions, and revision markings against the customer’s existing board.

4. Electrical testing
Where an appropriate AMS-36-M test setup or engineering procedure is available, verify power rails and relevant circuit behavior.

5. Functional verification
Test the board in a compatible host system when the required equipment is available. The test scope should be documented rather than described generically as a “full test.”

6. Shipment QA
Record the actual condition and part identification of the supplied unit before packing.

“New surplus” should describe the actual inventory condition of the specific board. It should not be used to imply current-production OEM status.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Do not treat related Fico numbers as automatic substitutes.
Listings group 4552200, 4552202A, 4552164, and 4552183 as AMS-36-M PCB boards, but the available source does not establish electrical interchangeability. Match the exact number first.

⚠️ Trap #2 — Record the PCB revision.
A replacement with the same base part number can still require additional verification if the physical revision, component population, or configuration differs from the installed board.

PRO TIP: Photograph the original board before removal. Capture the component side, connector side, labels, revision codes, jumpers, and cable positions. That record can prevent an expensive commissioning mistake.

⚠️ Trap #3 — A physical connector match proves very little.
Do not energize a replacement solely because the connectors and mounting holes line up. Confirm the host AMS-36-M configuration and applicable electrical requirements first.

FAQ

1. What is ASM 4552200?

ASM 4552200 is identified by current industrial spare-parts listings as a Fico / ASMFICO PCB board associated with the AMS-36-M system.

2. Is 4552200 a complete controller?

The available documentation does not support describing it as a complete controller. It is listed specifically as a PCB board for the AMS-36-M platform.

3. Are 4552200 and 4552183 interchangeable?

Both numbers appear in an AMS-36-M PCB listing, but there is insufficient public technical documentation to confirm direct interchangeability. Verify the machine configuration and board revision before substitution.

4. Can ASM 4552200 be supplied as new surplus?

Yes, the part is listed in industrial automation spare-parts inventories. The actual condition—new surplus, used, or refurbished—should be confirmed for the individual unit being offered.

5. What should I provide when ordering a replacement?

Provide the 4552200 part number, PCB revision, equipment model, clear photographs of the board and labels, and any additional numbers printed on the PCB. This is particularly important for legacy AMS-36-M equipment.

6. Is a warranty available?

Warranty terms depend on the supplier and the condition of the specific board. Confirm the warranty period, coverage, and return conditions before purchase.
