Product Introduction & Engineering Value
Industrial automation panels relying on DirectLOGIC 405 racks require high-density digital I/O cards that can switch auxiliary loads reliably without consuming excessive backplane slots. The AutomationDirect D4-32TD2 module delivers 32 channels of DC sinking output capability, making it an efficient choice for controlling banks of solenoid valves, indicator lamps, and interposing relays.
Engineered for straightforward rack installation and cabinet wiring, this module helps maintenance teams maximize panel space while maintaining robust electrical isolation. Plant technicians rely on its drop-in compatibility and front-panel status indicators to troubleshoot load states and execute rapid module swaps during scheduled maintenance windows.
Technical Specifications
- System Family: AutomationDirect DirectLOGIC DL405 PLC Platform
- Module Type: Discrete DC Transistor Output Module
- Number of Channels: 32 output points (arranged in common groups)
- Output Type: DC Sinking (open collector transistor output)
- Operating Voltage Range: 12 to 24 V DC nominal load power supply
- Maximum Output Current: Per-point and per-common current limits per OEM specifications
- Wiring Connection: Removable terminal block (connector sold separately or included per variant)
- Diagnostic Features: Front-panel LED status indicators for each individual output channel state
- Operating Ambient Temperature: 0°C to 60°C (32°F to 140°F) standard industrial control enclosure range

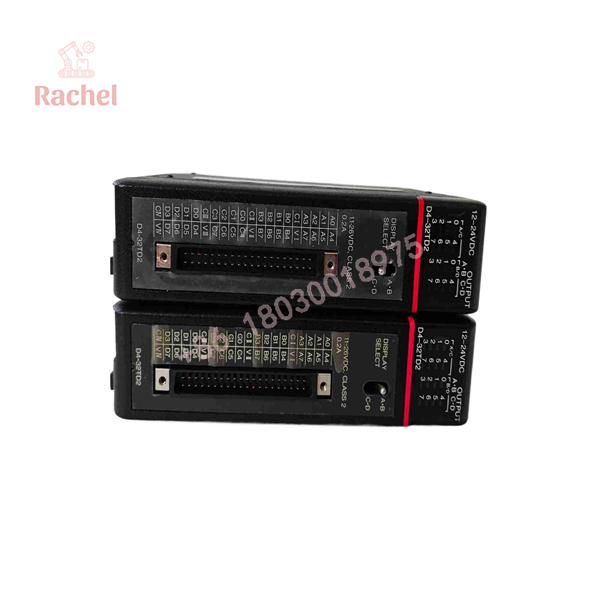

D4-32TD2

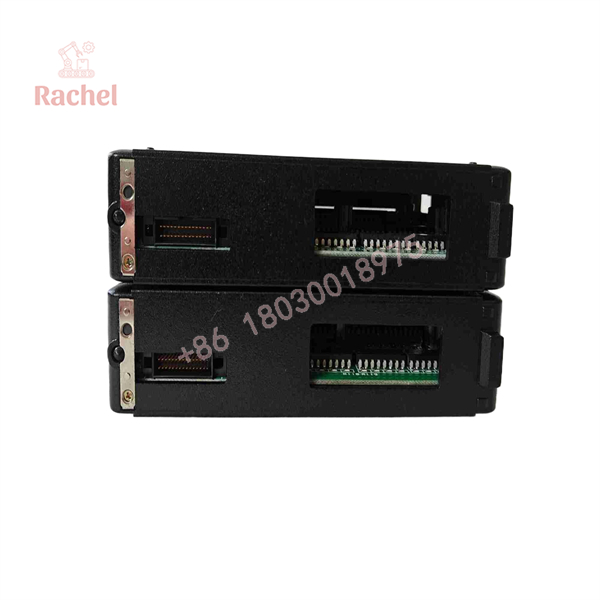

D4-32TD2
Field Application & The “Trench” Experience
During a high-speed production shift on an automated sorting line, a bank of pneumatic solenoid valves stopped actuating when a channel output driver on an aging DL405 discrete card failed internally. Halting the line to rewire a different I/O configuration would have severely impacted daily production quotas. The panel technician retrieved a verified New Surplus AutomationDirect D4-32TD2 module from the spares cabinet, unplugged the removable terminal connector block from the failed card, swapped the physical module into the base slot, and plugged the wiring block back in. The channel indicators synchronized instantly upon controller boot-up, restoring full pneumatic actuation without touching a single field wire.
Targeted Application Scenarios:
- Automated Packaging & Sorting Lines: Controlling high-cycle pneumatic solenoid banks and indicator towers.
- Material Handling Conveyor Systems: Managing discrete digital interlocks and motor starter command relays.
Transparency SOP: QA & Testing
1.Visual & Connector Inspection:10 min.
Examine the backplane connector pins, removable terminal block receptacles, and enclosure housing for physical damage or wear.
2.Rack Power & Logic Test:30 min.
Seat the D4-32TD2 module into a live DL405 base rack fixture to verify internal logic power rail stability and CPU communication handshakes.
3.Channel Switching Verification:1 hr.
Cycle all 32 output channels individually using test software to confirm transistor switching integrity, LED illumination, and voltage drop limits.
4.Thermal Chamber Burn-In:24 hrs.
Operate the module continuously under an active load test cycle in a thermal chamber for 24 hours to screen out infant mortality component failures.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ SINKING VS. SOURCING WIRING HAZARD: The D4-32TD2 is a DC sinking output module, meaning it switches the negative (DC Common) side of the load. Connecting sourcing-type field devices or reversing external power polarities can cause short circuits that permanently damage internal transistor output drivers. Always verify your field wiring schematic against the module’s sinking architecture.
PRO TIP: When replacing a high-density 32-point card, always label your removable terminal connector block before unplugging it from the failed module. Accidentally mixing up terminal rows during a hurried field swap can send 24V DC power into incorrect sensor or actuator loops.
Dynamic FAQ
- Q: Is the D4-32TD2 compatible with all DirectLOGIC DL405 base racks?
- A: Yes, it is designed to slot directly into standard DL405 series PLC local and expansion base racks.
- Q: Does the module include the removable terminal block connector?
- A: Depending on whether you purchase a brand-new boxed unit or verified surplus, terminal blocks are typically included, but always confirm package contents if you are replacing a damaged connector block.
- Q: Are your AutomationDirect replacement modules brand new or surplus?
- A: Our stock consists of verified New Surplus and thoroughly reconditioned, fully bench-tested units ready for immediate plant deployment.
- Q: What warranty coverage comes with this module?
- A: Every D4-32TD2 unit is backed by our comprehensive 12-month full replacement warranty covering all functional performance aspects.
