Description
Product Introduction
The BARTEC 07-7331-2301/0000 (MODEX series) is a 16-channel discrete digital output remote I/O interface engineered specifically for Zone 1 and Zone 21 hazardous industrial environments. Communicating natively over PROFIBUS DP, this module routes 24 VDC switching logic directly from central process control systems out to field actuators, pilot lamps, and indicator horns mounted in classified plant areas.
Featuring Ex e (increased safety) protection, the 07-7331-23010000 eliminates the need for bulky explosion-proof cast enclosures or external interposing relay racks. Each of its 16 channels provides up to 500 mA of driving current, enabling direct switching of heavy-duty field solenoid valves and contactors while preserving system-wide diagnostic tracking and field cabinet space.
Key Technical Specifications
| Parameter | Value |
| Product Series | BARTEC MODEX PROFIBUS Interface |
| Protection Type | Ex e (Increased Safety) / Zone 1, Zone 21 rated |
| Fieldbus Protocol | PROFIBUS DP |
| Number of Channels | 16 discrete digital outputs |
| Main Supply Voltage (L+, L-) | 24 VDC (20 to 30 VDC range) |
| Output Supply Voltage (U+, U-) | 24 VDC (18 to 30 VDC range) |
| Output Current Rating | 500 mA max per channel |
| Status Displays | 16 x yellow output LEDs, system bus status LEDs |
| Housing Material | High-quality thermoplastic enclosure |
| Operating/Storage Temp | -40 °C to +60 °C storage window |
Application Scenarios & The “Trench” Experience
Picture this: It’s 2:15 AM on a sub-zero winter night at an offshore gas treatment plant. An emergency alarm triggers on a secondary condensate separation skid after a bank of heavy ESD solenoid valves stops responding. A line fault spiked the 24V supply, destroying four output transistors on a legacy MODEX card inside a local Ex e junction box. The entire skid’s safety interlocks freeze, threatening a complete platform shutdown. You don’t have the luxury of re-wiring a non-Ex cabinet or waiting weeks for a modern Ethernet-APL redesign. You pull an exact-match BARTEC 07-7331-2301/0000 card off the warehouse rack, match the front-panel PROFIBUS dip-switch address, slide it into place, and restore direct valve control before production trips.
- Offshore Gas Processing: Direct driving of 24 VDC hydraulic and pneumatic pilot solenoids in classified Zone 1 skid panels.
- Chemical Tank Farms: Operating local status beacons, audible sirens, and motorized valve actuators across outdoor hazardous enclosures.
- Pharmaceutical Batching: Managing discrete manifold valves and process interlocks requiring Ex e rated field bus distribution.

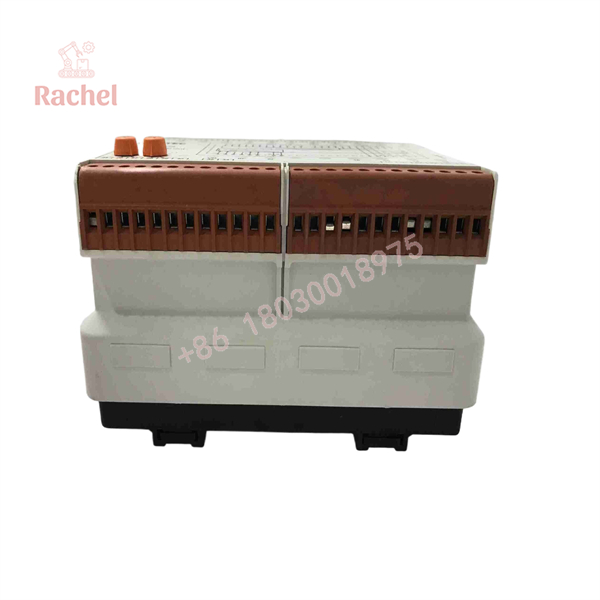

07-7331-23010000

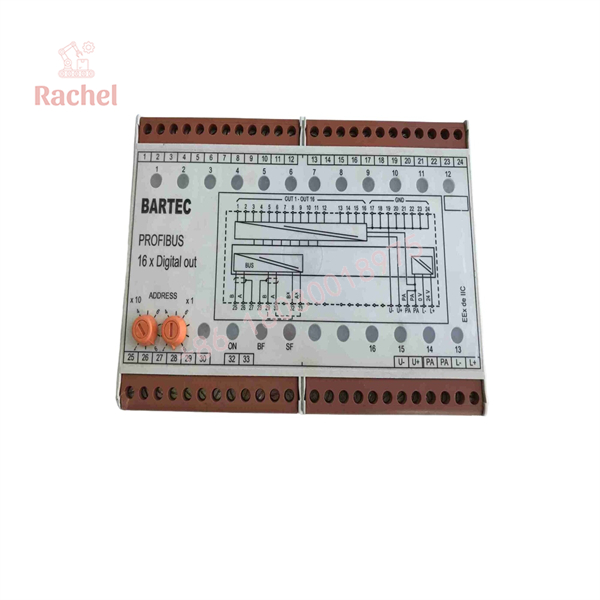

07-7331-23010000
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual PROFIBUS DP test benches. Every surplus 07-7331-23010000 module undergoes a strict verification protocol before leaving our warehouse:
- Inbound Hazardous Seals Check: Physical examination for housing cracks, terminal integrity, gland threads, and intact Ex e rating labels.
- Live Bench Handshake: Powered on a dedicated PROFIBUS DP master node to verify node address setting, GSD file loading, and zero bus communication drops.
- Full 16-Channel Load Test: Driving 500 mA continuous DC load across all 16 output channels simultaneously to check thermal dissipation and output switching stability.
- Diagnostic LED Audit: Verification of active yellow channel LEDs and system status indicators (ON, BF, SF).
- Final QC & ESD Packaging: Sealed inside anti-static shielding bags with humidity monitoring strips and high-density impact foam.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Match Ex e vs. Ex i Variants: BARTEC manufactured both Ex e (
07-7331-2301/0000) and Ex i intrinsic safety (07-7331-2301/1.00) versions of this card. Do NOT swap an Ex e card into an Ex i intrinsically safe loop or you will destroy the safety barrier compliance of the entire panel. - ❗ Separate Supply Lines: Pay close attention to your wiring terminals! The module uses distinct terminal feeds for internal logic supply (L+/L-) and output power supply (U+/U-). If output power drops below 18 VDC, channels won’t energize field solenoids even if the PROFIBUS bus status LED reads green.
- ⚠️ Set PROFIBUS Node Address Before Power-Up: Address changes made via the front-panel rotary/dip switches require a full power cycle of the module’s 24V logic supply to take effect on the DP network.
Frequently Asked Questions (FAQ for Conversion)
Q: Can the 07-7331-2301/0000 directly power solenoid valves without external relays?
A: Yes. Each of the 16 channels outputs up to 500 mA at 24 VDC, which is sufficient to directly drive standard industrial 24V pilot solenoid valves and relay coils.
Q: Is this module hot-swappable in Zone 1 environments?
A: Servicing or replacing Ex e modules in classified areas requires following strict plant hot-work permits and shutting off localized power, unless the field junction box is certified for live maintenance under explosive atmosphere regulations.
Q: Are these modules brand new or surplus?
A: Our inventory consists primarily of New Surplus and Factory Sealed stock sourced directly through global energy plant liquidations and project overruns. Every unit is fully tested on our PROFIBUS master rig prior to shipping.
Q: Why purchase surplus BARTEC hardware instead of migrating to a new I/O system?
A: Replacing legacy BARTEC MODEX fieldbus systems forces plant operators into expensive hazardous-area panel recertifications, cabinet rewiring, and PLC program rewrites. Certified surplus components keep proven systems running safely at a fraction of the cost.
Q: What warranty is included with purchase?
A: Every BARTEC 07-7331-23010000 module includes our comprehensive 12-month full-replacement warranty.
