Description
Core Product Summary
The Beijer Electronics E300 (Type 04380 / 04380A) is a compact industrial operator panel and human-machine interface (HMI) designed to monitor and control automated machinery. Built for demanding industrial and marine operating environments, this unit integrates a backlit monochrome display with a dedicated physical keypad layout to handle system interactions, parameter adjustments, and operator commands.
Engineering integration relies on built-in serial communication links, such as RS-232 and RS-422 ports, enabling direct data exchange with compatible programmable logic controllers (PLCs). The terminal runs on a standard 24 VDC power supply and incorporates robust front-panel construction suited for flush enclosure mounting in control cabinets or operator consoles.
Key Technical Specifications
| Technical Parameter | Specification Detail |
| Brand | Beijer Electronics |
| Model / Series | E300 |
| Type / Part Number | 04380 / 04380A |
| Display Type | Backlit monochrome LCD |
| Operator Input | Numeric keypad, function keys, and directional navigation pad |
| Communication Interfaces | RS-232, RS-422 |
| Supply Voltage | 24 VDC (nominal) |
| Current Consumption | 450 mA |
| Certifications & Approvals | CE, UL Listed, Class I, Division 2 (Groups A, B, C, D) |
Engineering Selection Highlights
- Exact Series Identification: Designated under Type 04380 / 04380A configurations, ensuring proper matching with legacy project files and hardware revisions.
- Physical Keypad Design: Features tactile function keys and a navigation pad suited for industrial environments where operator gloves or harsh conditions hinder touchscreen reliability.
- Serial Communication Portability: Equipped with hardware-level RS-232 and RS-422 interfaces to facilitate direct point-to-point connection with automation controllers.
- Power Configuration Constraints: Requires a stable 24 VDC power source (approximately 450 mA consumption), necessitating a compliant Class 2 power supply in cabinet designs.
- Hazardous Location Suitability: Certified for Class I, Division 2 designated areas, allowing deployment in specialized industrial and processing zones.

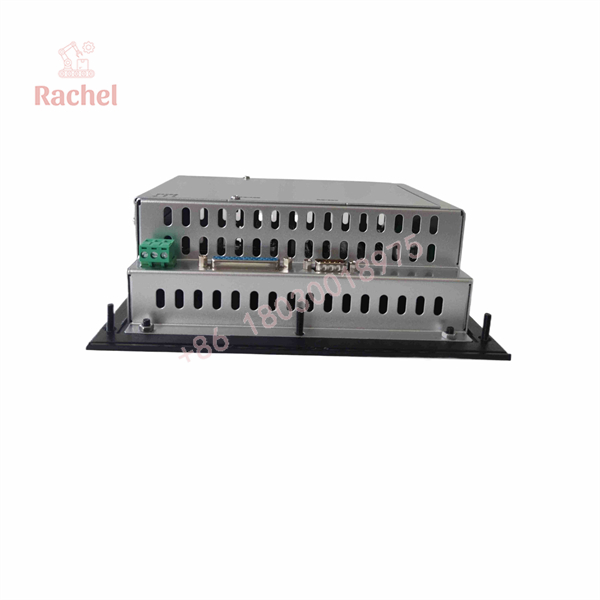

E300 04380A

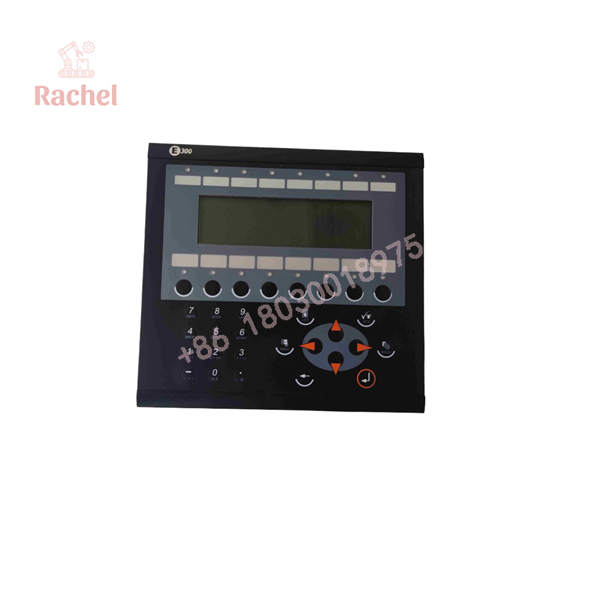

E300 04380A
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
| Controller Support | Compatible with industrial PLCs supporting legacy Beijer serial protocols (such as Mitsubishi MELSEC FX series) | Verify protocol selection and matching node addresses within the configuration software. |
| Communication Cable | RS-232 or RS-422 serial cabling | Pinout configurations depend on the target controller port layout. |
| Power Supply | 24 VDC, 450 mA Class 2 power source | Ensure low-ripple power input to maintain stable panel operation. |
| Engineering Software | E-Designer configuration environment | Required for modifying, uploading, or downloading application project files. |
Dimensions, Mounting & Connection Notes
- Enclosure Integration: Designed for panel-mount installation into control desk cutouts or cabinet doors using integrated mounting clamps.
- Terminal Connections: Incorporates pluggable or fixed terminal blocks for power and RS-422 serial lines, alongside a standard DB-9 connector configuration for RS-232.
- Environmental Considerations: Built with a protected front face suitable for industrial washdown or standard panel isolation when properly gasketed against the enclosure surface.
Detailed Product Overview
The Beijer Electronics E300 (Type 04380) is an established operator interface terminal engineered to provide direct interaction with industrial automation hardware. Its architecture centers on a high-contrast backlit monochrome LCD paired with a tactile button layout, making it resilient in plant floor applications where quick, physical keystrokes are preferred.
From an integration perspective, the unit relies on serial communication channels (RS-232 and RS-422) to link with automation controllers. This makes it compatible with established controller families like the Mitsubishi MELSEC series frequently found in compact machinery and marine automation packages. Because application logic and screen layouts are software-defined via legacy development tools, deploying a replacement unit requires matching both the hardware type 04380 specification and the original compiled project file to ensure proper button mapping, alarm handling, and register communication.
Applications & System Role
The Beijer E300 functions as an intermediary visualization and input terminal within machine-level automation architectures. Rather than executing primary control logic, it interfaces directly with a connected PLC to present real-time operational data, system statuses, and error messages to the user while transmitting manual commands back to the core controller. It is frequently utilized in specialized industrial setups, discrete manufacturing cells, and marine auxiliary equipment control panels (such as incinerators or pump skids) where reliable character-based or graphical monochrome visualization is required.
FAQ
What is the Beijer Electronics E300 Type 04380?
It is a compact industrial operator panel and HMI designed for machine monitoring, data entry, and system control.
What system series does this model belong to?
It belongs to the Beijer Electronics E300 operator terminal family, specifically identified under type code 04380 / 04380A.
What communication ports are available on this unit?
It features physical serial interfaces including RS-232 and RS-422 communication ports.
What power supply does the E300 require?
It operates on a standard 24 VDC power input drawing approximately 450 mA.
What type of display does the unit use?
It utilizes a backlit monochrome LCD screen optimized for clear readability in industrial environments.
