Description
Product Introduction & Engineering Value
When a compressor or steam turbine begins showing unstable shaft motion, operators need measurement they can trust—not assumptions. The BENTLY 3500/40-01-05 continuously conditions proximity probe signals and converts them into accurate machinery protection data for critical rotating assets.
Designed for the BENTLY Nevada 3500 platform, this monitor supports multiple shaft measurement functions, configurable alarm logic, and integration with plant protection systems through the 3500 Rack Configuration Software. It is widely deployed in facilities that require continuous API 670-compliant machinery monitoring.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | BENTLY Nevada |
| Product Family | 3500/40M Series |
| Model | 3500/40-01-05 |
| Monitor Channels | 4 |
| Sensor Type | Eddy-current proximity transducers |
| I/O Configuration | Internal Termination |
| Configuration Software | 3500 Rack Configuration Software |
| Primary Measurements | Radial vibration, thrust position, differential expansion, eccentricity, REBAM |
| Rack Compatibility | BENTLY Nevada 3500 System |
| Alarm Functions | User-programmable Alert and Danger setpoints |
| Installation | Standard 3500 rack monitor slot |
| Application Standard | Designed for API 670 machinery protection systems |
Field Application & “The Trench” Experience
During a scheduled outage at a petrochemical ethylene plant, maintenance engineers replaced several proximity probes on a recycle gas compressor. Startup testing revealed inconsistent shaft vibration readings on two bearings. After replacing the aging monitor with a verified 3500/40-01-05, channel calibration stabilized immediately and acceptance testing confirmed consistent vibration values across all four channels before the compressor returned to service.
Typical applications include:
- Steam turbine journal bearing vibration monitoring
- Ethylene recycle compressor shaft displacement measurement
- Large boiler feed pump thrust position protection
Transparency SOP: QA & Testing
Before shipment, each New Surplus or refurbished module undergoes documented verification:
- Visual inspection for PCB damage, connector wear, contamination, and corrosion
- Backplane connector integrity verification
- Power-up testing in a compatible 3500 rack
- Four-channel signal simulation using calibrated proximity transducer equipment
- Alarm output verification
- Burn-in observation under operating conditions
- Anti-static packaging with traceable identification records

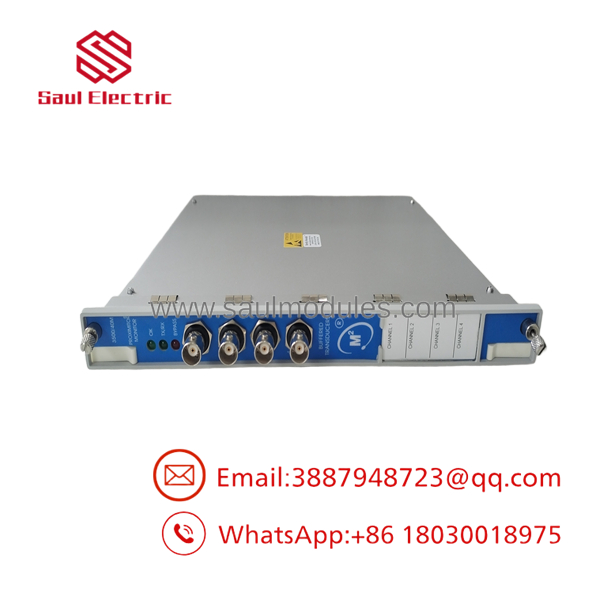

3500/40-01-05

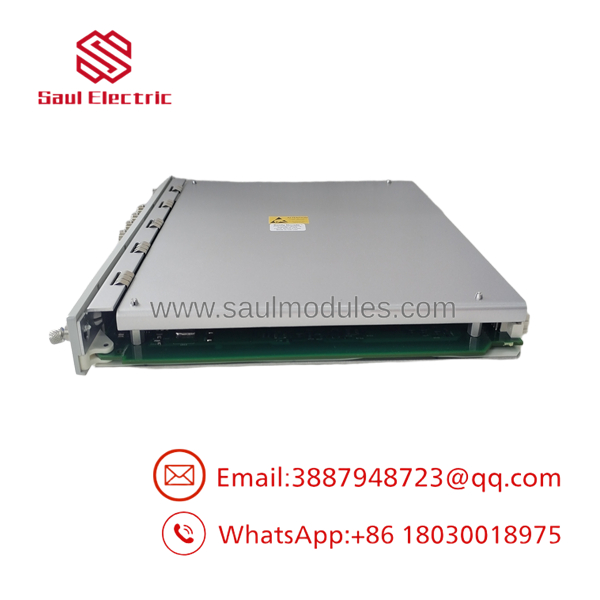

3500/40-01-05
The Veteran’s Tech Trap Guide
⚠️ Do not reuse the previous configuration without verification. Probe type, extension cable length, and transducer sensitivity must match the configured channel parameters or measurement accuracy will suffer.
⚠️ Confirm the I/O option before ordering. Internal-termination and external-termination versions are not interchangeable without the proper hardware configuration.
PRO TIP: Always back up the rack configuration before replacing the monitor. Restoring the original configuration dramatically reduces commissioning time and helps avoid incorrect alarm scaling.
Dynamic FAQ
Q1. What machinery can the 3500/40-01-05 protect?
It is commonly used on steam turbines, centrifugal compressors, generators, pumps, expanders, and other rotating equipment requiring continuous shaft vibration and position monitoring.
Q2. Which transducers are compatible?
The monitor is designed for compatible BENTLY Nevada eddy-current proximity transducer systems, including the 3300 XL family, when installed according to the approved system configuration.
Q3. Does this monitor support configurable alarm levels?
Yes. Each channel supports programmable Alert and Danger setpoints configured through the 3500 Rack Configuration Software.
Q4. Is New Surplus inventory genuine?
Yes. New Surplus modules are unused OEM inventory sourced through authorized industrial supply channels. Each unit is inspected for authenticity, condition, and correct part identification before shipment.
Q5. What should be verified before installation?
Confirm rack compatibility, firmware revision, I/O configuration, transducer type, extension cable length, and saved configuration files before replacing the existing monitor.
Q6. Is warranty available?
Warranty coverage depends on the inventory condition and supplier policy. Both New Surplus and professionally refurbished modules are typically supplied with a limited warranty covering defects in materials or workmanship.
