Product Introduction & Engineering Value
Engineers working on modern Dry Low NOx (DLN) gas turbines know that reducing emission levels comes with a dangerous trade-off: combustion instability. Left unmonitored, acoustic pressure pulsations can physically destroy combustor liners, transition pieces, and downstream turbine blades in a matter of minutes. Standard vibration monitoring cannot capture these high-frequency gas pressure waves.
The Bently Nevada 3500/64M 176449-05 is specifically designed to bridge this protective gap. It monitors four channels of high-speed dynamic pressure data from combustion chambers. The module continuously runs raw signal inputs through configurable bandpass filters to isolate destructive flame acoustic frequencies from normal process rumble. It gives you the precise, millisecond-level telemetry needed to adjust fuel-to-air ratios or execute an emergency trip before structural damage occurs.
Technical Specifications
- Input Channels: 4 independent dynamic pressure channels.
- Transducer Compatibility: Piezoelectric dynamic pressure sensors (e.g., Bently Nevada 350300 or charge-amplifier coupled inputs).
- Signal Resolution: 24-bit A/D conversion for precise low-amplitude pressure tracking.
- Frequency Range: 2 Hz to 20 kHz (programmable bandpass settings).
- Power Consumption: 7.3 Watts typical module draw.
- Buffered Outputs: 4 front-panel coaxial BNC connectors (one per channel), short-circuit protected.
- Isolation Protection: 500 Vdc galvanic isolation between field inputs and backplane.
- Modbus/Communications: Fully integrates with the 3500/22M Transient Data Interface (TDI) for advanced wave-form capture.
- Environmental Limits: Operating temperature range of -30°C to +65°C (-22°F to +150°F).

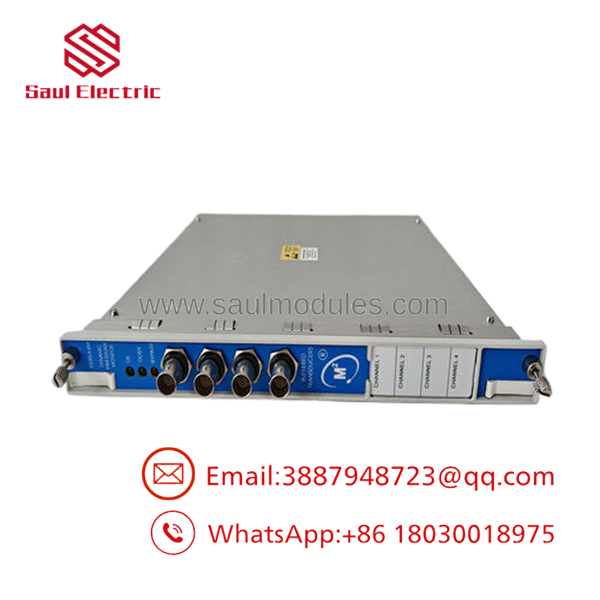

- 3500/64M 176449-05

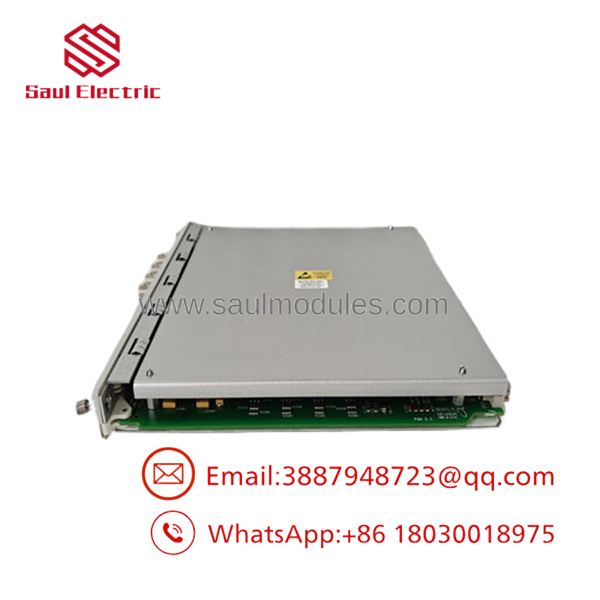

- 3500/64M 176449-05
Field Application & The “Trench” Experience
A combined-cycle power plant in the Midwest was experiencing mysterious, intermittent high-vibration trips on its F-class gas turbine. Standard radial vibration probes showed a sudden rise in amplitude right before the trip, but gave no clue as to the root cause.
We brought in a portable analyzer and hooked into the buffered front-panel BNC outputs of the 3500/64M 176449-05 module. The dynamic pressure waveforms instantly revealed massive pressure spikes at 140 Hz within Combustor Can No. 6—a classic sign of DLN flame instability (combustion hum). One of the gas nozzles was partially restricted, leaning out the mixture too far. Thanks to the raw diagnostic data accessed directly from the 176449-05’s front panel, the plant was able to target the specific combustor nozzle for cleaning during a brief scheduled outage, avoiding a catastrophic blowout.
Specific Niche Applications:
- Dry Low NOx (DLN) Combustor “Humming” Prevention: Real-time monitoring of pressure pulsations to tune active combustion control loops.
- Centrifugal Compressor Surge Guarding: Tracking rapid, high-frequency inlet pressure fluctuations to detect early signs of aerodynamic stall.
- Hydro Turbine Draft Tube Cavitation Monitoring: Identifying localized low-pressure vapor bubble collapses that erode runner blades.
Transparency SOP: QA & Testing
Every 176449-05 module undergoes detailed hardware verification in our testing facility. We insert the card into an active Bently Nevada 3500 rack and run a sequence of simulated pressure waveforms using a calibrated charge signal generator. We verify that the card’s onboard DSP properly applies the designated bandpass filters and accurately tracks pressure amplitudes up to 20 kHz. Finally, we verify that the buffered front-panel BNC outputs deliver clean, un-attenuated voltage signals matching the simulated inputs exactly.
The Veteran’s Tech Trap Guide
⚠️ CHARGE CONVERTER VOLTAGE CONFLICTS: If your 3500/64M is paired with external charge amplifiers or charge converters (frequently used with high-temperature piezoelectric sensors), ensure the sensor supply jumper settings on the 176449-05 match the voltage requirements of your amplifier. Providing the wrong bias voltage will completely mute the sensor signal, reporting a “Transducer OK” status on the rack while actually receiving zero pressure data.
PRO TIP: When replacing this card, do not forget that dynamic pressure signals are highly susceptible to electromagnetic interference (EMI). Always ensure that the twisted-pair, shielded cables running from the sensor’s charge amplifier to the 176449-05 card have their shields landed strictly at the rack’s designated ground terminal—and are left floating at the sensor end—to prevent ground loops from corrupting your high-frequency pressure spectrum.
Dynamic FAQ
- Q: Can I run standard proximity probes or accelerometers into this 3500/64M card?
- A: No. The 3500/64M is exclusively configured with internal signal conditioning for dynamic pressure sensors and charge-coupled devices. Standard radial vibration, axial thrust, or seismic acceleration inputs must be routed to a 3500/42M or 3500/40M module instead.
- Q: What is the significance of the “M” designation in 3500/64M?
- A: The “M” indicates that this card features “Multichannel” and transient data capabilities. It is fully integrated with Bently Nevada’s System 1 software to stream dynamic, high-frequency waveform data during combustion transition states or startup cycles.
- Q: Does this module support internal intrinsic safety barriers?
- A: The 176449-05 is a non-barrier version. If your pressure sensors are located in hazardous gas zones, you must route the field signals through external galvanic barriers before landing them on this I/O module’s termination block.
- Q: Do you offer same-day shipping on New Surplus 176449-05 stock?
- A: Yes. We maintain pre-tested New Surplus and refurbished 176449-05 modules in stock at our main warehouse, allowing us to package and ship replacements immediately to minimize your plant’s unplanned outage time.
