Description
Product Introduction & Engineering Value
A machinery protection system is only as reliable as the monitor processing the sensor signals. The BENTLY 350042 is designed to receive inputs from proximity probes and seismic transducers, convert them into meaningful machinery condition data, and initiate protective actions when operating limits are exceeded.
Installed in a BENTLY Nevada 3500 rack, this four-channel monitor supports continuous monitoring of vibration, shaft position, differential expansion, eccentricity, and related machine parameters. Its configurable alarm functions make it suitable for both new installations and lifecycle replacement projects.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | BENTLY Nevada |
| Model | 350042 |
| Product Family | 3500/42 Series |
| Product Type | Proximitor/Seismic Monitor |
| Monitoring Channels | 4 |
| Supported Inputs | Proximity probes, accelerometers, Velomitors, seismic transducers (configuration dependent) |
| Measured Variables | Radial vibration, shaft position, thrust position, eccentricity, differential expansion, acceleration, velocity |
| Configuration Software | 3500 Rack Configuration Software |
| Alarm Capability | User-programmable Alert and Danger setpoints |
| Installation | Standard 3500 rack monitor slot |
| System Integration | Compatible with 3500 communication and machinery protection architecture |
| Typical Application | Continuous machinery protection and condition monitoring |
Field Application & The “Trench” Experience
During the overhaul of a multistage centrifugal compressor in an ammonia production unit, engineers noticed unstable vibration values immediately after replacing several field transducers. Signal quality checks confirmed the sensors were operating correctly, but one monitor channel produced inconsistent measurements under load. Replacing the existing 350042 restored stable readings across all channels, allowing the compressor to complete acceptance testing without additional shutdown delays.
Typical installation scenarios include:
- Steam turbine radial vibration monitoring
- Boiler feedwater pump bearing protection
- High-speed centrifugal compressor shaft displacement monitoring

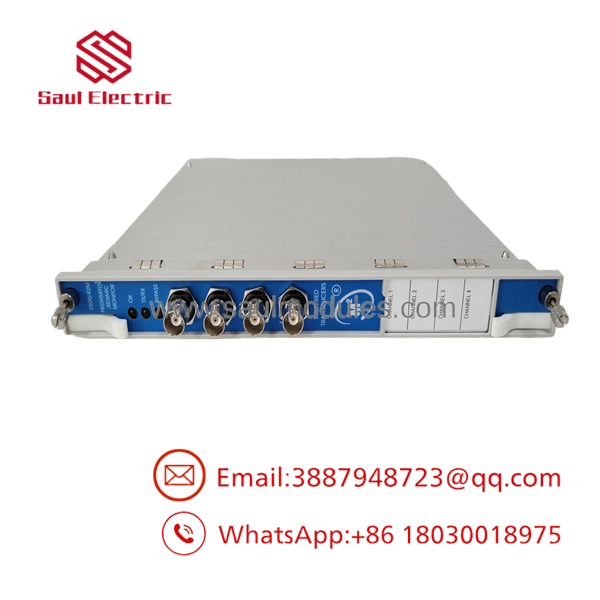

3500/42

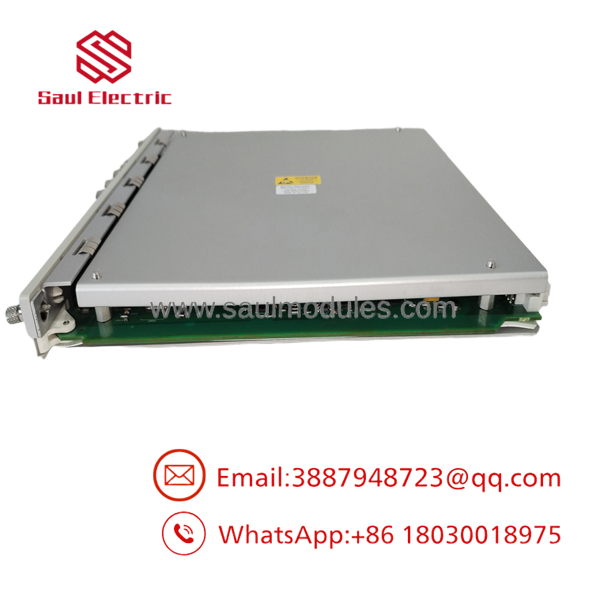

3500/42
Transparency SOP: QA & Testing
Every New Surplus and refurbished 350042 module is processed through a documented inspection procedure before shipment.
- PCB and connector inspection for corrosion, contamination, and mechanical damage
- Backplane interface verification
- Power-up testing in a compatible 3500 rack
- Four-channel signal simulation using calibrated transducer sources
- Alarm response verification
- Burn-in observation under operating conditions
- Final anti-static packaging with traceable serial identification
The Veteran’s Tech Trap Guide
⚠️ Verify the ordered configuration. The 3500/42 family includes different I/O termination options. Internal-termination and external-termination versions cannot be substituted without matching the correct rear I/O module.
⚠️ Never copy configuration files blindly. Different probe systems, extension cable lengths, and transducer sensitivities require matching channel configuration to maintain measurement accuracy.
PRO TIP: Before removing the existing module, back up the rack configuration. Restoring the saved configuration after installation significantly reduces commissioning time and minimizes startup errors.
Dynamic FAQ
Q1. What does the BENTLY 350042 monitor?
The module monitors vibration and shaft position using compatible proximity and seismic transducers. It can measure radial vibration, thrust position, differential expansion, eccentricity, acceleration, and velocity depending on the configured transducer type.
Q2. How many channels does the 350042 support?
The monitor provides four independent monitoring channels, allowing simultaneous protection of multiple machine measurement points.
Q3. Can the module generate machine shutdown alarms?
Yes. Each channel supports configurable Alert and Danger alarm setpoints that can activate relay outputs or communicate alarm status through the 3500 system.
Q4. Is New Surplus inventory genuine?
Yes. New Surplus units are unused OEM inventory. Each module is inspected for authenticity, part number verification, cosmetic condition, and basic functional operation before shipment.
Q5. What should be checked before replacing an existing monitor?
Verify the part number, rear I/O module type, rack firmware compatibility, transducer configuration, and saved rack configuration before installation.
Q6. Is the 350042 compatible with all 3500 racks?
The monitor is designed for compatible BENTLY Nevada 3500 Series racks. The selected I/O module and hardware configuration must match the specific ordering option of the monitor.
