Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 3500/42M |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Product Type | 4-Channel Proximitor/Seismic Monitor |
| Input Channels | 4 (accepts proximity, velocity, or acceleration sensors) |
| Power Consumption | 7.7 W typical |
| Input Impedance | 10 kΩ (Standard I/O) |
| Signal Processing | 0.1 Hz to 10 kHz frequency range |
| Accuracy | ±0.2% of full scale |
| Resolution | 0.3662 µA per bit |
| Buffered Output Impedance | 550 Ω (per channel, short-circuit protected) |
| Transducer Power Supply | -24 Vdc |
| Alarm Setpoint Accuracy | Within 0.13% of desired value |
| Monitoring Functions | Radial vibration, thrust position, differential expansion, eccentricity, REBAM, acceleration, velocity, shaft absolute, circular acceptance region |
| Operating Temperature | -40°C to +70°C |
| Mounting | 3500 rack, 1 full-height front slot + 1 rear I/O slot |
| Rack Configuration | 3500 Rack Configuration Software |
| Certifications | UL, CE, CSA-NRTL/C, ATEX |
Product Introduction & Supply Chain Strategy
The BENTLY 3500/42M Proximitor/Seismic Monitor is a four-channel monitoring module for the 3500 Machinery Protection System. It accepts signals from proximity probes, velocity transducers, and accelerometers, conditioning them to provide vibration and position measurements for critical rotating machinery. The module compares monitored parameters against user-programmable alarm setpoints, triggering alerts when thresholds are exceeded. You can program each channel in pairs — channels 1 and 2 may perform one monitoring function while channels 3 and 4 perform another. Supported functions include radial vibration, thrust position, differential expansion, eccentricity, REBAM, acceleration, velocity, and shaft absolute measurements. The 3500/42M is deployed on turbines, compressors, generators, and pumps across power generation, oil & gas, and chemical processing facilities.
Procuring this module as New Surplus is a TCO-critical decision. The 3500/42M sits directly on the protection path — not just a data collection device. Refurbished modules carry extreme risk: compromised signal conditioning accuracy, degraded input impedance from prior overvoltage events, and latent damage to sensor power supplies that no functional test can guarantee. A failed monitor means no vibration or position data reaches the protection relays for critical machinery. On a steam turbine or centrifugal compressor, the unplanned downtime cost from a protection system failure dwarfs the module’s value. This unit offers OEM-origin traceability, zero operational hours, and a full warranty — eliminating the uncertainty of used or repaired components.

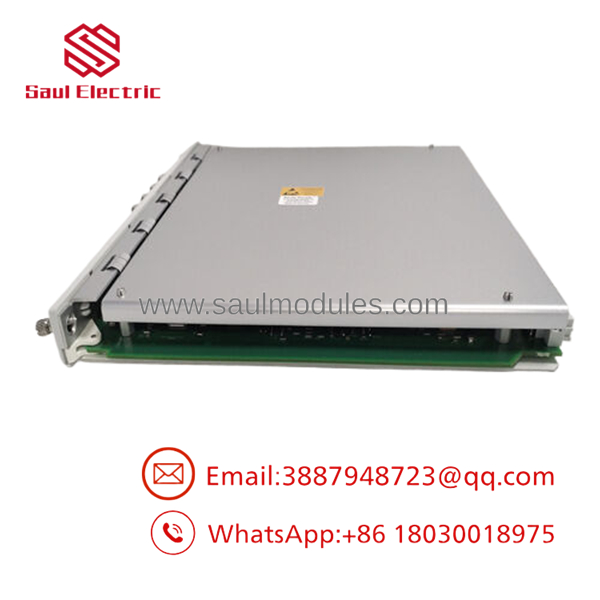

- 3500/42M

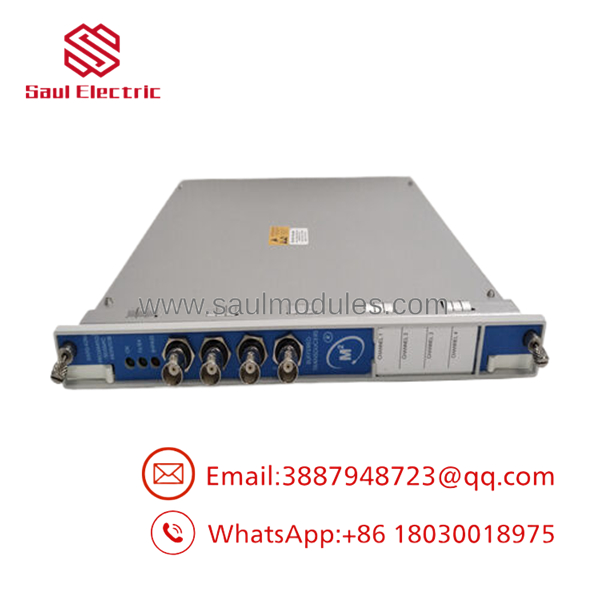

- 3500/42M
Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety)
- Lock out and tag out the 3500 rack. De-energize the rack power supply. The 3500/42M supports hot-swap replacement in systems with redundant power supplies; for single-supply configurations, full power-down is required.
- Wear ESD wrist strap. Gather a camera for documentation.
- Critical: Record the existing module’s configuration from the 3500 Rack Configuration Software. Document the transducer type (proximity vs. velocity vs. acceleration), sensitivity settings, measurement functions per channel pair, alarm/danger thresholds, and I/O module type.
Stage 2: Removal
- Disengage the module retaining screws at the top and bottom of the faceplate.
- Gently pull the module straight out from the backplane connector using the extraction handles. Do not rock side-to-side — this bends backplane pins.
Stage 3: Installation
- Align the new module with the guide rails.
- Press firmly and evenly until fully seated into the backplane connector.
- Secure with the retaining screws.
Stage 4: Configuration & Verification
- Re-energize the rack power.
- The module will power up. Observe LED status: OK should illuminate; TX/RX should indicate communication with other rack modules; Bypass should remain off.
- Critical: The module configuration resides on the 3500 rack CPU module. The rack will automatically push the existing configuration to the new module. However, always verify the configuration using the 3500 Rack Configuration Software before returning to service.
- Inject simulated sensor signals to verify measurement accuracy and alarm thresholds. Test each channel independently.
Firmware/Software Versions & Upgrade Notes
The 3500/42M works with onboard firmware governed by the 3500 Rack Configuration Software and the rack CPU module.
Version compatibility note: This is the “M” series variant, compatible with the current 3500 rack firmware and M-series monitoring architecture. The “M” designation indicates compatibility with the latest firmware and System 1 condition monitoring software. Verify your 3500 rack firmware version is compatible with the 3500/42M module.
Critical warning: The module has no field-upgradeable firmware. All configuration resides in the 3500 rack CPU module, not on the 3500/42M itself. When replacing the module, the rack configuration software pushes the existing configuration parameters to the new module automatically. However, always verify compatibility of I/O modules — various I/O module variants exist, including those with internal barriers for hazardous area sensors. Confirm your existing I/O module type before replacing.
Frequently Asked Questions (FAQ)
Q: Why is this New Surplus cheaper than Bently Nevada list price but more expensive than refurbished units?
A: The price reflects sourcing verified, OEM-origin new units from global inventory. You avoid the OEM’s full retail margin and the hidden risk of refurbished stock — degraded signal conditioning, compromised input impedance, and latent sensor power supply damage. The cost of a single turbine or compressor protection failure dwarfs the price difference.
Q: Is this module still active or is it EOL?
A: The 3500/42M remains in active production and support as the current standard Proximitor/Seismic Monitor for the 3500 system. Bently Nevada continues to manufacture the 3500 platform for its extensive global installed base.
Q: What is the difference between the 3500/42 and 3500/42M?
A: The “M” designation indicates compatibility with the M-series monitors (current generation), which support the latest firmware, System 1 software integration, and enhanced measurement capabilities. The legacy 3500/42 (non-M) is not compatible with M-series racks. Always use the 3500/42M variant for current systems.
Q: What types of sensors does this module support?
A: The 3500/42M accepts signals from proximity probes (eddy current), velocity transducers, and accelerometers. The specific sensor type and sensitivity are configured through the 3500 Rack Configuration Software.
Q: Does replacing this module require reloading configuration parameters?
A: No. The configuration resides on the 3500 rack CPU module. The rack automatically pushes the existing configuration to the new 3500/42M. However, always verify configuration using the rack configuration software before returning to service.
Q: What is the warranty period and coverage?
A: The module carries a standard 1-year warranty against manufacturing defects. Coverage applies to the module hardware — not field wiring, sensor faults, or installation damage. All units are QC-tested before shipment to verify signal conditioning, communication handshake, and alarm threshold accuracy.
