Description
Product Introduction & Engineering Value
When a steam turbine experiences excessive thrust movement or abnormal casing growth, operators need immediate and reliable indication before equipment damage occurs. The BENTLY 3500/45 Position Monitor continuously processes position-related measurements and compares them against configurable protection limits.
The module is part of the BENTLY Nevada 3500 Machinery Protection System and supports several types of position transducers, allowing one monitor to perform multiple critical measurements. It is commonly installed on steam turbines, compressors, and other rotating equipment where shaft position and thermal expansion must be continuously supervised.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | BENTLY Nevada |
| Model | 3500/45 |
| Product Type | Position Monitor |
| Monitoring Channels | 4 |
| Supported Inputs | Proximity Transducers, RPTs, DC LVDTs, AC LVDTs, Rotary Potentiometers |
| Configurable Measurements | Axial (Thrust) Position, Differential Expansion, Case Expansion, Valve Position |
| Configuration Software | 3500 Rack Configuration Software |
| Alarm Capability | User-programmable Alert and Danger setpoints |
| Channel Configuration | Channels operate in programmable pairs |
| Rack Compatibility | BENTLY Nevada 3500 Series |
| Typical Installation | Steam turbines, compressors, generators |
Field Application & The “Trench” Experience
During a scheduled outage at a cogeneration facility, maintenance engineers replaced the thrust bearing on a condensing steam turbine. Startup testing showed unstable axial position readings despite confirming the probe gap and wiring. Investigation revealed the original position monitor had developed intermittent signal conditioning issues after years of service.
After installing a verified 3500/45, the thrust position stabilized immediately. Differential expansion values remained consistent throughout the turbine warm-up cycle, allowing the unit to return to full load without additional mechanical adjustments.
Typical applications include:
- Steam turbine thrust position monitoring
- Turbine differential expansion measurement
- Main steam control valve position feedback
- Generator bearing case expansion monitoring

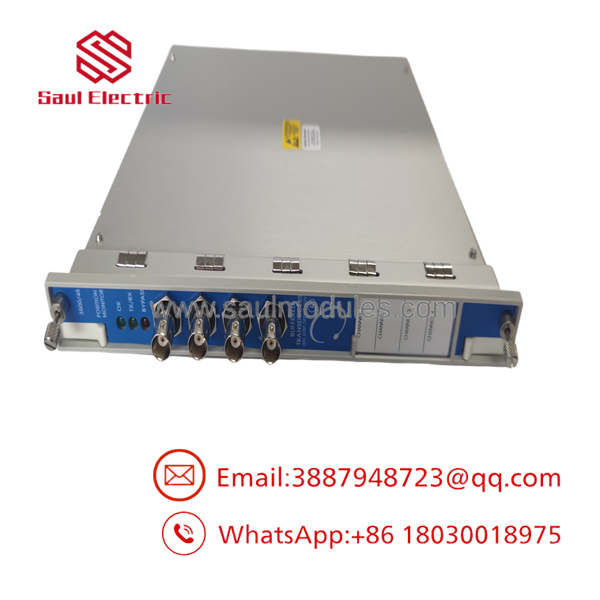

3500/45

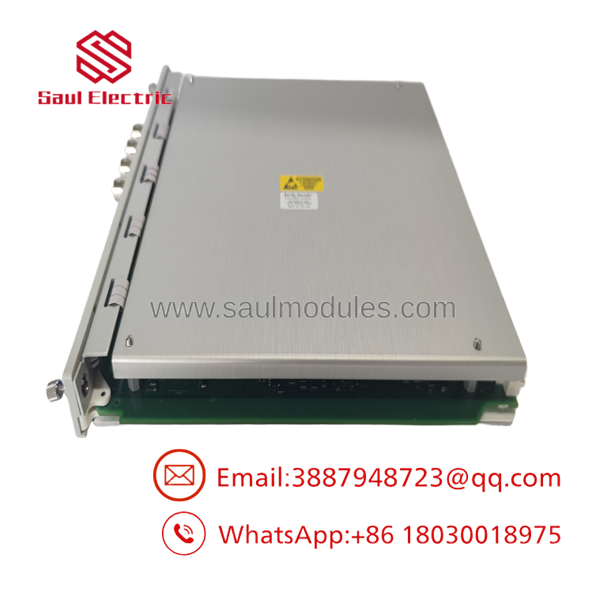

3500/45
Transparency SOP: QA & Testing
Before shipment, every New Surplus or professionally refurbished module follows a documented inspection process.
- Confirm part number, hardware revision, and configuration option.
- Inspect PCB assemblies, connectors, and front-panel indicators.
- Install the monitor in a compatible 3500 rack for power-up verification.
- Simulate multiple transducer inputs to verify channel response and alarm operation.
- Perform final visual inspection before anti-static packaging and serialization.
The Veteran’s Tech Trap Guide
⚠️ Don’t assume every rear I/O module is interchangeable. The required I/O module depends on the transducer technology being used (Proximitor, RPT, AC LVDT, DC LVDT, or rotary potentiometer). Selecting the wrong rear module prevents proper signal conditioning.
⚠️ Verify measurement configuration after replacement. The 3500/45 supports multiple measurement modes. Loading an incorrect configuration can cause inaccurate thrust position or expansion calculations even though the hardware is functioning normally.
PRO TIP: Always back up the existing rack configuration before replacing the monitor. Restoring the original configuration minimizes commissioning time and helps avoid unnecessary turbine trips during startup.
Dynamic FAQ
Q1. What measurements can the 3500/45 perform?
The monitor supports axial (thrust) position, differential expansion, standard and dual-ramp expansion, complementary expansion, case expansion, and valve position, depending on the installed transducers and configuration.
Q2. How many monitoring channels are available?
The module provides four independent channels, which are configured in pairs using the 3500 Rack Configuration Software.
Q3. Which transducer types are supported?
The 3500/45 accepts signals from 3300 XL proximity transducers, Rotary Position Transducers (RPTs), AC LVDTs, DC LVDTs, and rotary potentiometers.
Q4. Is the 3500/45 suitable for API 670 machinery protection?
Yes. The monitor is widely deployed as part of API 670-compliant machinery protection systems for steam turbines, compressors, and generators.
Q5. How is New Surplus inventory verified?
Each module undergoes part number verification, visual inspection, connector examination, power-up testing, and functional channel checks before shipment.
Q6. What should be checked before installation?
Confirm the monitor configuration, compatible rear I/O module, transducer type, rack firmware revision, and saved configuration file before replacing the existing unit.
