Description
Product Introduction & Engineering Value
Hydroelectric generators experience operating conditions that differ significantly from steam turbines or centrifugal compressors. Cavitation, draft tube pressure pulsation, runner vibration, and air-gap variation require monitoring techniques developed specifically for hydro applications. The BENTLY 3500/46-03-00 Hydro Monitor addresses these requirements within the proven 3500 Machinery Protection System.
The monitor accepts inputs from hydro-specific sensors and delivers continuous condition monitoring with configurable Alert and Danger setpoints. Combined with the 3500 platform and System 1 software, it provides operators with real-time protection and long-term diagnostic information for generators and hydro turbines.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | BENTLY Nevada |
| Model | 3500/46-03-00 |
| Product Family | 3500/46M Hydro Monitor |
| Product Type | Hydro Machinery Monitor |
| Monitoring Channels | 4 |
| Primary Measurements | Shaft vibration, dynamic pressure, air gap, case vibration, shaft displacement |
| Supported Sensors | Proximity probes, accelerometers, velocity sensors, dynamic pressure sensors, air-gap sensors (configuration dependent) |
| Alarm Functions | Programmable Alert and Danger setpoints |
| Configuration Software | 3500 Rack Configuration Software |
| Rack Compatibility | BENTLY Nevada 3500 System |
| Typical Standard | API 670-based machinery protection architecture with hydro-specific monitoring capability |
Field Application & The “Trench” Experience
A 220 MW hydroelectric generating unit developed intermittent vibration alarms during seasonal high-water operation. Conventional shaft vibration measurements remained within acceptable limits, but operators suspected cavitation inside the draft tube. After installing a 3500/46-03-00 configured with dynamic pressure inputs and vibration monitoring, engineers identified pressure pulsations occurring only within a specific load range. Operating procedures were modified to avoid the rough-load zone, eliminating repeated alarm events without mechanical repairs.
Typical applications include:
- Francis turbine draft tube pressure pulsation monitoring
- Kaplan turbine runner vibration supervision
- Hydroelectric generator air-gap and shaft displacement monitoring

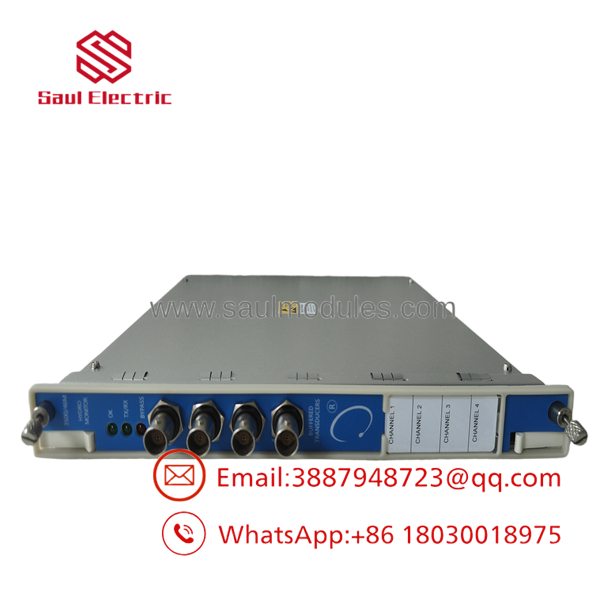

3500/46-03-00

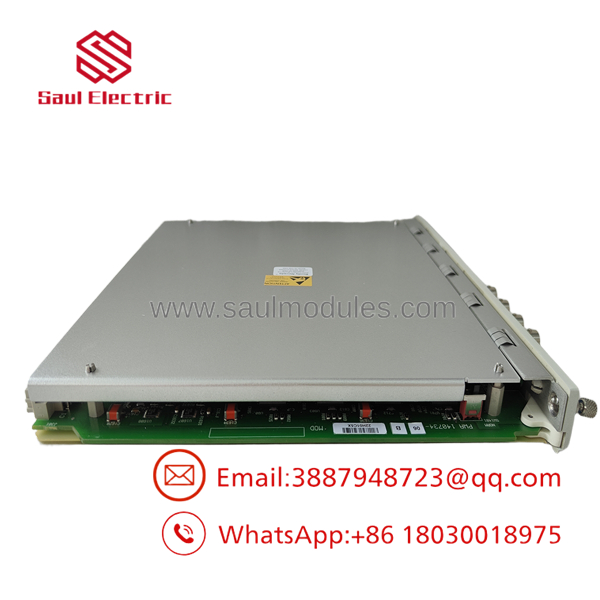

3500/46-03-00
Transparency SOP: QA & Testing
Every New Surplus or refurbished 3500/46-03-00 follows a documented inspection process before shipment.
- Complete visual inspection of PCB assemblies and connectors
- Mechanical verification of front and rear module interfaces
- Power-up testing in a compatible 3500 rack
- Functional verification using calibrated sensor simulators
- Alarm and relay response validation
- Burn-in observation to identify intermittent faults
- Anti-static packaging with serialized inspection records
The Veteran’s Tech Trap Guide
⚠️ Don’t configure this monitor like a standard vibration monitor. Hydro turbines often require dynamic pressure, air-gap, and low-frequency vibration measurements that use different signal processing than conventional rotating equipment.
⚠️ Verify sensor compatibility before ordering. Different ordering configurations support different combinations of hydro transducers and I/O modules. Installing the wrong rear I/O module can prevent proper sensor operation.
PRO TIP: Before replacing an existing Hydro Monitor, archive the complete rack configuration. Hydro units frequently use custom alarm delays, shutdown logic, and channel scaling developed during site commissioning.
Dynamic FAQ
Q1. What is the primary purpose of the 3500/46-03-00?
It is a dedicated Hydro Monitor designed for hydroelectric turbines and generators, providing continuous monitoring of vibration, pressure, displacement, and other hydro-specific machine parameters.
Q2. Which measurements can the module perform?
Depending on the installed sensors and configuration, the monitor supports shaft vibration, dynamic pressure, air gap, shaft displacement, case vibration, and related hydro machine measurements.
Q3. Is the 3500/46-03-00 compatible with the standard 3500 rack?
Yes. It installs directly into compatible BENTLY Nevada 3500 Series racks and communicates with the system through the standard 3500 architecture.
Q4. Can this monitor be used on steam turbines?
Although it shares the 3500 platform, the 3500/46 Hydro Monitor is optimized for hydroelectric machinery. Steam turbine applications typically use other monitor types such as the 3500/40M, 3500/42M, or 3500/45, depending on the required measurements.
Q5. How is New Surplus inventory verified?
Each module is inspected for part number authenticity, connector integrity, cosmetic condition, and functional operation. Refurbished units additionally undergo documented electrical testing before shipment.
Q6. What should be confirmed before replacement?
Verify the exact ordering code, rear I/O module configuration, sensor compatibility, rack firmware revision, and saved configuration file before installation to minimize commissioning time and prevent measurement errors.
