Description
Product Introduction & Engineering Value
Not every machine shutdown begins with excessive vibration. Many failures start with changes in lube oil pressure, bearing temperature, seal oil pressure, or hydraulic control signals. The BENTLY 3500/62 Process Variable Monitor (163179-03) continuously supervises these analog process variables alongside the machinery protection system.
Unlike vibration monitors that process dynamic sensor signals, the 3500/62 acquires standard industrial analog inputs and compares them against configurable operating limits. This enables operators to combine process monitoring and machinery protection within a single BENTLY Nevada 3500 rack.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | BENTLY Nevada |
| Model | 3500/62 |
| Spare Part Number | 163179-03 |
| Product Type | Process Variable Monitor |
| Monitoring Channels | 6 Analog Input Channels |
| Supported Inputs | ±10 VDC or 4–20 mA (depends on selected I/O module) |
| Alarm Functions | Programmable Alert and Danger Setpoints |
| Configuration Software | 3500 Rack Configuration Software |
| Rack Compatibility | BENTLY Nevada 3500 Series |
| Available I/O Options | Internal or External Terminations, Isolated and Barrier I/O Modules |
| Typical Applications | Pressure, Temperature, Flow, Level, Lube Oil and Other Process Variables |
Field Application & The “Trench” Experience
A refinery experienced repeated emergency shutdowns on a centrifugal compressor during summer operation. Vibration values remained normal, but intermittent low lube oil pressure alarms caused unnecessary trips. Engineers discovered that the existing process monitor intermittently lost one analog input channel under elevated cabinet temperatures.
Replacing the aging 3500/62 (163179-03) restored stable pressure measurements. After recalibrating the 4–20 mA transmitters and verifying alarm thresholds, the compressor completed several months of continuous operation without another nuisance shutdown.
Typical applications include:
- Steam turbine lube oil pressure monitoring
- Compressor seal gas differential pressure supervision
- Boiler feedwater temperature and pressure monitoring
Transparency SOP: QA & Testing
Every New Surplus or professionally refurbished 163179-03 follows a documented verification process before shipment.
- PCB inspection for contamination, corrosion, and damaged components
- Connector and backplane interface examination
- Installation verification in a compatible 3500 rack
- Six-channel analog signal simulation using calibrated voltage and current sources
- Alarm response and communication verification
- Burn-in observation for intermittent faults
- Anti-static packaging with serialized inspection records

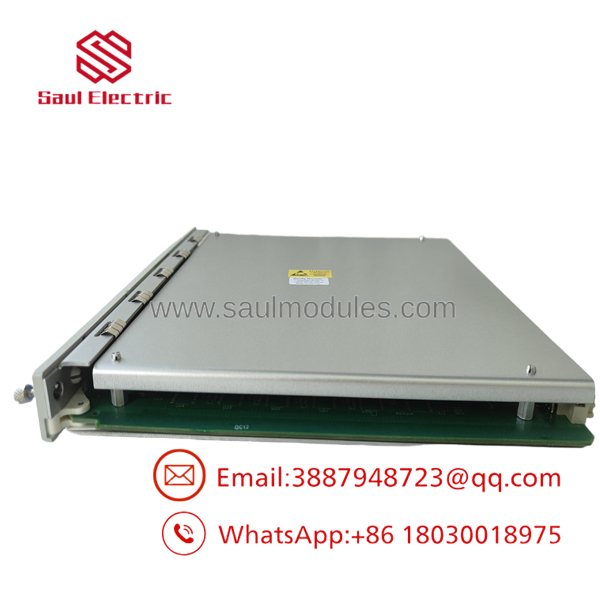

3500/62 163179-03

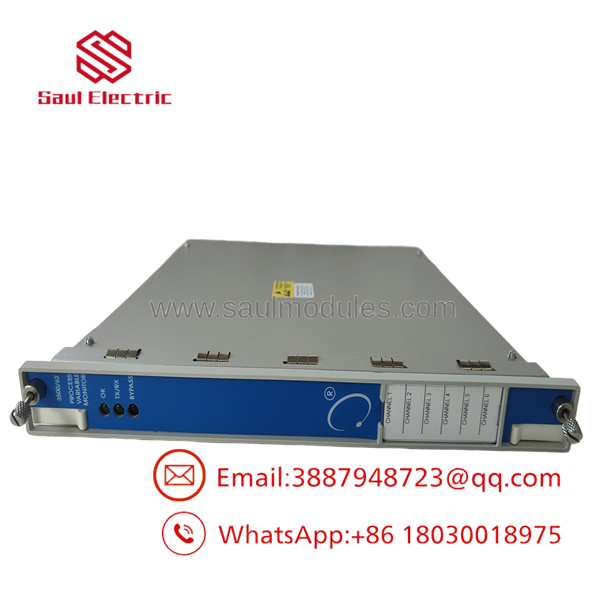

3500/62 163179-03
The Veteran’s Tech Trap Guide
⚠️ Verify the I/O module before ordering. The 3500/62 supports multiple rear I/O configurations, including ±10 VDC, isolated 4–20 mA, and barrier I/O versions. Ordering the wrong I/O option prevents direct field wiring compatibility.
⚠️ Don’t assume every transmitter uses the same signal type. Mixing voltage and current inputs without updating the configuration will produce incorrect readings or continuous alarms.
PRO TIP: Before replacing the monitor, document the scaling values for every process input. Engineering units, alarm thresholds, and transmitter ranges often differ between plants, even when identical hardware is installed.
Dynamic FAQ
Q1. What does the 3500/62 Process Variable Monitor measure?
It monitors standard analog process signals, including pressure, temperature, flow, level, lube oil pressure, seal oil pressure, and other process variables using voltage or current inputs.
Q2. How many process inputs are supported?
The module provides six independent analog input channels, allowing multiple process variables to be monitored simultaneously.
Q3. Is 163179-03 the complete monitor?
Yes. 163179-03 is the spare part number for the 3500/62 Process Variable Monitor. The appropriate rear I/O module must also match the selected ordering configuration.
Q4. Which analog signal types are supported?
Depending on the selected I/O module, the monitor accepts ±10 VDC or 4–20 mA analog process signals, including isolated and barrier I/O configurations.
Q5. How is New Surplus inventory verified?
Every module undergoes part number verification, connector inspection, power-up testing, analog input simulation, and functional alarm testing before shipment.
Q6. Can the 3500/62 operate with other 3500 monitoring modules?
Yes. It is designed to operate within the BENTLY Nevada 3500 Machinery Protection System, allowing process variables to be monitored alongside vibration, position, speed, and relay modules through a common rack architecture.
