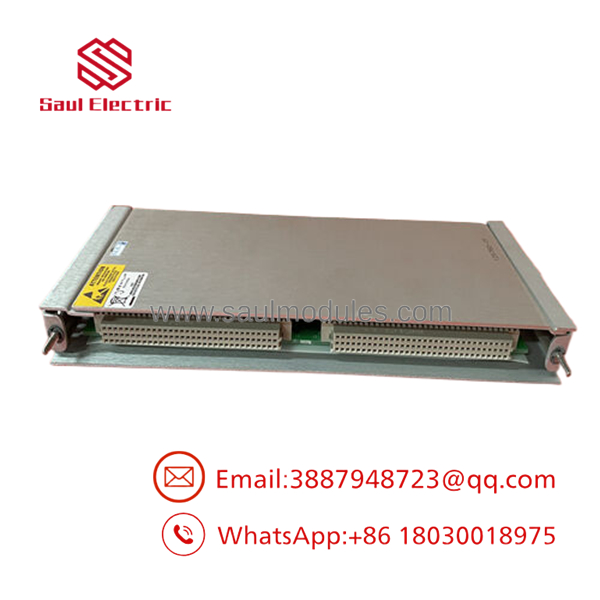

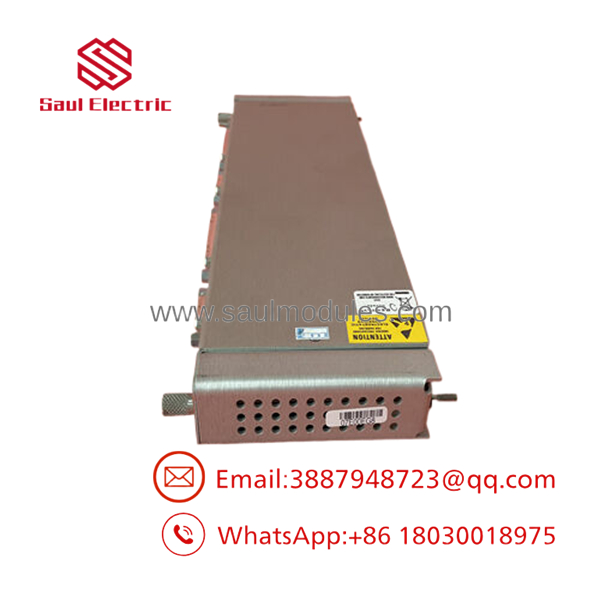

Plant managers hate it when the monitoring rack loses its link to the control system right when you need trend data most. The Bently Nevada 125760-01 Data Manager I/O Module solves that by handling the physical connections for the primary rack interface. Installed on the rear of the 3500 rack, it delivers dependable serial communications and discrete I/O signals that keep everything synchronized.
Paired with the 3500/20 main module, this I/O board supports both RS232 and RS422, giving you options for direct PC connections or longer-distance daisy-chaining. Its rugged construction stands up to the vibration and temperature swings common in heavy rotating equipment areas.
Technical Specifications
| Parameter | Value |
|---|---|
| Compatible Main Module | 3500/20 Rack Interface Module |
| Communication Interfaces | RS232 and RS422 serial |
| Maximum Data Rate | 38.4 k baud |
| System Contacts | Rack Reset, Trip Multiply, Alarm Inhibit |
| Relay Output | I/O Module OK relay |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (H x W x D) | 241.3 mm x 24.4 mm x 99.1 mm |
| Weight | 0.45 kg (1.0 lb) |
| Cable Length (RS422) | Up to 1,200 m (4,000 ft) |
Field Application & The “Trench” Experience
We once got called to a Midwest fertilizer plant at 2 a.m. because the 3500 rack had lost comms with the DCS. The RS422 link from the rear I/O was flaky after years of corrosive atmosphere exposure. Swapping the 125760-01 took under thirty minutes during a brief window. Signal quality returned immediately, and the operators regained full visibility into their ammonia compressor train before the next shift.
- 125760-01
- 125760-01
Niche Applications
- Long-distance RS422 daisy-chaining between multiple 3500 racks in a compressor house
- Integration of rack reset and trip multiply signals into safety PLC logic for turbine protection
- Harsh-environment installations requiring robust serial links to remote operator stations
Transparency SOP: QA & Testing
We test every 125760-01 I/O module by mating it with a known-good 3500/20 main module in our validation rack. Serial ports get exercised at multiple baud rates with loopback and host software connections. All system contact inputs and the OK relay get cycled through dozens of operations. Final burn-in confirms stable performance before the unit ships with its individual test log.
The Veteran’s Tech Trap Guide
⚠️ Termination Matters — On RS422 runs, incorrect termination resistors cause intermittent comms drops that are hard to diagnose. Double-check the switch settings or external terminators.
PRO TIP: Label your I/O modules clearly when pulling spares — mixing standard and TMR versions creates instant headaches.
⚠️ Environmental Sealing — These rear modules see more dust and moisture. Inspect the connectors during any outage and clean contacts to prevent future signal issues.
Dynamic FAQ
Q: Does the 125760-01 support both copper and fiber connections? A: No. This specific I/O focuses on RS232/ serial. Fiber options exist on other TDI I/O variants.
Q: Is this module required for every 3500 rack? A: Yes, one I/O module pairs with each 3500/20 main module to provide the physical interfaces.
Q: What warranty applies to New Surplus 125760-01 units? A: They come with a full one-year warranty covering defects in materials and workmanship.
Q: Can this I/O module be replaced while the rack stays powered? A: Yes, the design supports hot-swap on the rear of the rack with minimal disruption to monitoring.
Q: How do I know if I need the modem version instead? A: Choose the modem I/O only if you specifically require dial-up or modem-based remote access. Most plants use the RS232/ version.
Q: Does this part work with TMR configurations? A: TMR racks require the TMR-specific RIM and matching I/O hardware. Confirm your ordering code before purchase.
