Description
Product Introduction

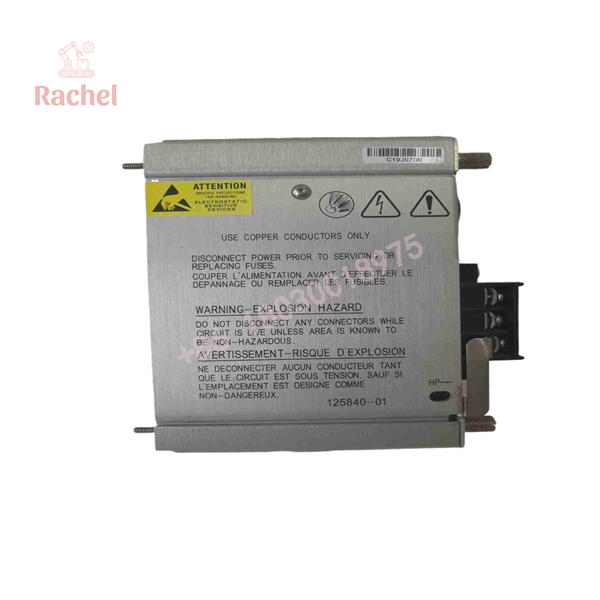

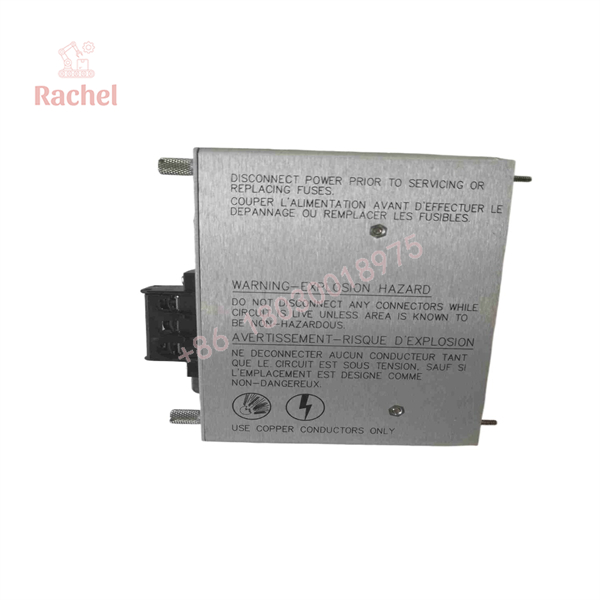

The Bently Nevada 125840-01 is the High Voltage AC Power Input Module (PIM) designed exclusively for the 3500/15 AC Power Supply system within the 3500 Machinery Protection rack. Installed in the rear slot directly behind the main 3500/15 front supply card, this module accepts site plant AC mains power and filters, fuses, and routes incoming voltage safely into the primary power supply backplane.
Unlike generic chassis power strips or lower-voltage DC input cards, the 125840-01 handles wide-range line conditioning across 85 to 264 VAC without requiring physical jumper changes. Its ruggedized terminal strip and integrated line noise filtering shield sensitive machinery monitoring electronics—such as vibration, position, and Keyphasor cards—from utility-side voltage spikes, harmonic distortion, and brownouts. Installing an authentic Bently Nevada 125840-01 ensures full API 670 compliance and maintains uninterruptible dual-redundant rack power configurations.
Key Technical Specifications
| Parameter | Value / Specification |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Part Number | 125840-01 |
| System Family | 3500/15 AC Power Supply System |
| Input Voltage Range | 85 VAC to 264 VAC (Universal Input) |
| Input Frequency | 47 Hz to 63 Hz |
| Peak Power Consumption | 300 Watts Max (System Dependent) |
| Form Factor | Half-Slot Rear Panel Module |
| Terminal Block Type | Heavy-duty screw-terminal block with protective cover |
| Fusing | Internal 3.15A / 250V fast-acting line fuses |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Compliance | API 670, CE, CSA, ATEX / IECEx Zone 2 |
Application Scenarios & The “Trench” Experience
It is 3:15 AM during a severe lightning storm over a Gulf Coast refinery. A line surge strikes the main 120VAC UPS distribution panel feeding critical turbomachinery protection racks. A competitor’s third-party power filter on rack #4 fails short, tripping the internal line fuse and dropping power to the single-supply 3500 rack. The DCS loses machinery vibration data for the main wet gas compressor, forcing an immediate emergency manual trip. Down time accumulates at $45,000 every twenty minutes while techs scramble to find why the rack died. Swapping in a pre-tested, OEM 125840-01 PIM card alongside a secondary redundant supply restores rack power and clear vibration telemetry before the plant manager arrives on-site.
Key Industrial Scenarios
- Refineries & Petrochemical Plants: Feed high-voltage AC mains into 3500 racks monitoring critical un-spared turbomachinery trains.
- Thermal & Nuclear Power Generation: Provide reliable line power conditioning for main turbine-generator 3500 monitoring systems.
- LNG Import/Export Terminals: Ensure clean power entry to rack backplanes in hazardous Zone 2 environments operating continuously in harsh marine air.
125840-01
125840-01
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Bently Nevada 3500 racks.
- Inbound Inspection: Physical anti-counterfeit check, component trace inspection, and OEM serial verification under magnification.
- Terminal & Trace Continuity: High-current terminal block torque testing and trace resistance checks across the input filtering choke.
- Dielectric Withstand (Hi-Pot) Test: Insulation resistance testing between line, neutral, and chassis ground to verify safety clearances.
- Live Rig Load Handshake: Seat the 125840-01 card into a live 3500/15 backplane, applying a simulated 200W dynamic load across 85 VAC, 120 VAC, and 240 VAC to confirm steady DC output rail stability.
- Final QC & Anti-Static Packaging: Isopropyl cleaning of terminal screws, installation of protective terminal covers, and vacuum sealing inside an ESD-shielded anti-static bag with desiccant.
The Veteran’s Tech Trap Guide
- ⚠️ Never Pull Under Live Load Without Dual Redundancy: While the 3500 system supports power supply redundancy, never unscrew and extract a 125840-01 PIM while it carries live 120/240 VAC unless the second 3500/15 power supply module is verified active and healthy (“SUPPLY OK” LED lit green on front). Pulling a single live PIM under load risks arcing across the backplane edge connector pins.
- ❗ Terminal Screw Torque Specifications: Tighten field wiring onto the 125840-01 barrier terminal block to exactly 0.8 Nm (7 in-lbs). Loose screw connections cause micro-arcing and excessive thermal build-up that carbonizes the phenolic terminal strip over time.
- ⚠️ Mismatched Front and Rear Modules: Always pair the 125840-01 High Voltage AC PIM with a High Voltage AC 3500/15 Front Power Supply module (p/n 127610-01 or 125760-01). Inserting a High Voltage AC PIM behind a Low Voltage DC or High Voltage DC front supply card will cause immediate backplane keying resistance or destructive board failure.
- ❗ Ground Lug Bonding: Ensure the dedicated chassis ground lug on the 125840-01 faceplate is bonded straight to the master cabinet earth ground bar with a minimum 12 AWG green/yellow wire. Relying solely on the rack chassis mounting screws for protective earth causes high-frequency noise insertion on sensitive 3500 monitor channels.
Frequently Asked Questions (FAQ)
Q: Can I run a single 125840-01 module to power my entire 3500 rack?
A: Yes. A single 125840-01 PIM paired with one 3500/15 front supply card can power a fully loaded 19-inch 3500 rack. However, for critical API 670 applications, installing dual 125840-01 modules fed from separate AC power feeds provides full supply redundancy.
Q: What is the main difference between the 125840-01 and the 125840-02?
A: The 125840-01 utilizes standard screw-terminal barrier blocks for raw wire field landing. The -02 revision features quick-connect Euro-style pluggable terminal blocks for faster maintenance field swaps. Electrically and functionally, both modules are identical.
Q: Does this module contain user-serviceable fuses?
A: Yes, internal fast-acting fuses protect the card. However, if an internal fuse on the 125840-01 blows, it indicates a severe short or MOV breakdown inside the board. We strongly recommend bench-testing or replacing the PIM assembly rather than just swapping the fuse on-site.
Q: Why buy New Surplus from us over ordering direct from Baker Hughes / Bently Nevada?
A: OEM factory lead times for 3500 rack replacement cards frequently stretch from 8 to 14 weeks. Buying our fully tested New Surplus stock guarantees delivery within days, allowing you to clear rack power fault alarms immediately without paying inflated emergency expedite fees.
Q: What warranty comes with this power input module?
A: Every 125840-01 module ships with our full 12-month advance replacement warranty. If the unit fails electrical specifications or drops line output at any point during the first year, we swap it out immediately from our ready stock.
