Bently Nevada 128229-01 Proximitor Seismic I/O Module

Description

Product Introduction

The Bently Nevada 128229-01 is a 4-channel Proximitor / Seismic I/O module designed for full-height insertion into the rear of a 3500 machinery protection rack. Positioned directly behind the 3500/42M Proximitor Seismic Monitor main card, this module acts as the physical interface for landing proximity probes, Velomitor sensors, and piezo-velocity accelerometers.

Unlike external termination variants that require multi-pin cable harnesses running to remote DIN-rail blocks, the 128229-01 features integrated Euro-style screw terminals right on the card faceplate. This direct-landing layout eliminates intermediate wiring points, cutting installation time and removing additional contact resistance in sensitive, low-level sensor loops. Installing an authentic 128229-01 maintains API 670 signal accuracy for critical machinery vibration monitoring across high-stress industrial environments.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It is 1:45 AM, and a boiler feed pump trips unexpectedly at a combined-cycle power station. The DCS reports an open-circuit sensor fault on channel 3 of the main feed pump rack. After pulling cabinet doors, your instrument tech finds that an older external termination cable was crushed when a cabinet hinge pinched it, severing the raw signal wire for the inboard radial proximity probe. Swapping out a crushed cable assembly and separate DIN terminal block takes hours. Replacing the setup with a self-contained 128229-01 rear module lets you land the field wiring straight to the rack, landing stable shaft vibration signals back to the DCS before the startup window closes.

Key Industrial Scenarios

• Refineries & Ethylene Plants: Interface 3300 XL 8mm proximity probes monitoring radial shaft vibration and axial thrust position on multi-stage centrifugal gas compressors.
• Power Generation: Land Velomitor or accelerometer signals on steam turbine bearing pedestals to capture absolute casing vibration.
• Offshore Oil Platforms: Provide compact, direct-wired sensor terminations in space-constrained rack cabinets where external wiring blocks cannot fit.

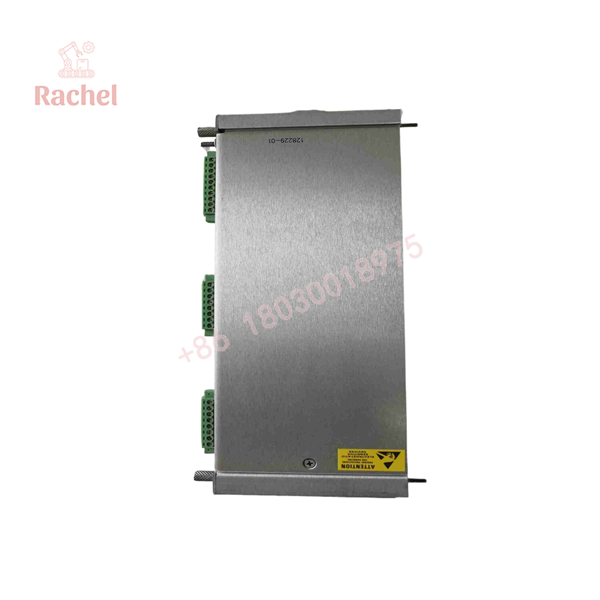

128229-01

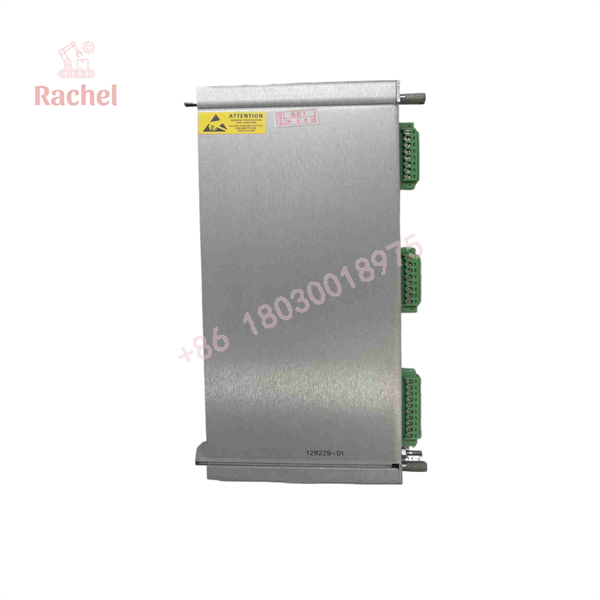

128229-01

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Bently Nevada 3500 racks.

1. Inbound Inspection: Multi-point visual check for board warping, damaged terminal screws, or compromised OEM solder joints under magnification.
2. Terminal Block Mechanical Inspection: Individual screw torque testing to check against stripped threads or loose clamping cages.
3. Power Output Verification: Measure the -24 VDC transducer power rail at each channel terminal block under simulated load.
4. Full Signal Loop Handshake: Seat the 128229-01 card behind a live 3500/42M main card; feed -2V to -18V DC proximity signals and dynamic 100 mV/g AC vibration signals through all 4 channels to confirm zero signal loss across the backplane edge connector.
5. Final QC & Anti-Static Packaging: Isopropyl cleaning of terminal pins, installation of protective terminal covers, and sealing in a heavy-duty ESD moisture-barrier bag with fresh desiccant.

The Veteran’s Tech Trap Guide

• ⚠️ Mismatched Internal vs. External Jumpers: Do not confuse the 128229-01 (Internal Terminations) with the 128229-02 (External Terminations) or standard 3500/42M I/O cards. The main 3500/42M front card uses onboard jumpers or software configuration to set termination styles. If your 3500 Rack Configuration software is set for “External Termination” while this 128229-01 card is installed, your channel readings will freeze or read invalid trans-fault codes.
• ❗ Shield Landing Practices: Keep your sensor cable shields isolated until they reach the 128229-01 shield terminals. Grounding the shield wire out at the field junction box and at the 128229-01 card creates a ground loop that introduces false 60 Hz/120 Hz spikes into your overall vibration trend lines.
• ⚠️ Hot-Swapping Signal Cable Clamps: While you can extract the 128229-01 card from the backplane with the rack powered, doing so breaks power to all 4 connected transducers simultaneously. If any of those channels belong to a 2-out-of-2 voting trip logic block on an active machine, bypass those channels on the 3500/42M front module before touching a screwdriver to the rear card.
• ❗ Wire Gauge Limits: The screw terminals on the 128229-01 comfortably fit 18 to 24 AWG stranded wire. Forcing 14 AWG field wiring into the small Euro terminals will crack the internal PCB solder pads right off the board trace.

Frequently Asked Questions (FAQ)

Q: What is the main difference between the 128229-01 and the 128229-02 I/O modules?

A: The 128229-01 uses internal screw terminals directly on the module faceplate for direct field wire landing. The 128229-02 uses multi-pin cable connectors designed to wire out to a remote, DIN-rail-mounted external termination block (ETB).

Q: Can I use this I/O module with standard 3300 XL Proximitor probes?

A: Yes. The 128229-01 provides the required -24 VDC excitation power and accepts standard raw gap voltage signals (-2V DC to -18V DC) from Bently Nevada 3300, 3300 XL, and 7200 series proximity transducer systems.

Q: Do I need to re-calibrate my 3500/42M monitor when replacing a damaged 128229-01?

A: No. The 128229-01 is a passive routing and signal conditioning interface card. Calibration scale factors (e.g., 200 mV/mil or 100 mV/g) are stored directly on the 3500/42M main front module and configured via the 3500 Rack Configuration Software.

Q: Why buy New Surplus stock instead of ordering straight from the OEM?

A: Lead times for 3500 series replacement cards from factory distribution channels can range from 8 to 16 weeks. Ordering our tested New Surplus inventory gets a factory-grade module to your plant in days, letting you clear rack fault alarms without waiting through long factory backorders.

Q: What warranty coverage applies to this module?

A: Every 128229-01 module ships with our full 12-month advance replacement warranty. If the module exhibits channel signal failure or terminal defects within one year, we send out a replacement immediately.
