Product Introduction & Engineering Value

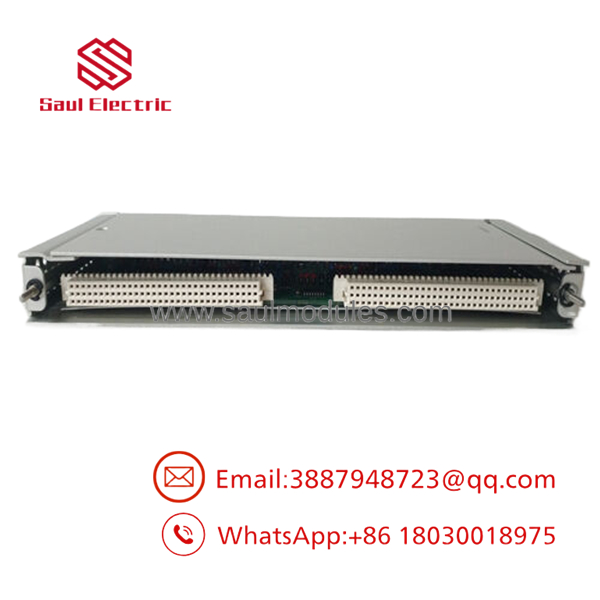

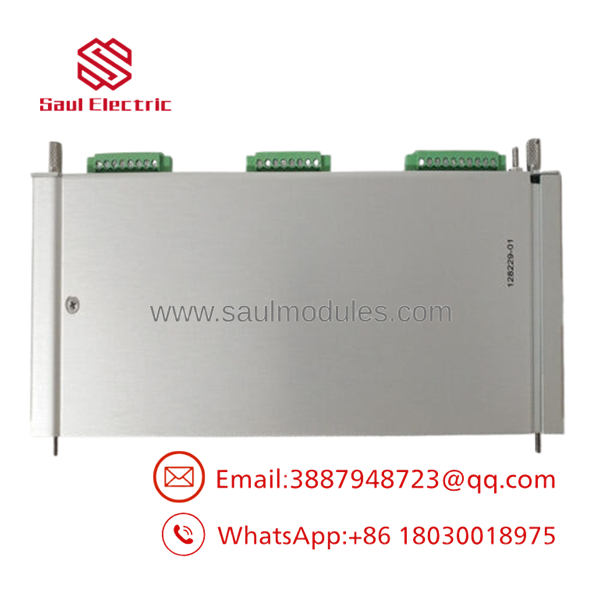

Nothing stops a reliability program faster than losing vibration data because the I/O module can’t handle the sensor wiring. The Bently Nevada 128229-01 delivers clean terminations and proper powering for proximity probes and seismic sensors directly on the back of the 3500 rack. It pairs with the 3500/42M four-channel monitor to keep shaft vibration, position, and casing measurements flowing without extra external boxes.
Engineers appreciate the internal termination design that simplifies panel wiring and reduces connection points that could fail over time. This module keeps the entire channel accurate from transducer to monitor relay output.
Technical Specifications
Sensor Support
- Proximity probes (eddy current)
- Velomitor piezoelectric velocity sensors
- Seismoprobe velocity transducers
Electrical
- Input Signal Range: -10 Vdc to +10 Vdc typical
- Transducer Power Supply: Integrated conditioning
- Power Consumption: Low draw from rack backplane
Environmental
- Operating Temperature: -30°C to +65°C
- Storage Temperature: -40°C to +85°C
- Humidity: Up to 95% non-condensing
Physical
- Dimensions: 241.3 mm height x 24.4 mm width x 99.1 mm depth
- Weight: 0.20 kg (0.44 lb)
- Mounting: Rear of 3500 rack matching monitor slot
- 128229-01
- 128229-01
Field Application & The “Trench” Experience
A paper mill in the Pacific Northwest had chronic false alarms on a dryer roll vibration channel. The existing I/O terminations had developed high resistance from years of humid conditions. Replacing it with the 128229-01 cleaned up the signal path. Gap voltages stabilized, alarms stopped nuisance tripping, and the maintenance team finally trusted the data for their scheduled bearing replacements.
Niche Applications
- Rolling element bearing vibration monitoring on paper machine dryers
- Shaft position and vibration on large induced draft fans in power boilers
- Seismic casing vibration on high-speed centrifugal compressors
Transparency SOP: QA & Testing
Each 128229-01 goes onto a test rack paired with a 3500/42M monitor and calibrated transducers. We verify proper transducer excitation voltage, accurate gap and dynamic signal passthrough, and correct alarm relay operation. Thermal cycling and vibration table tests confirm stability before release. Full traceability documentation ships with every New Surplus unit.
The Veteran’s Tech Trap Guide
⚠️ Probe Wiring Polarity — Proximity probes are sensitive to wiring orientation. Reversing the signal and common wires will give you inverted gap readings and false alarms.
PRO TIP: Use the internal termination jumpers correctly for your specific transducer type to avoid signal attenuation.
⚠️ Slot Alignment — The I/O module must match the exact slot position of its paired 3500/42M monitor. Mismatched positions create channel faults that confuse troubleshooting.
Dynamic FAQ
Q: What transducers work with the 128229-01 I/O module? A: It supports standard 3300XL proximity probes, Velomitor sensors, and Seismoprobe velocity transducers.
Q: Is internal termination standard on this part number? A: Yes, the 128229-01 includes internal terminations, simplifying field wiring compared to external termination versions.
Q: Does this module support TMR configurations? A: It works in TMR systems when used with the appropriate TMR monitor and RIM hardware.
Q: What warranty do New Surplus 128229-01 modules carry? A: They include our standard one-year warranty against manufacturing defects.
Q: Can I mix proximity and seismic sensors on the same 3500/42M monitor? A: Yes, the 128229-01 and 3500/42M support flexible channel configurations for different transducer types.
Q: How do I verify the I/O module is functioning after installation? A: Check the monitor’s front panel LEDs and use the configuration software to confirm proper gap voltages and dynamic signal response on each channel.
