Bently Nevada 128240-01 3500/42M Proximitor/Seismic I/O Module

Description

Product Introduction

The Bently Nevada 128240-01 is a four-channel rear Input/Output (I/O) interface module designed specifically to operate behind the 3500/42M Proximitor/Seismic Monitor inside the 3500 Machinery Protection System. Installed in the rear slot directly corresponding to the front 3500/42M main card, the 128240-01 provides the physical connection point for field-mounted vibration sensors.

Designed for External Termination architectures, the 128240-01 uses multi-pin cable connectors that link to DIN-rail mounted external termination blocks (ETBs). It routes -24V DC transducer power to field sensors and delivers dynamic proximity, acceleration, or velocity signals into the 3500/42M monitor for real-time processing, alarm detection, and machinery protection.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A critical combined-cycle gas turbine experiences a sudden loss of radial vibration data across Bearing 2 on the 3500 rack. The front 3500/42M card displays a channel hardware error, but diagnostic testing reveals the front monitor card is fully functional. Inspection at the back of the cabinet shows that moisture ingress damaged the multi-pin cable connector on the original rear 128240-01 card, degrading signal continuity between the external DIN-rail termination block and the backplane. Replacing the rear 128240-01 card and reconnecting the external termination cable immediately restores clean dynamic signals to the monitor, clearing the system fault without needing to disturb complex field wiring.

• Gas & Steam Turbines: Routes radial shaft vibration, axial position, and Keyphasor-aligned signals to the 3500 rack.
• Large Boiler Feed & Water Injection Pumps: Interfaces proximity probes and accelerometers via remote terminal cabinets.
• Refinery Centrifugal Compressors: Securely routes multi-channel vibration inputs in dense cabinet layouts using external multi-pin cable harnesses.
• 3500 System Maintenance & Spare Inventory: Critical replacement rear card for plants utilizing external termination block (ETB) architecture.

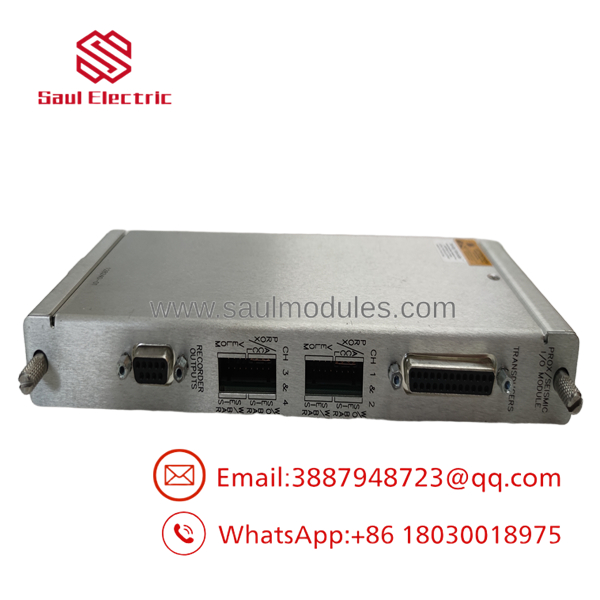

128240-01

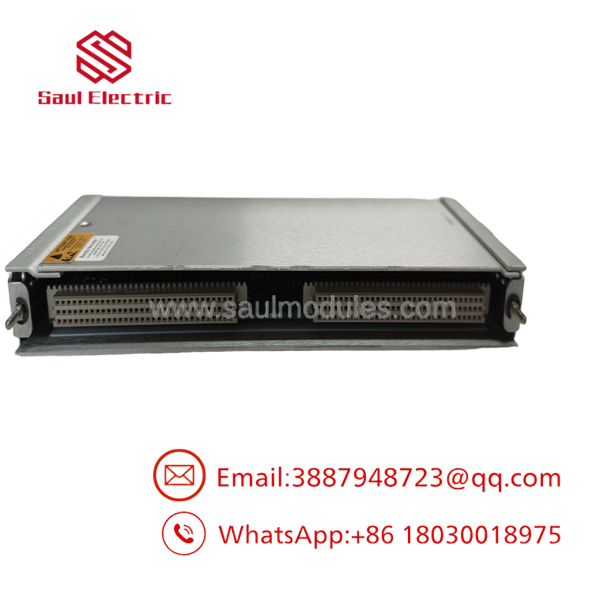

128240-01

Transparency SOP: Quality Assurance & Testing

1. Visual & Mechanical Inspection: Card edge backplane connectors, multi-pin external termination headers, and PCB traces are thoroughly checked for bent pins, corrosion, or mechanical damage.
2. Backplane & Compatibility Test: Installed into a live Bently Nevada 3500 test rack behind a functional 3500/42M main monitor to confirm slot address recognition and pin alignment.
3. Signal Pass-Through & Load Test:
   • Transducer Power Routing: Verified -24V DC transducer power distribution across all 4 channels.
   • Dynamic Signal Continuity: Precision AC/DC signals from a function generator are injected through an external termination cable to verify accurate pass-through to the front monitor across all 4 channels.
4. Final ESD Packaging: Cleaned, fitted with protective contact caps over connectors, sealed in anti-static shielding bags, and securely packed in custom foam boxes.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ External vs. Internal Termination Compatibility: The 128240-01 is explicitly designed for External Termination (it uses multi-pin cable headers to connect to an external DIN-rail terminal block). It cannot be used in place of internal termination rear cards (e.g., 128229-01 or 125840-01) where field wires connect directly to screw terminals on the card itself.
• ❗ Matching Front and Rear Card Types: Always verify that the front monitor card is a 3500/42M. Pairing the 128240-01 with incompatible main cards (like a 3500/40M or 3500/25) will trigger a card-mismatch configuration fault on the 3500/22M RIM.
• ⚠️ Termination Cable Strain Relief: Ensure the external multi-pin cable connected to the 128240-01 has adequate strain relief inside the cabinet. Cable tension can loosen the multi-pin header pins over time, resulting in intermittent sensor noise or false “NOT OK” channel alarms.
• ❗ Shielding at the External Terminal Block: Always ensure shield connections are properly grounded at the External Termination Block (ETB) side according to plant grounding guidelines to prevent 50/60 Hz ground loop noise from corrupting proximity transducer readings.

Frequently Asked Questions (FAQ)

Q: What is the main function of the Bently Nevada 128240-01?

A: It is the rear I/O module for the 3500/42M Proximitor/Seismic Monitor, providing external multi-pin cable connections for routing field sensor signals and -24V DC transducer power.

Q: What is the difference between internal and external termination modules in the 3500 series?

A: Internal termination modules feature screw terminals directly on the rear card where field wires attach. External termination modules (like the 128240-01) use a multi-pin cable that plugs into the rear card and runs to a separate DIN-rail terminal block inside or outside the cabinet.

Q: Can I replace a 128240-01 card while the 3500 rack is powered on?

A: Replacing rear I/O cards requires powering down the rack slot or disconnecting transducer field power to prevent accidental short circuits across backplane terminal pins. Always bypass downstream alarms in your DCS before performing maintenance.

Q: What sensor types are supported through the 128240-01 module?

A: It supports inputs from eddy-current Proximitor sensors, accelerometers, Velomitors, and Seismoprobes as configured on the front 3500/42M card via 3500 Rack Configuration Software.

Q: What warranty is provided on surplus or reconditioned 128240-01 cards?

A: All New Surplus and fully reconditioned Bently Nevada 128240-01 modules include a full 12-month replacement warranty from the invoice date.
