Bently Nevada 129478-01 DC Power Input Module

Description

Product Introduction & Engineering Value

Power-related faults inside a machinery protection rack rarely generate much attention—until the rack goes offline. The Bently Nevada 129478-01 serves as the high-voltage DC Power Input Module for the 3500/15 power supply assembly, providing the incoming DC source required to operate the entire 3500 monitoring rack.

It is commonly installed in facilities that distribute 125 VDC station power, including power generation plants, substations, and compressor stations. The module also supports redundant power architectures, allowing one power source to assume operation if the other becomes unavailable.

Technical Specifications

Field Application & The “Trench” Experience

During a scheduled outage at a natural gas compressor station, maintenance personnel replaced several aging vibration monitor modules, but the 3500 rack still reported intermittent power alarms. Voltage measurements confirmed that the incoming 125 VDC supply remained stable.

Further inspection revealed degraded contacts inside the existing 129478-01 Power Input Module. After installing a replacement module and verifying redundant power switchover, the rack resumed continuous operation. The maintenance team intentionally tested both power feeds before returning the compressor train to service, confirming uninterrupted operation during primary source isolation.

Typical application scenarios include:

• Gas turbine protection systems powered from 125 VDC station batteries
• Steam turbine machinery protection racks in thermal power plants
• Pipeline compressor station vibration monitoring systems with redundant DC power

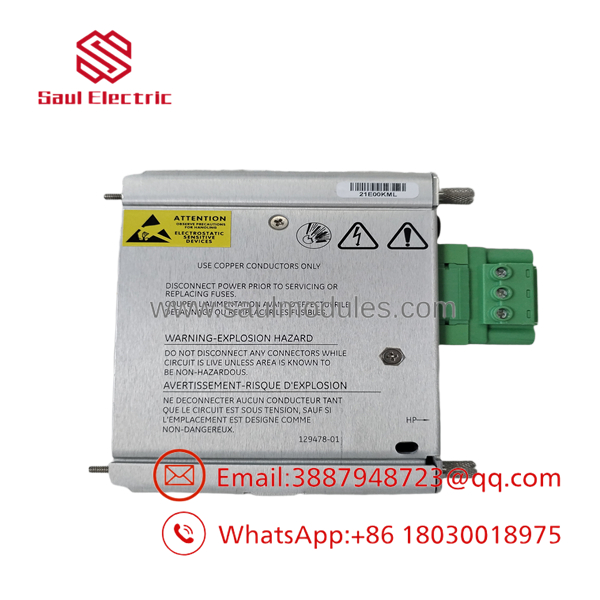

129478-01

129478-01

Transparency SOP: QA & Testing

Before shipment, every New Surplus or refurbished 129478-01 follows a documented inspection procedure:

1. Verify the manufacturer label, part number, and hardware revision.
2. Inspect terminals, housing, and connector surfaces for corrosion or mechanical damage.
3. Measure insulation resistance and electrical continuity.
4. Confirm proper terminal integrity and connector retention.
5. Perform functional verification using a compatible 3500/15 power supply assembly when available.
6. Package the module in anti-static material with protective cushioning for transport.

The Veteran’s Tech Trap Guide

⚠️ Don’t order the Power Supply by mistake.

The 129478-01 is the Power Input Module (PIM). It works together with the separate 3500/15 High Voltage DC Power Supply Module. These are different components and are not interchangeable.

⚠️ Verify your plant DC voltage.

This module is intended for 88–140 VDC applications. Plants operating on low-voltage 24 VDC systems require a different PIM variant. Installing the wrong input module prevents normal rack operation.

PRO TIP:

If your rack uses redundant power, inspect both the primary and backup input modules during the same outage. Replacing only one aging module often leaves the second as a future single point of failure.

Dynamic FAQ

Q1. What is the primary function of the 129478-01?

It accepts 88–140 VDC input and supplies power to the associated 3500/15 power supply module, which distributes operating voltages throughout the 3500 rack.

Q2. Can two 129478-01 modules be installed in one rack?

Yes. A 3500 rack can be configured with redundant power supplies, allowing one input module to support the primary supply while the second supports the backup supply for increased availability.

Q3. Does replacing this module require shutting down the rack?

Not necessarily. In a properly configured redundant system, one power supply can remain in service while the other is replaced. Site safety procedures and plant operating practices should always be followed.

Q4. Is this module compatible with every 3500 power supply?

No. The 129478-01 is specifically the High Voltage DC Power Input Module. Always verify the required input voltage and matching 3500/15 power supply configuration before ordering.

Q5. What is the difference between New Surplus and Refurbished inventory?

A New Surplus module has never been placed into industrial service, although it may originate from excess OEM inventory. A Refurbished module has been previously installed, then inspected, cleaned, tested, and verified before resale.

Q6. What warranty is typically available?

Warranty terms vary by supplier and inventory condition. Most reputable industrial automation suppliers provide warranty coverage for both New Surplus and professionally refurbished modules after documented inspection and functional testing.
