Description
Product Introduction & Engineering Value
Rotating machinery protection depends on accurate shaft reference signals. The Bently Nevada 135473-01 Keyphasor I/O Module provides the timing reference needed for vibration analysis, phase measurements, and advanced machinery diagnostics within a 3500 rack environment.
For turbines, compressors, and other critical rotating assets, a failed Keyphasor interface can affect diagnostic accuracy even when basic vibration channels remain active. Maintaining a verified 135473-01 spare helps maintenance teams restore monitoring capability without replacing the complete protection rack.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 135473-01 |
| Product Series | 3500 Machinery Protection System |
| Module Type | 3500/25 Keyphasor I/O Module |
| Input Type | Keyphasor signals from proximity probes or magnetic pickups |
| Channel Configuration | 2-channel half-height module |
| I/O Configuration | Internal barriers and internal terminations |
| Primary Function | Shaft speed and reference timing signal processing |
| Rack Compatibility | Bently Nevada 3500 rack system |
| Typical Power Consumption | Approximately 3.2 W |
| Operating Temperature | Depends on I/O configuration; industrial monitoring range |
| Installation Position | Rear I/O location associated with 3500/25 module |
Field Application & The “Trench” Experience
A power generation plant operating a steam turbine noticed that vibration monitoring data was available, but phase-related analysis became unreliable during startup and load changes.
The maintenance team reviewed probe condition, wiring integrity, and rack diagnostics. The vibration monitor channels were functioning, but the Keyphasor reference signal showed intermittent behavior. After testing, engineers identified the 3500/25 I/O section as the source of the issue.
Replacing the aging Bently Nevada 135473-01 module restored stable shaft reference signals. The plant was able to continue using the existing 3500 monitoring system without a full rack replacement.
Typical application scenarios include:
- Steam turbine phase reference monitoring
- Gas compressor overspeed and vibration analysis systems
- Large rotating machinery condition monitoring cabinets
- Critical asset predictive maintenance platforms

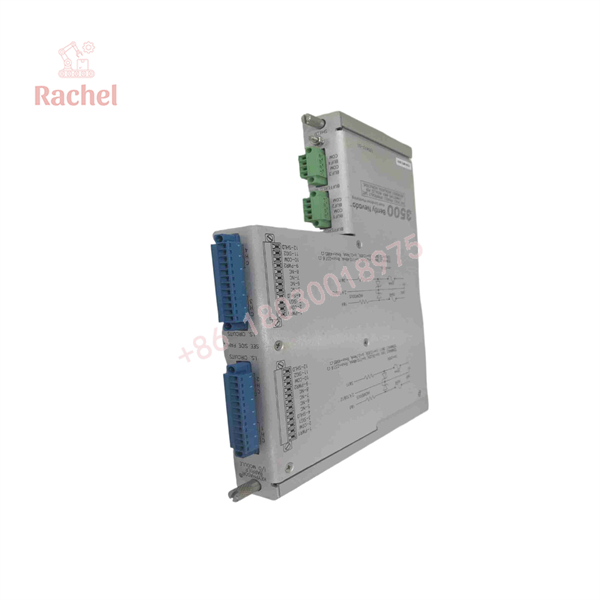

135473-01

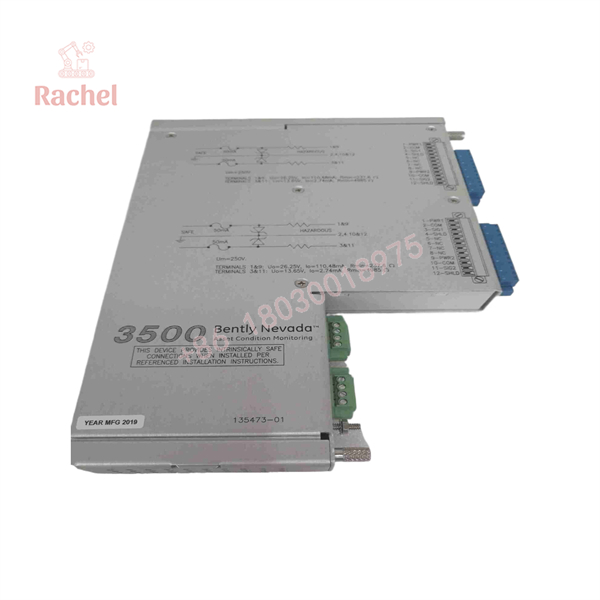

135473-01
Transparency SOP: QA & Testing
A Keyphasor module requires signal verification, not only visual inspection.
Inspection workflow:
1. Physical evaluation
- Confirm Bently Nevada part label
- Inspect front panel condition
- Check connectors and terminal blocks
- Review signs of contamination or mechanical damage
2. Electrical checks
- Verify module power-up response
- Check input/output interface condition
- Confirm internal barrier configuration
3. Functional testing
- Simulate or verify Keyphasor signal input when test equipment is available
- Confirm digital signal conversion
- Verify rack recognition and communication
- Record inspection results
The replacement module should match the existing 3500 rack configuration before commissioning.
The Veteran’s Tech Trap Guide
⚠️ Do not confuse 135473-01 with other 3500/25 I/O versions.
The 3500/25 family includes different termination and isolation options. A similar part number may not match the installed wiring configuration.
⚠️ A bad Keyphasor signal is not always a failed module.
Check probe condition, extension cables, mounting gap, and shaft marking before replacing electronics.
⚠️ Internal barrier versions require correct system configuration.
Hazardous-area installations depend on the correct barrier and grounding arrangement.
PRO TIP: Capture the existing 3500 rack configuration, probe type, and Keyphasor signal measurements before removing the module. This prevents unnecessary replacement cycles.
Dynamic FAQ
Q1. What is the Bently Nevada 135473-01 used for?
The 135473-01 is a 3500/25 Keyphasor I/O Module used to process shaft reference signals from proximity probes or magnetic pickups in Bently Nevada machinery protection systems.
Q2. Is the 135473-01 a complete Keyphasor monitor module?
The 135473-01 is the Keyphasor I/O module assembly associated with the 3500/25 system. The complete system includes the corresponding monitor hardware and rack configuration.
Q3. What sensors can work with the 135473-01?
The module is designed for Keyphasor signals from proximity probes or magnetic pickups.
Q4. Can 135473-01 directly replace another 3500/25 module?
Replacement depends on termination type, barrier requirements, rack configuration, and installed sensor wiring.
Q5. Is Bently Nevada 135473-01 available as new surplus?
Availability depends on supplier inventory. Units may be supplied as new surplus, tested used, or refurbished 3500 Series spare modules.
Q6. How is a refurbished 135473-01 tested?
Typical testing includes visual inspection, power verification, rack recognition checks, signal interface testing, and functional validation where suitable equipment is available.
Q7. What warranty is normally provided for this module?
Warranty coverage depends on supplier condition classification. New surplus and refurbished Bently Nevada modules generally have different warranty terms that should be confirmed before purchase.
