Bently Nevada 149369-01 Proximitor I/O Module

Description

Product Introduction

The Bently Nevada 149369-01 is a 4-channel Proximitor / Seismic I/O module engineered for rear-slot installation in a 3500 machinery protection chassis. Situated directly behind the 3500/42M Proximitor Seismic Monitor main module, this card serves as the direct landed connection point for field-installed proximity probes, Velomitors, and accelerometers.

Unlike external termination setups requiring multi-pin cable harnesses running to remote DIN-rail terminal blocks, the 149369-01 features integrated internal terminal strips right on the card faceplate. Direct wire landing reduces intermediate interconnect points, eliminating potential noise injection and high contact resistance in sensitive, low-level vibration loops. Installing an authentic 149369-01 preserves strict API 670 signal accuracy and guarantees seamless backplane communication across high-stress industrial environments.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

In our field experience, external cable harnesses in harsh plant environments are often the first thing to fail. Imagine a middle-of-the-night emergency trip on a main export gas compressor. The DCS logs a “Transducer Fault” alarm on channel 2 of the 3500 rack. You step into the local cabinet room only to find an external interconnect cable jacket degraded by ambient heat and oil mist, causing intermittent shielding faults on an axial thrust channel. Troubleshooting multi-point harness runs under intense pressure is a nightmare. Swapping in a self-contained 149369-01 rear card lets you land field wiring straight to the rack chassis, cutting out unnecessary failure points and restoring clean shaft displacement telemetry to the DCS before production goals slip.

Key Industrial Scenarios

• Refining & Petrochemical: Land 3300 XL proximity probe field wiring for radial vibration and axial thrust monitoring on critical un-spared turbomachinery.
• Power Generation: Route pedestal accelerometer and casing Velomitor signals directly into 3500 protection racks with minimal cabinet clutter.
• Offshore Platforms: Provide compact, direct-wired sensor terminations in space-constrained rack enclosures subject to continuous marine vibration.

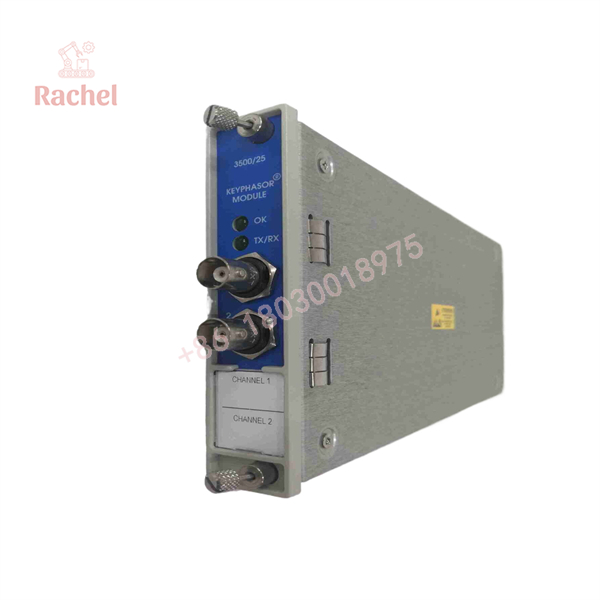

149369-01

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Bently Nevada 3500 racks.

1. Inbound Inspection: Multi-point visual check for board flex, solder pad integrity, and OEM serial verification under magnification.
2. Terminal Block Mechanical Inspection: Individual screw torque testing to ensure wire clamping cages hold firmly without stripping threads.
3. Power Rail Verification: Measure clean -24 VDC excitation power across all 4 transducer terminals under an active load.
4. Full Signal Loop Handshake: Seat the 149369-01 behind a live 3500/42M main card; feed dynamic AC vibration and DC gap voltage signals through all 4 channels to verify zero signal degradation across backplane edge connectors.
5. Final QC & Anti-Static Packaging: Isopropyl cleaning of contacts, installation of protective terminal covers, and sealing in a heavy-duty ESD moisture-barrier bag with fresh desiccant.

The Veteran’s Tech Trap Guide

• ⚠️ Mismatched Rack Software Termination Settings: Check your 3500 Rack Configuration Software before commissioning! The 3500/42M slot must be explicitly set to “Internal Termination.” Leaving the software configured for “External Termination” while running a 149369-01 card triggers software configuration fault alarms and freezes live monitoring channels.
• ❗ Shield Grounding Discipline: Keep field cable shields insulated until they reach the dedicated shield terminals on the 149369-01 faceplate. Grounding the shield wire at both the field sensor housing and the 149369-01 module creates a ground loop that corrupts your vibration spectrum with heavy 60 Hz electrical noise.
• ⚠️ Bypassing Trip Logic Prior to Extraction: While the 3500 rack supports hot swapping rear cards, pulling a 149369-01 instantly cuts -24 VDC power to all 4 connected field sensors. If any of those channels belong to an active 2-out-of-2 voting trip matrix, always place the 3500/42M front module into “Bypass” mode in software before loosening the card screws.
• ❗ Conductor Gauge Restrictions: The screw terminals on the 149369-01 comfortably accept 18 to 24 AWG stranded wire. Forcing heavy 14 AWG field wiring into these terminals will strain the terminal block and snap internal PCB traces right off the board.

Frequently Asked Questions (FAQ)

Q: What is the main difference between internal termination (149369-01) and external termination modules?

A: The 149369-01 uses terminal blocks mounted directly on the rear module faceplate for direct field wire landing. External termination modules use multi-pin cable connectors that run out to a remote, DIN-rail-mounted external termination block (ETB) elsewhere in the cabinet.

Q: Can I use the 149369-01 module with standard 3300 XL Proximitor probes?

A: Yes. The 149369-01 provides the required -24 VDC excitation power and handles raw gap voltage signals (-2V DC to -18V DC) from Bently Nevada 3300, 3300 XL, and 7200 series proximity transducer systems.

Q: Do I need to recalibrate my vibration channels after replacing a damaged 149369-01 card?

A: No. The 149369-01 is a passive signal routing and conditioning interface card. All transducer scale factors (e.g., 200 mV/mil or 100 mV/g) and alarm logic setpoints are stored and processed on the 3500/42M main front card.

Q: Why choose New Surplus stock over ordering direct from the OEM?

A: Factory lead times for 3500 series replacement cards from OEM distribution channels frequently stretch from 8 to 16 weeks. Purchasing our tested New Surplus stock guarantees delivery in days, allowing you to clear rack fault alarms immediately without paying inflated emergency expedite fees.

Q: What warranty coverage applies to this module?

A: Every 149369-01 module ships with our full 12-month advance replacement warranty. If the board exhibits channel signal failure or terminal defects within one year, we swap it out immediately from our ready stock.
