Product Introduction
The Bently Nevada 1900/65A-00-00-01-00-00 is a compact General Purpose Equipment Monitor designed to provide continuous machinery protection for essential rotating equipment that does not require the complexity or cost of a full 3500 Series protection system. It supports multiple vibration sensor technologies along with temperature monitoring, making it suitable for pumps, fans, motors, compressors, and other balance-of-plant assets.
Unlike the 3500 platform, which targets critical turbomachinery, the 1900/65A focuses on cost-effective protection for general industrial equipment. In our field experience, it fills the gap between portable vibration analysis and enterprise-class protection systems. One thing to watch out for is selecting the correct ordering options because display, communications, approvals, and mounting hardware are configuration-dependent.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 1900/65A-00-00-01-00-00 |
| Product Type | General Purpose Equipment Monitor |
| Power Supply | 18–36 VDC |
| Transducer Inputs | 4 configurable channels |
| Temperature Inputs | 4 channels |
| Supported Sensors | Proximity probes, Velocity sensors, 2-wire & 3-wire Accelerometers |
| Temperature Sensor Types | Type E, J, K, T Thermocouples; 2- and 3-wire RTDs |
| Relay Outputs | 6 programmable relays |
| Analog Outputs | 4 × 4–20 mA recorder outputs |
| Buffered Output | 1 dedicated buffered output |
| Mounting | DIN Rail |
| Display | None |
| Communications | None |
| Operating Temperature | -20°C to +70°C |

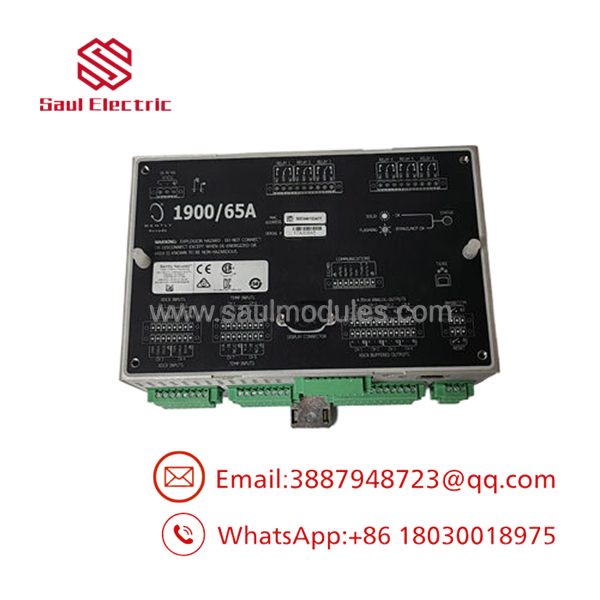

- 1900/65A-00-00-01-00-00

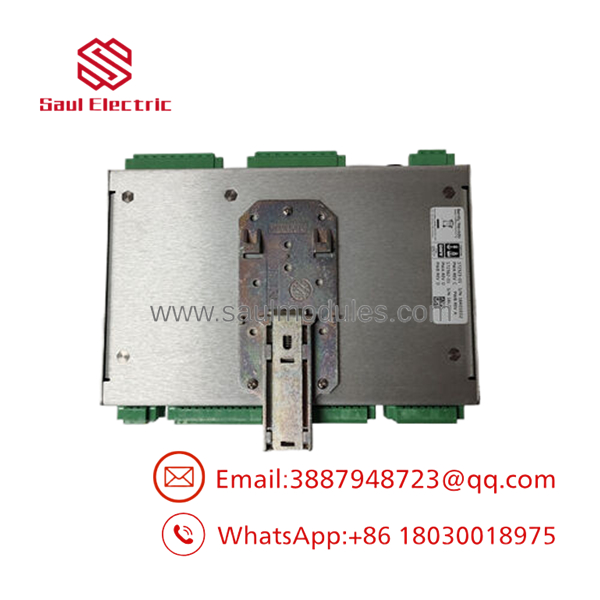

- 1900/65A-00-00-01-00-00
Application Scenarios & The “Trench” Experience
The pump wasn’t critical enough for a 3500 rack.
But it was important enough that production stopped when it failed.
That’s exactly where the 1900/65A fits.
I’ve seen facilities rely entirely on periodic handheld vibration checks. Everything looked fine on Monday. By Thursday afternoon, the motor bearing had failed, shutting down an entire water treatment line.
Continuous monitoring would have shown the vibration trend days before the failure.
Typical Applications
Water Treatment – Pump Protection –
Provides continuous vibration and temperature monitoring for primary and booster pumps where a full rack-based protection system would be difficult to justify.
Oil & Gas – Auxiliary Compressors –
Monitors vibration, shaft speed, and bearing temperatures while providing relay outputs for alarm and shutdown.
Power Generation – Cooling Water Pumps –
Protects essential balance-of-plant equipment using configurable vibration and temperature channels.
Mining & Cement – Conveyor Drive Motors –
Detects developing bearing faults before catastrophic motor failures occur.
Manufacturing – Process Fans and Blowers –
Provides local machinery protection with relay outputs for PLC or MCC integration.
Field Replacement Example
A paper mill repeatedly experienced nuisance shutdowns on an induced draft fan.
Motor current remained normal.
Temperature remained normal.
The vibration monitor, however, showed steadily increasing overall vibration caused by a deteriorating bearing.
Replacing the bearing during a scheduled maintenance window prevented an unplanned shutdown that would have halted production for an entire shift.
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Bently Nevada monitoring equipment.
1. Inbound Inspection
- Verify OEM labels and serial numbers.
- Inspect terminal blocks and DIN rail clips.
- Check housing integrity.
- Screen for counterfeit labels and unauthorized repairs.
2. Live Rig Testing
- Power the monitor using a regulated 24 VDC supply.
- Verify boot sequence.
- Simulate proximity, velocity, and accelerometer inputs.
- Confirm alarm relay operation.
3. Electrical Parameter Checks
- Verify analog input scaling.
- Test relay switching.
- Confirm 4–20 mA recorder outputs.
- Verify buffered output performance.
4. Firmware Verification
- Record firmware revision.
- Verify configuration memory.
- Confirm compatibility with supported configuration software.
5. Final QC & Anti-Static Packaging
- Complete functional testing.
- Protect connectors against shipping damage.
- Package in ESD-safe materials.
- Include inspection documentation upon request.
The Veteran’s Tech Trap Guide
⚠️ Don’t assume every vibration sensor is compatible.
The 1900/65A supports several transducer types, but each channel must be configured correctly. Installing a proximity probe with an accelerometer configuration will produce misleading measurements.
❗ Order code matters more than most people realize.
This specific model (1900/65A-00-00-01-00-00) includes 18–36 VDC power, no display, DIN rail mounting, no hazardous-area approvals, and no communications. Verify these options before ordering a replacement.
⚠️ Save the configuration before replacing the monitor.
Configuration files contain alarm limits, relay logic, and sensor settings. Losing them can significantly increase commissioning time.
❗ Check the relay logic before startup. Trust me.
Many unexpected shutdowns result from relay configuration errors rather than hardware failures.
Frequently Asked Questions (FAQ)
Q1: What is the primary purpose of the 1900/65A-00-00-01-00-00?
A: It provides continuous vibration and temperature monitoring for general-purpose rotating equipment while generating alarm and shutdown signals through programmable relays.
Q2: What sensors can this monitor support?
A: It supports 2-wire and 3-wire accelerometers, velocity sensors, proximity probes, thermocouples (Type E, J, K, T), and 2- or 3-wire RTDs.
Q3: Does this configuration include Ethernet or Modbus communication?
A: No. The 1900/65A-00-00-01-00-00 has Communications Option 00, meaning it does not include the optional Modbus communication feature.
Q4: Is this monitor intended to replace a 3500 Series system?
A: No. The 1900/65A is intended for general-purpose and balance-of-plant machinery. Critical turbomachinery that requires API 670-compliant protection is typically better served by the Bently Nevada 3500 platform.
Q5: Can this model be DIN rail mounted?
A: Yes. This specific ordering code includes Mounting Option 01, which provides DIN rail mounting.
Q6: Why are surplus units less expensive than buying directly from the OEM?
A: Most surplus units come from modernization projects, cancelled installations, or unused maintenance inventory. Price reflects sourcing rather than performance. Functional testing, traceability, and documented inspection are much better indicators of quality than purchase channel alone.
Q7: What warranty is typically available?
A: Most reputable industrial automation suppliers provide a 12-month warranty on professionally tested surplus or refurbished Bently Nevada 1900/65A-00-00-01-00-00 monitors. Before purchasing, request the functional test report, configuration verification, and serial-number documentation.
