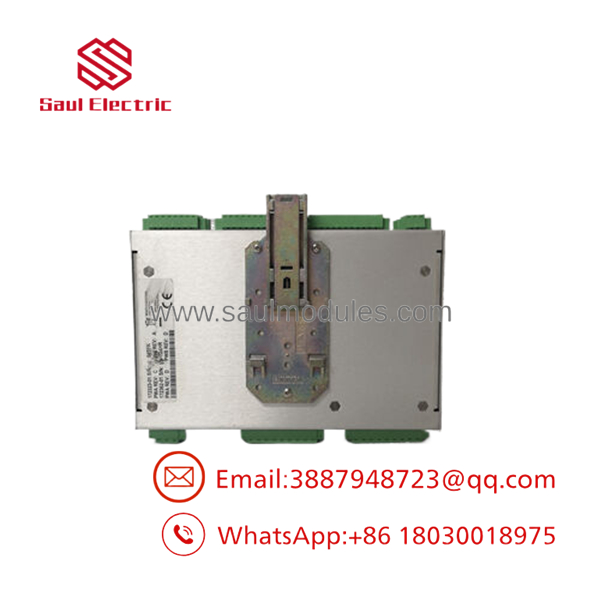

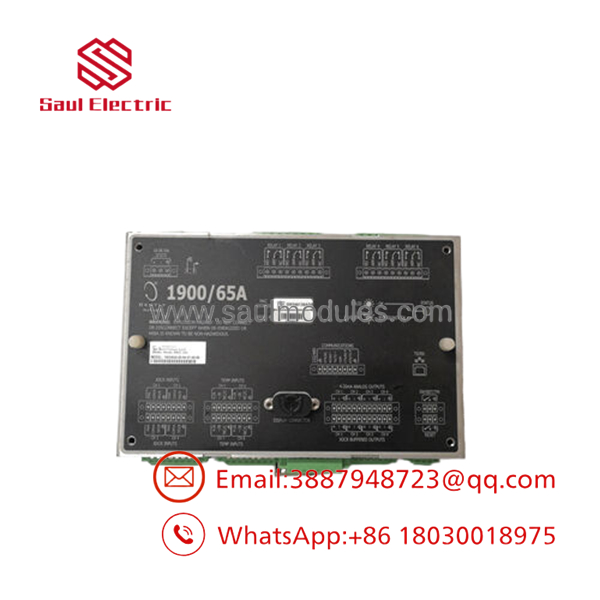

Bently Nevada 190065A-00-04-01-00-00 General Purpose Equipment Monitor

Description

Product Introduction

The Bently Nevada 190065A-00-04-01-00-00 is a compact General Purpose Equipment Monitor intended for continuous condition monitoring of balance-of-plant machinery. Unlike the larger 3500 Series, the 1900/65A targets pumps, fans, motors, blowers, gearboxes, and other essential rotating assets where a full rack-based protection system would be difficult to justify. It combines vibration, temperature, speed, and position monitoring into a single standalone unit.

In our field experience, the 1900/65A fills the gap between portable data collection and full machinery protection systems. One thing to watch out for is the ordering code. The suffix determines the display option, mounting method, communications, and power supply. Verify every suffix before ordering because two monitors with similar base model numbers can have very different hardware configurations.

Key Technical Specifications

190065A-00-04-01-00-00

190065A-00-04-01-00-00

Application Scenarios & The “Trench” Experience

The compressor wasn’t considered critical.

Management didn’t approve a 3500 rack.

Three months later the motor bearing failed without warning.

That story repeats itself in many plants.

Large turbines receive expensive protection systems, while dozens of smaller machines run until they fail. The 1900/65A was developed specifically for these assets, providing continuous vibration and temperature monitoring without the cost and cabinet space required for a full rack system.

Typical Applications

Water Treatment – High-Service Pumps –
Monitors vibration and bearing temperature on continuously operating centrifugal pumps.

Power Generation – Auxiliary Equipment –
Protects cooling water pumps, condensate pumps, and boiler feed auxiliaries where a 3500 system would be excessive.

Oil & Gas – Air Compressors –
Measures shaft vibration, bearing temperature, and speed while generating alarm and shutdown signals.

Mining – Conveyor Drives –
Monitors gearbox and motor health using accelerometers and RTDs.

Manufacturing – Large Fans and Blowers –
Provides early warning of imbalance, bearing wear, and overheating before production is interrupted.

Field Replacement Example

A paper mill experienced repeated failures on an induced draft fan motor.

Monthly vibration routes showed nothing unusual.

Between inspection intervals, the bearing temperature increased rapidly.

After installing the 190065A-00-04-01-00-00, operators detected a gradual rise in bearing temperature and vibration several days before failure. Maintenance replaced the bearing during a scheduled shutdown instead of an emergency outage. The cost of the monitor was considerably lower than the production loss from an unplanned shutdown.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Bently Nevada monitoring systems.

1. Inbound Inspection

• Verify OEM labels and serial numbers.
• Inspect terminal blocks, display connector, and enclosure.
• Check for signs of overheating or unauthorized repairs.

2. Live Rig Testing

• Power the monitor using a regulated 24 VDC supply.
• Simulate vibration, speed, and temperature inputs.
• Verify alarm logic and relay operation.
• Test remote display communication.

3. Electrical Parameter Checks

• Verify analog output accuracy.
• Confirm buffered output performance.
• Test relay switching.
• Verify power consumption.

4. Firmware Verification

• Record firmware revision.
• Verify successful configuration upload and download.
• Confirm Ethernet communication.

5. Final QC & Anti-Static Packaging

• Perform a complete functional test.
• Package in ESD-safe materials.
• Protect connectors and display cable.
• Archive all test records.

The Veteran’s Tech Trap Guide

⚠️ Don’t assume every 1900/65A has the same options.
The suffix codes define the power supply, display, mounting, approvals, and communications. Verify the complete ordering code before replacing the unit.

❗ Check the power source first.
This configuration requires 18–36 VDC. Applying AC power directly will damage the monitor.

⚠️ Label every sensor cable before disconnecting it.
With four vibration channels and four temperature channels, swapping cables during replacement creates misleading alarms that resemble machine faults.

❗ Back up the configuration. Trust me.
The 1900 Configuration Software stores alarm limits, relay logic, sensor types, and scaling. Rebuilding a lost configuration from memory during an outage wastes valuable time.

Frequently Asked Questions (FAQ)

Q1: What does the 190065A-00-04-01-00-00 monitor?

A: It continuously monitors vibration, shaft position, speed, and temperature using up to four transducer inputs and four temperature inputs, providing alarms and relay outputs for machinery protection.

Q2: Which sensors are supported?

A: The monitor supports 2-wire and 3-wire accelerometers, velocity sensors, proximity probes, RTDs, and Type E, J, K, and T thermocouples.

Q3: Does this model include Modbus communications?

A: No. The -00 communications suffix indicates no Modbus Gateway option. If Modbus connectivity is required, select a model with the -01 communications option or upgrade the monitor using the 1900/01 Communications Upgrade, where supported.

Q4: How does the 1900/65A differ from the 3500 Series?

A: The 1900/65A is a standalone monitor intended for general-purpose machinery. The 3500 Series is a modular rack-based machinery protection system designed for highly critical rotating equipment requiring extensive redundancy and expansion capabilities.

Q5: Is this monitor suitable for SIL or API 670 turbine protection?

A: Generally, no. The 1900/65A is intended for general-purpose equipment monitoring. Critical turbine protection systems typically require the Bently Nevada 3500 Series or equivalent machinery protection platforms designed for those applications.

Q6: Why is surplus inventory less expensive than buying directly from the OEM?

A: Most surplus units originate from canceled projects, plant upgrades, or unused maintenance inventory. Lower pricing reflects procurement channels rather than reduced functionality. Always request a functional test report, firmware verification, and traceable serial numbers before purchasing.

Q7: What warranty is typically offered?

A: Most reputable industrial automation suppliers provide a 12-month warranty on professionally tested surplus or refurbished Bently Nevada 190065A-00-04-01-00-00 monitors. Before purchasing, request documentation covering input simulation tests, relay verification, analog output calibration, firmware revision, and complete functional testing.
