Bently Nevada 190065A 1900/65A General Purpose Equipment Monitor

Description

Product Introduction

The Bently Nevada 190065A (representing the core 1900/65A module assembly) is a flexible, standalone machinery protection system engineered for balance-of-plant equipment where a full-sized 3500 rack is economically unfeasible. Capable of functioning entirely on its own or networked into plant-wide automation systems, the 1900/65A delivers API 670-compliant continuous protection for essential rotating and reciprocating assets.

Unlike modular rack-based rear cards, the 190065A incorporates signal conditioning, trip relay logic, dynamic data buffering, and optional display output into a single integrated housing. It accepts up to 4 dynamic vibration sensor inputs alongside 4 temperature inputs, giving plant engineers comprehensive machinery protection in a compact DIN-rail or panel-mount footprint.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

In a water treatment facility, critical cooling pumps and auxiliary blowers operate without continuous monitoring because installing a centralized 3500 rack system is cost-prohibitive. When a bearing fails unexpectedly on an unmonitored raw water pump, it causes costly downtime and secondary casing damage. Deploying a 190065A monitor directly inside a local panel beside the pump skid allows technicians to connect two proximity probes, an accelerometer, and two RTD temperature leads into a single unit. The 190065A continuously evaluates overall vibration levels and bearing temperatures, triggering automated shutdown relays prior to catastrophic failure while feeding real-time Modbus data to the central PLC.

• Balance-of-Plant (BOP) Assets: Continuous monitoring for boiler feed pumps, cooling tower fans, blowers, and centrifuges.
• Remote Pumping & Compression Skids: Standalone protection for gas pipeline booster pumps or offshore water injection skids.
• OEM Equipment Integration: Compact machinery protection solution pre-installed by skid builders on packaged gearboxes and motor sets.
• System Upgrades & Retrofits: Direct replacement for legacy 1900 series or obsolete 1800 series standalone monitors.

Transparency SOP: Quality Assurance & Testing

1. Visual & Housing Inspection: Terminal connectors, display screen (if equipped), aluminum housing, and mounting tabs are checked for cracks, bent pins, or thermal stress.
2. Power & Boot Diagnostics: Powered via 18-36V DC or 110/220V AC (depending on ordering options) to verify boot-up sequence, firmware initialization, and front panel LED status.
3. Signal Input & Relay Pass-Through Audit:
   • Dynamic Input Testing: Precision AC/DC signals are injected into all 4 dynamic channels to verify accurate peak-to-peak and RMS vibration readings.
   • Temperature Input Calibration: Resistance values (simulating Pt100 RTDs) are applied to temperature channels to confirm accuracy across the operational range.
   • Relay State Verification: Alert and Danger threshold breaches are simulated to confirm solid-state relay contact switching and trip logic execution.
4. Final ESD Packaging: Cleaned, fitted with terminal protective covers, sealed in anti-static shielding bags, and packaged in heavy-duty foam containers.

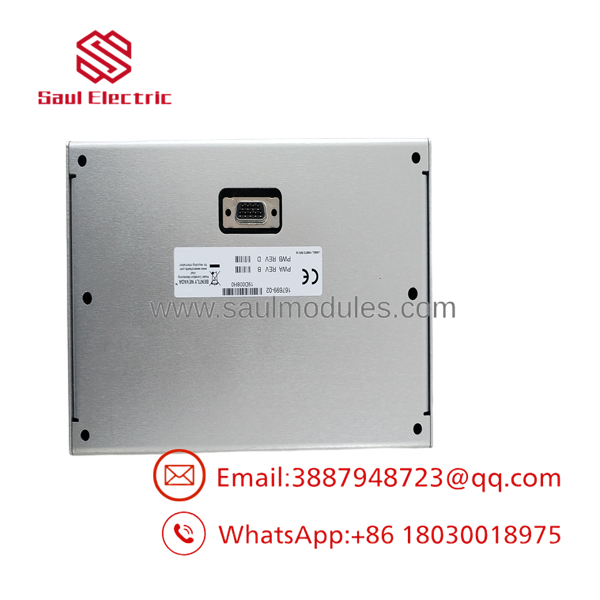

190065A

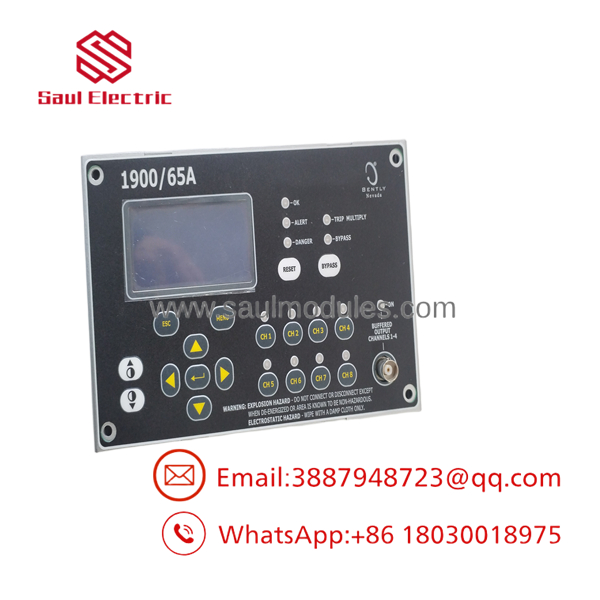

190065A

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Ordering Option Number Variations: The “190065A” part number is followed by specific option suffixes (e.g., 190065A-AA-BB-CC-DD-EE) defining power supply type, display type, mounting configuration, and hazardous area approvals. Always verify full suffix codes when swapping out units to ensure voltage and housing compatibility.
• ❗ Software Configuration Access: The 1900/65A requires the 1900 Configuration Software (connected via Ethernet or RS232/RS485) to program transducer sensitivities, full-scale ranges, relay voting logic (1-of-2, 2-of-2), and trip delays. Ensure configuration files are saved prior to swapping hardware.
• ⚠️ Buffered Output BNC Caution: The buffered diagnostic outputs on the 1900/65A front panel are buffered and isolated. However, ensure portable analyzer ground pins are clean when plugging into the BNC ports to prevent noise pickup during transient analysis.
• ❗ Transducer Power Settings: Confirm that the internal software jumper or configuration setting for transducer power match the sensor connected (e.g., -24V DC for proximity probes vs. constant current for IEPE accelerometers).

Frequently Asked Questions (FAQ)

Q: What is the main function of the Bently Nevada 190065A?

A: It is a standalone, multi-channel machinery health monitor designed to continuously measure vibration, position, speed, and temperature on general-purpose rotating machinery without requiring a 3500 system rack.

Q: How many dynamic and temperature channels does the 190065A support?

A: It features 4 configurable dynamic vibration/position channels and 4 configurable temperature/process channels (supporting RTDs, thermocouples, or 4-20mA inputs).

Q: Can the 190065A communicate directly with a plant DCS or PLC?

A: Yes. It features built-in Modbus TCP (Ethernet) and Modbus RTU (RS485) communication protocols for continuous data transmission to plant control systems.

Q: Is the 190065A a replacement for the Bently Nevada 3500 system?

A: No. While the 3500 system is designed for high-density, highly critical turbomachinery, the 190065A is tailored for standalone, balance-of-plant, or lower-point-count machinery protection applications.

Q: What warranty is provided on surplus or reconditioned 190065A modules?

A: All New Surplus and fully reconditioned Bently Nevada 190065A modules include a full 12-month replacement warranty from the invoice date.
