Description
Product Introduction & Engineering Value
A vibration monitoring system must deliver stable measurement data before operators can make reliable maintenance decisions. The Bently Nevada 3300/80 Dual Vibration Monitor provides two-channel vibration signal processing for critical rotating equipment where continuous monitoring is required.
The 330780-50-00 supports existing Bently Nevada 3300 installations by allowing engineers to replace individual failed monitoring modules while maintaining the original rack architecture, wiring design, and machinery protection strategy.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330780-50-00 |
| Product Name | 3300/80 Dual Vibration Monitor |
| System Platform | Bently Nevada 3300 Machinery Protection System |
| Module Type | Rack-mounted vibration monitoring module |
| Measurement Channels | Two vibration channels |
| Input Type | Proximity probe signal |
| Sensor Technology | Eddy-current displacement measurement |
| Monitoring Function | Radial vibration measurement |
| Alarm Capability | Alert and Danger monitoring |
| Installation | 3300 rack slot |
| Power Supply | Rack backplane supplied |
| Application | Rotating equipment protection |
Field Application & The “Trench” Experience”
A refinery maintenance group supporting multiple centrifugal compressors noticed that one machine was generating inconsistent vibration trends. The operating team initially suspected bearing wear because the alarm pattern appeared during higher process loads.
Instrumentation engineers reviewed the protection rack and compared signals from adjacent channels. The investigation showed the vibration monitor module was producing unstable readings despite normal probe operation. A tested Bently Nevada 330780-50-00 replacement was installed, followed by channel verification and alarm validation.
The compressor returned to stable condition monitoring without requiring a complete protection system replacement.
Typical application scenarios include:
Compressor protection systems
- Bearing vibration monitoring
- Mechanical condition tracking
- Shutdown protection input support
Turbine monitoring applications
- Rotor vibration measurement
- Startup condition analysis
- Continuous machinery supervision
Industrial rotating equipment
- Pumps
- Blowers
- Expanders
- Legacy 3300 machinery protection cabinets

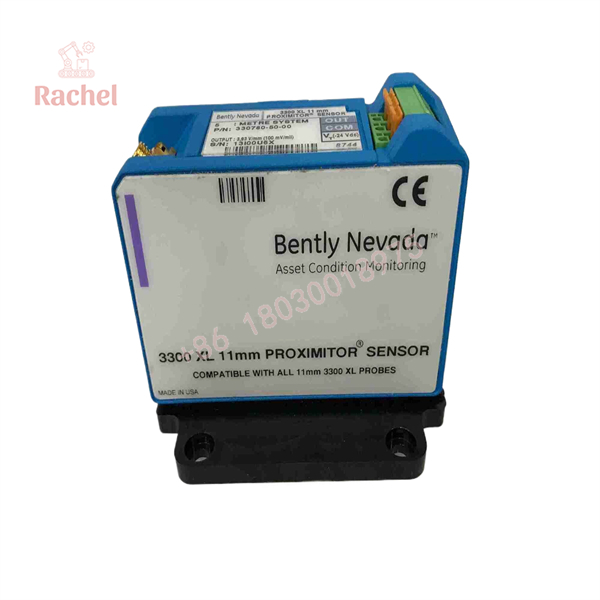

330780-50-00

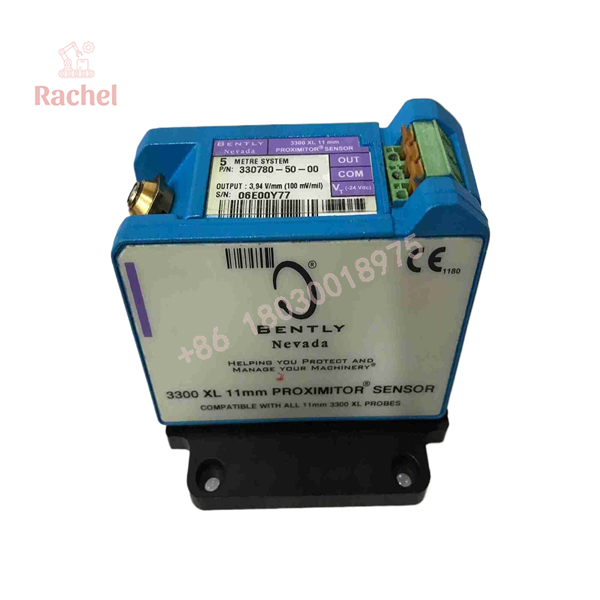

330780-50-00
Transparency SOP: QA & Testing
Vibration monitoring modules require signal accuracy verification before being returned to service.
Testing procedure:
1. Identification check
- Confirm model number and option code
- Inspect module label
- Verify physical condition
2. Hardware inspection
- Check rack connector contacts
- Inspect PCB condition
- Review front panel indicators
3. Signal testing
- Apply compatible vibration input signals
- Verify channel response
- Confirm alarm functions
4. Final release
- Document test results
- Assign stock condition
- Package using ESD protection
The Veteran’s Tech Trap Guide
⚠️ PRO TIP: Confirm the sensor chain before replacing the monitor.
A faulty probe, extension cable, or incorrect probe gap can produce symptoms identical to a failed vibration module.
⚠️ Do not assume every 3300 vibration module is interchangeable.
Different Bently Nevada modules may share similar housings while supporting different measurement functions.
⚠️ Review alarm parameters after installation.
A replacement monitor restores hardware operation, but Alert and Danger settings should be verified against the original machinery protection documentation.
Dynamic FAQ
Q1: What is the Bently Nevada 330780-50-00 used for?
The 330780-50-00 is a Bently Nevada 3300/80 Dual Vibration Monitor used for monitoring rotating equipment vibration signals within a 3300 machinery protection rack.
Q2: What equipment typically uses this module?
Common applications include compressors, turbines, pumps, and other critical rotating machinery requiring continuous vibration monitoring.
Q3: Is the 330780-50-00 a standalone device?
No. It is designed to operate as a rack-mounted module within the Bently Nevada 3300 Machinery Protection System.
Q4: What should be checked before replacing this module?
Verify:
- Full part number
- Existing 3300 rack configuration
- Probe model
- Channel assignment
- Alarm settings
Q5: Are refurbished Bently Nevada 330780-50-00 modules tested?
Professional automation suppliers typically perform visual inspection, electrical verification, and functional testing before shipping refurbished units.
Q6: What warranty is available for this module?
Warranty terms depend on supplier policy and stock condition. Buyers should confirm testing records, warranty period, and return terms before purchase.
Q7: Why do plants continue maintaining 3300/80 modules?
Many facilities continue operating installed Bently Nevada 3300 systems because they are integrated into critical machinery protection applications. Replacement modules help extend the service life of existing monitoring cabinets.
