Description
Product Introduction & Engineering Value
Rotating equipment protection depends on accurate vibration information arriving at the monitoring rack without distortion. The Bently Nevada 3300/80 vibration monitor provides the measurement path required for continuous machinery condition supervision in critical applications.
The 330980-71-CN supports engineers maintaining existing Bently Nevada 3300 installations where minimizing downtime is the priority. Replacing a failed monitoring module allows plants to keep proven protection logic and established field wiring.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330980-71-CN |
| Product Family | 3300/80 Dual Vibration Monitor |
| System Platform | Bently Nevada 3300 Machinery Protection System |
| Module Type | Rack-mounted vibration monitor |
| Measurement Channels | Two vibration channels |
| Input Signal | Proximity probe displacement signal |
| Sensor Technology | Eddy-current proximity measurement |
| Monitoring Function | Radial vibration measurement |
| Rack Interface | 3300 backplane connection |
| Alarm Function | Machinery protection alarm monitoring |
| Application | Rotating equipment condition monitoring |
Field Application & The “Trench” Experience
A refinery maintenance department experienced unexpected vibration alarms on a high-speed compressor during normal production. The mechanical inspection team found no obvious bearing or coupling problems, but the protection system continued reporting unstable readings.
The instrumentation group compared data from multiple monitoring channels and identified the vibration monitor module as the likely source of inconsistent measurement. After installing a tested Bently Nevada 330980-71-CN, technicians verified the proximity probe signals, confirmed channel response, and reviewed alarm thresholds.
The compressor protection system returned to normal operation without replacing the complete 3300 monitoring rack.
Typical application scenarios include:
Gas compression systems
- Compressor bearing vibration monitoring
- Rotating shaft condition analysis
- Machinery shutdown protection
Power generation equipment
- Turbine vibration supervision
- Generator auxiliary machinery monitoring
- Startup condition tracking
Process plant machinery
- Centrifugal pumps
- Fans and blowers
- Existing Bently Nevada 3300 cabinets

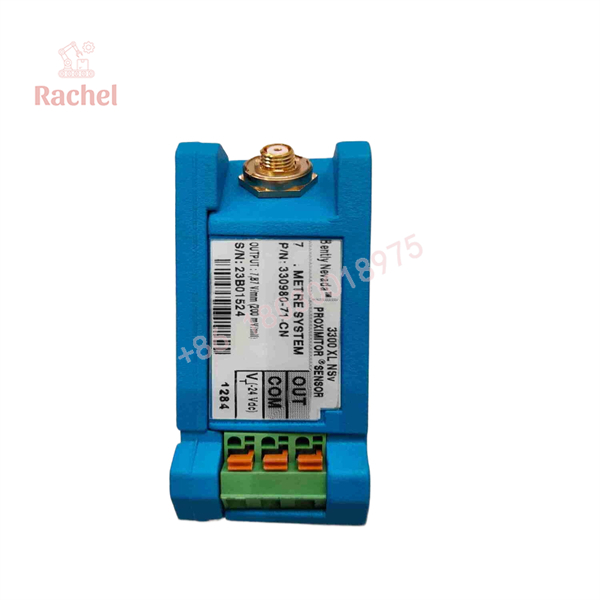

330980-71-CN

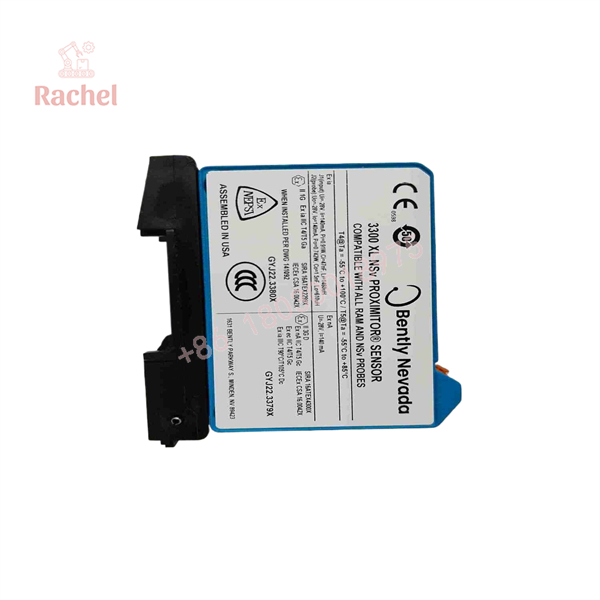

330980-71-CN
Transparency SOP: QA & Testing
A vibration monitor must be tested as part of the measurement chain, not only as an electronic assembly.
Quality verification process:
- Part identification
- Confirm model: 330980-71-CN
- Verify option code
- Inspect product markings
- Hardware inspection
- Check front panel condition
- Inspect rack connector contacts
- Review PCB condition
- Functional testing
- Simulate compatible vibration input
- Verify measurement response
- Confirm alarm indication behavior
- Final inspection
- Document test results
- Assign stock condition
- Apply ESD-safe packaging
The Veteran’s Tech Trap Guide
⚠️ PRO TIP: Never troubleshoot vibration data without checking the complete signal path.
A defective probe, damaged extension cable, or incorrect probe gap can produce the same symptoms as a failed monitor module.
⚠️ Match the full ordering code.
Bently Nevada 3300 modules contain configuration variations. The last characters of the part number can determine compatibility.
⚠️ Verify protection settings after replacement.
Restoring the module does not automatically confirm correct Alert and Danger thresholds. Review the original machinery protection settings before returning equipment to service.
Dynamic FAQ
Q1: What is the Bently Nevada 330980-71-CN used for?
The 330980-71-CN is a Bently Nevada 3300/80 vibration monitoring module used for measuring rotating machinery vibration signals within a 3300 protection system.
Q2: What type of equipment uses the 3300/80 vibration monitor?
Typical applications include compressors, turbines, pumps, and other critical rotating machines requiring continuous vibration monitoring.
Q3: What does the CN suffix mean on 330980-71-CN?
The CN suffix represents a specific configuration option in the Bently Nevada ordering system. Engineers should compare the complete part number before selecting a replacement.
Q4: Can this module replace another 3300 vibration monitor?
Only when the rack configuration, measurement function, option code, and application requirements are confirmed to match.
Q5: Are refurbished Bently Nevada 330980-71-CN modules tested?
Qualified automation suppliers generally perform visual inspection, electrical checks, and functional testing before supplying refurbished machinery protection modules.
Q6: What information should be provided when requesting this module?
Recommended information:
- Complete part number
- Existing 3300 rack model
- Probe type
- Equipment application
- Required condition: New Surplus or Refurbished
Q7: What warranty is available for this replacement module?
Warranty terms depend on supplier policy, product condition, and testing scope. Buyers should confirm warranty duration and inspection documentation before purchase.
