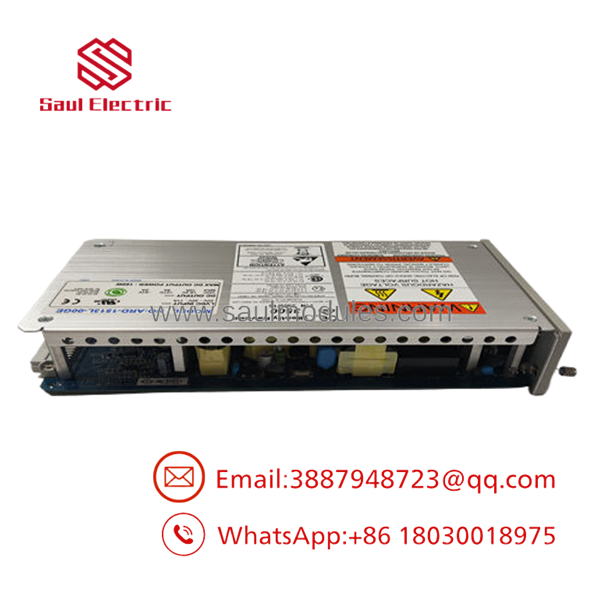

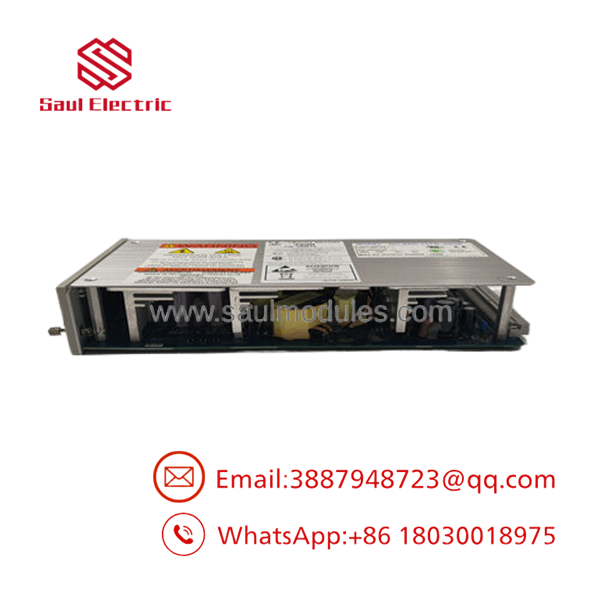

Bently Nevada 3500/15 114M5330-01 DC Power Supply Module

Description

Product Introduction

The Bently Nevada 3500/15 114M5330-01 is the Low Voltage DC Power Supply Module used in the 3500 Machinery Protection System. Installed on the left side of the rack together with its matching Power Input Module (PIM), it converts a 20–30 VDC input into the regulated voltages required by all installed monitoring and protection modules.

In our field experience, the power supply is often overlooked because it rarely fails. When it does, however, the entire rack can become unavailable. One advantage of the 3500/15 architecture is redundant operation. Two power supplies can be installed in the same rack, allowing one unit to continue powering the system if the primary supply is removed or fails.

Key Technical Specifications

3500/15 114M5330-01

3500/15 114M5330-01

Application Scenarios & The “Trench” Experience

The rack suddenly went dark.

Every monitor disappeared.

Operators immediately assumed multiple monitor modules had failed simultaneously.

That almost never happens.

After checking the incoming 24 VDC supply, we found the real problem—a failed 3500/15 Low Voltage DC Power Supply. Replacing a single module restored every monitor in the rack within minutes.

Power supplies don’t generate many service calls.

But when they fail, everything downstream stops.

Typical Applications

Power Generation – Steam and Gas Turbines –
Supplies regulated operating power for complete 3500 protection racks monitoring critical rotating equipment.

Oil & Gas – Compressor Protection Systems –
Provides stable DC power for vibration, thrust, and Keyphasor monitoring modules operating continuously.

Petrochemical Plants – API 670 Protection Systems –
Maintains uninterrupted operation of machinery protection racks installed on pumps, compressors, and turbines.

Pipeline Stations – Remote Compressor Sites –
Operates from existing 24 VDC station power without requiring an external AC source.

Industrial Manufacturing – Critical Rotating Equipment –
Powers vibration monitoring systems protecting fans, blowers, motors, and large process pumps.

Field Replacement Example

During a refinery turnaround, a maintenance team energized a newly installed 3500 rack but observed no module startup.

Input voltage measured correctly.

Backplane connections were intact.

Replacing the 114M5330-01 power supply restored normal rack operation immediately. No monitor modules required replacement, and commissioning resumed the same day.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Bently Nevada 3500 racks.

1. Inbound Inspection

• Verify OEM labels, serial numbers, and date codes.
• Inspect power connectors and backplane interface.
• Check housing for thermal discoloration or physical damage.

2. Live Rack Testing

• Install the module in a functioning 3500 rack.
• Verify successful rack startup.
• Confirm stable output under operating load.
• Test redundant supply switchover where applicable.

3. Electrical Parameter Checks

• Verify DC input range.
• Measure regulated output voltages.
• Confirm startup current and operating stability.
• Perform load testing under continuous operation.

4. Firmware / Hardware Verification

• Verify hardware revision.
• Confirm compatibility with installed Power Input Module.
• Record inspection results before shipment.

5. Final QC & Anti-Static Packaging

• Complete functional verification.
• Package in ESD-safe materials.
• Protect connectors against shipping damage.
• Archive test records for traceability.

The Veteran’s Tech Trap Guide

⚠️ Don’t replace only the power supply without checking the Power Input Module (PIM).
A failed PIM can produce the same symptoms as a defective power supply.

❗ Verify the input voltage first. Trust me.
Many “failed” power supplies are actually receiving less than the required 20 VDC because of loose terminals or aging station batteries.

⚠️ Never mix incompatible power supply generations.
The Universal AC Power Supply and its matching PIM are not compatible with certain legacy AC Power Input Modules. Always verify the complete power supply and PIM combination before installation.

❗ Take advantage of redundancy.
If the rack contains dual power supplies, replacing one module can usually be completed without interrupting rack operation. Removing the only installed supply, however, immediately powers down the entire system.

⚠️ Match the spare to the exact part number.
The 114M5330-01 is the Low Voltage DC Power Supply. It is not interchangeable with the High Voltage DC or Universal AC versions.

Frequently Asked Questions (FAQ)

Q1: What is the function of the 114M5330-01?

A: It converts a 20–30 VDC input into the regulated voltages required to operate every module installed in a Bently Nevada 3500 rack.

Q2: Can a 3500 rack use two power supplies?

A: Yes. The 3500/15 supports redundant operation with two installed power supplies. Under normal conditions, the lower module operates as the primary supply while the upper module serves as the backup.

Q3: Is the power supply hot-swappable?

A: Yes, provided a second redundant power supply is installed and operating. If only one supply is present, removing it will shut down the rack.

Q4: What input voltage does the 114M5330-01 require?

A: This model is designed for 20–30 VDC input and must be paired with the corresponding Low Voltage DC Power Input Module.

Q5: Is this module interchangeable with the Universal AC version?

A: No. Each 3500/15 power supply variant is designed for a specific input type. Verify both the power supply module and its matching Power Input Module before replacement.

Q6: Why are surplus power supplies less expensive than buying directly from the OEM?

A: Most surplus inventory comes from plant upgrades, cancelled projects, or unused maintenance stock. The lower price reflects sourcing rather than reduced functionality. Functional load testing, traceability, and inspection records are better indicators of quality than purchase channel alone.

Q7: What warranty is typically available?

A: Most reputable industrial automation suppliers provide a 12-month warranty on professionally tested surplus or refurbished Bently Nevada 3500/15 114M5330-01 power supplies. Before purchasing, request the load-test report, serial-number verification, and inspection documentation.
