Product Introduction & Engineering Value
The moment a rotating machine trips, the most valuable information is often the few seconds before the event. The Bently Nevada 3500/22M 138607-01 Transient Data Interface Module captures that critical machinery behavior and transfers the information to diagnostic platforms for analysis.
The 3500/22M combines the functions of a 3500/20 Rack Interface Module with additional transient data collection capability. Installed in the dedicated rack interface position, it communicates with M-Series monitoring modules and passes vibration, waveform, and status information through an Ethernet connection.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 3500/22M |
| Part Number | 138607-01 |
| Product Type | Standard Transient Data Interface Module |
| System Platform | 3500 Machinery Protection System |
| Primary Function | Rack communication and transient data collection |
| Installation Position | Slot adjacent to rack power supplies |
| Communication Interface | Ethernet (10Base-T / 100Base-TX) |
| Host Software Compatibility | System 1 Condition Monitoring Software, 3500 Configuration Software |
| Data Collection | Steady-state and transient waveform data |
| Compatible Modules | 3500 M-Series monitor modules |
| Weight | Approximately 0.82 kg |
| Replacement Reference | Later replacement options may include 288055-01 depending on configuration |
| (turn0search0turn0search1) |
Field Application & The “Trench” Experience
A compressor station maintenance team noticed a recurring issue after several turbine startups: protection alarms were recorded locally, but engineers could not retrieve complete transient waveform data from the diagnostic workstation.
The 3500 rack itself was operating, and individual monitor channels were healthy. Investigation identified the aging 3500/22M 138607-01 as the communication bottleneck. After replacement, transient captures from startup acceleration and shutdown coast-down sequences were restored, allowing the reliability team to continue root-cause analysis.
Typical application scenarios:
- Gas turbine startup vibration analysis
- Centrifugal compressor trip investigation
- Steam turbine bearing condition diagnostics
Transparency SOP: QA & Testing
Each New Surplus or Refurbished 138607-01 module is evaluated through a structured inspection process:
- Confirm the complete part number and hardware identification.
- Inspect front panel condition, connectors, and rack interface contacts.
- Install the module in a compatible 3500 rack environment.
- Verify rack recognition and communication status.
- Test Ethernet communication with configuration or diagnostic software.
- Record test results and package using ESD protection.

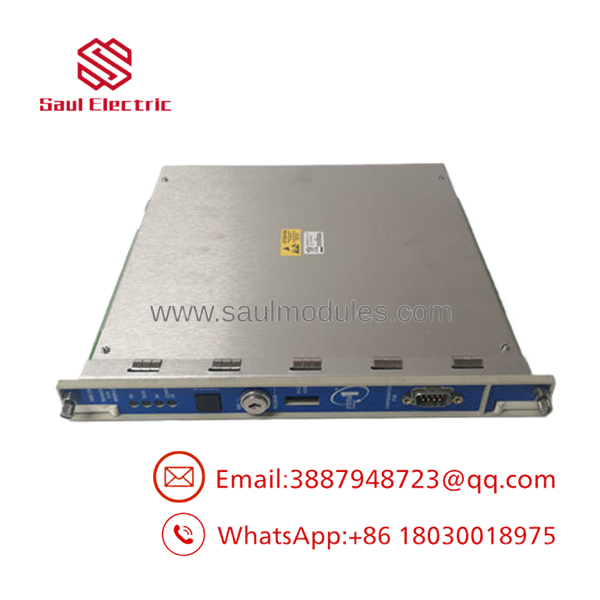

3500/22M 138607-01

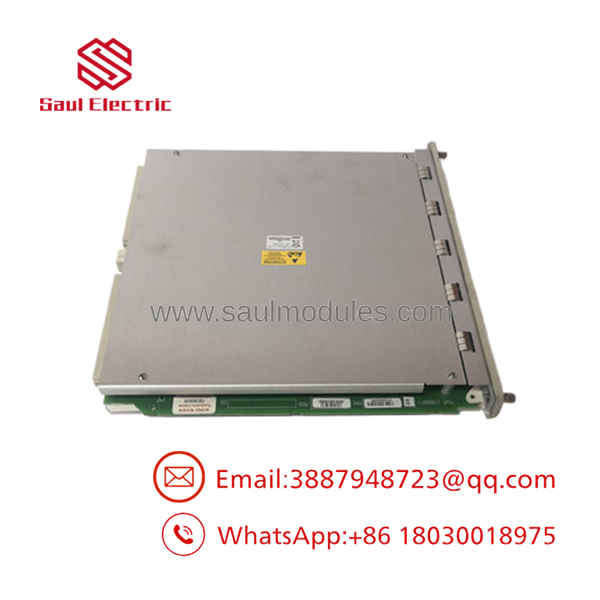

3500/22M 138607-01
The Veteran’s Tech Trap Guide
⚠️ Do Not Assume It Is a Direct Replacement for Every Rack
The 3500/22M provides additional capability compared with older rack interface modules. When upgrading from a 3500/20 RIM, verify installed monitor module compatibility and firmware requirements before installation.
⚠️ Network Settings Are Easy to Overlook
A healthy TDI can still appear offline because of incorrect Ethernet configuration, communication addressing, or plant network restrictions.
PRO TIP:
Always save the existing 3500 rack configuration before replacement. The hardware swap is usually straightforward, but restoring communication settings can become time-consuming without a backup.
Dynamic FAQ
Q1. What is the Bently Nevada 3500/22M 138607-01 used for?
The module provides communication between a 3500 monitoring rack and compatible software while collecting steady-state and transient machinery data.
Q2. Is the 3500/22M a protection module?
No. The protection logic remains within the installed 3500 monitor modules. The TDI handles communication and data collection functions.
Q3. What software works with the 138607-01?
It is designed for use with compatible Bently Nevada monitoring software, including System 1 Condition Monitoring and Diagnostic software and 3500 configuration tools.
Q4. Can the 138607-01 replace a 3500/20 Rack Interface Module?
The 3500/22M can provide expanded functionality compared with the 3500/20, but compatibility should be verified because some older 3500 monitor modules may require review before upgrading.
Q5. Are refurbished 138607-01 modules tested before shipment?
Yes. Proper refurbishment includes inspection, rack communication verification, Ethernet testing, and functional checks before shipment.
Q6. Is New Surplus stock genuine OEM inventory?
New Surplus units are unused industrial inventory. Product condition, inspection records, and warranty terms should be confirmed before purchase.
