Bently Nevada 3500/22M Transient Data Interface (TDI) Module

Description

Product Introduction

The Bently Nevada 3500/22M Transient Data Interface (TDI) module is the central communication nerve center for the 3500 Machinery Protection System. Occupying Slot 1 (next to the power supplies) in a standard 3500 rack, the TDI acts as the bridge between the local monitoring hardware and external diagnostic platforms such as Bently Nevada System 1 optimization and diagnostic software.

Unlike the legacy 3500/20 Rack Interface Module (RIM) which it replaces, the 3500/22M TDI combines RIM network functionality with built-in transient data collection capability. It continuously collects steady-state machinery dynamic data (vibration spectrums, orbits, trends) as well as high-speed transient data during machine startups, coastdowns, and trip events without interfering with the rack’s primary machinery protection loops.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: A major steam turbine trips unexpectedly at a power plant during peak load. Plant engineers need to know immediately whether the trip was caused by an actual rotor instability or a false instrument glitch. Because the 3500 rack was equipped with a 3500/22M TDI connected to System 1, machinery diagnostics engineers can instantly pull high-resolution 10 ms transient vibration waveforms, orbital plots, and Keyphasor phase angle trends leading right up to the exact millisecond of the trip. The TDI’s high-speed data buffer captures the root cause—a severe oil whirl instability—allowing engineers to make informed decisions before attempting a re-roll.

• Critical Asset Diagnostic Networks – Steam Turbines & Large Hydro Generators – Feeds continuous multi-channel dynamic vibration data into System 1 software for predictive health monitoring.
• Refinery Startup & Coastdown Tracking – Ethylene Compressor Trains – Automatically captures high-density transient vibration spectrums as turbines pass through critical rotor resonance speeds.
• Legacy System Modernization – Upgrading older 3500 Racks – Directly replaces legacy 3500/20 RIM modules to enable modern Ethernet networking and System 1 connectivity.

Transparency SOP: Quality Assurance & Testing

We test every 3500/22M TDI module on calibrated 3500 test chassis before shipment:

1. Visual & Hardware Audit: Inspect faceplate locking levers, edge connectors, rear I/O board pin alignments, and DIP switch settings.
2. Backplane & Power-On Diagnostics: Seat card in Slot 1 of a test rack; verify OK LED status, card self-test completion, and backplane communication with adjacent monitor modules.
3. Ethernet & Serial Link Verification: Establish TCP/IP connection via 138607-01 rear I/O port; test data ping, rack configuration upload/download using Bently Nevada 3500 Configuration Software.
4. Transient Data Streaming Test: Inject multi-channel dynamic AC signal waveforms to confirm real-time data buffering and System 1 streaming without dropped frames.
5. Final Anti-Static Packaging: Enclose in static-shielding ESD bags and ship inside custom foam-lined transit cartons.

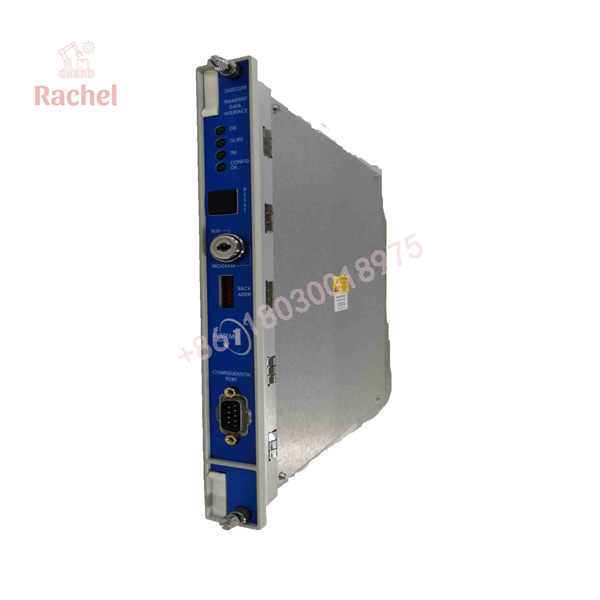

3500/22M

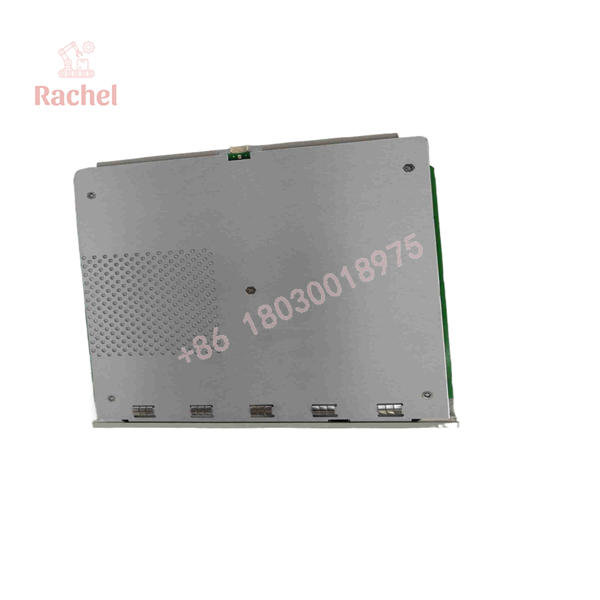

3500/22M

The Veteran’s Tech Trap Guide

• ⚠️ Mandatory Slot 1 Position: The 3500/22M TDI card MUST be installed in Slot 1 of the 3500 rack (the first full-height slot to the right of the power supply modules). Placing the TDI in any other monitor slot (Slots 2 through 15) will prevent the rack from initializing.
• ❗ TDI vs. Legacy RIM (3500/20) Compatibility: The 3500/22M completely supersedes the legacy 3500/20 RIM. However, when replacing a 3500/20 with a 3500/22M, you MUST also swap out the rear I/O module to the 3500/22M rear I/O card (e.g., 138607-01) and update the 3500 rack configuration software firmware.
• ⚠️ Protection Independence: The 3500/22M handles software communications and transient data logging, but it is NOT required for the 3500 rack’s automatic protection trip logic. If the TDI fails or disconnects from the network, the individual monitor cards (e.g., 3500/42M, 3500/32 relay cards) continue executing machine trips independently.
• ❗ Keyphasor Connection Dependency: To collect phase-accurate transient data (Bode/Polar plots) in System 1, the 3500/22M TDI relies on Keyphasor signals supplied by 3500/25 or 3500/22 Keyphasor modules installed in the rack. Ensure Keyphasor channels are correctly assigned in the rack configuration.

Frequently Asked Questions (FAQ)

Q: What is the main difference between the 3500/20 RIM and the 3500/22M TDI?

A: The 3500/20 RIM provided basic rack configuration and steady-state data transfer. The 3500/22M TDI integrates high-speed transient data acquisition (waveforms, orbits, spectral bands) directly within the card, eliminating the need for external transient data processing hardware.

Q: What rear I/O module is commonly paired with the 3500/22M?

A: The most common rear module is the 138607-01, which provides standard 10/100Base-T Ethernet RJ45 network connectivity and RS232/RS422 serial ports.

Q: Can I configure the 3500 rack through the front panel of the 3500/22M?

A: Yes. The 3500/22M front panel features an RS232 serial configuration port, as well as Ethernet connectivity through its rear I/O card, allowing connection via Bently Nevada 3500 Rack Configuration Software.

Q: Does losing network connectivity on the 3500/22M compromise machine safety?

A: No. Machinery protection (relay trips and warning alarms) is handled autonomously by individual monitor cards in the rack. A failure or network disconnect on the 3500/22M affects data logging and System 1 visibility only, not safety trips.
